In the automotive lighting landscape, the optical quality and functional reliability of lighting components are non-negotiable requirements. Modern lighting assemblies incorporate complex geometries, composite materials, and multilayer metal coatings that require micrometer precision machining. In this context, demetalizing emerges as a critical process to ensure the optical and functional performance of automotive headlamps.

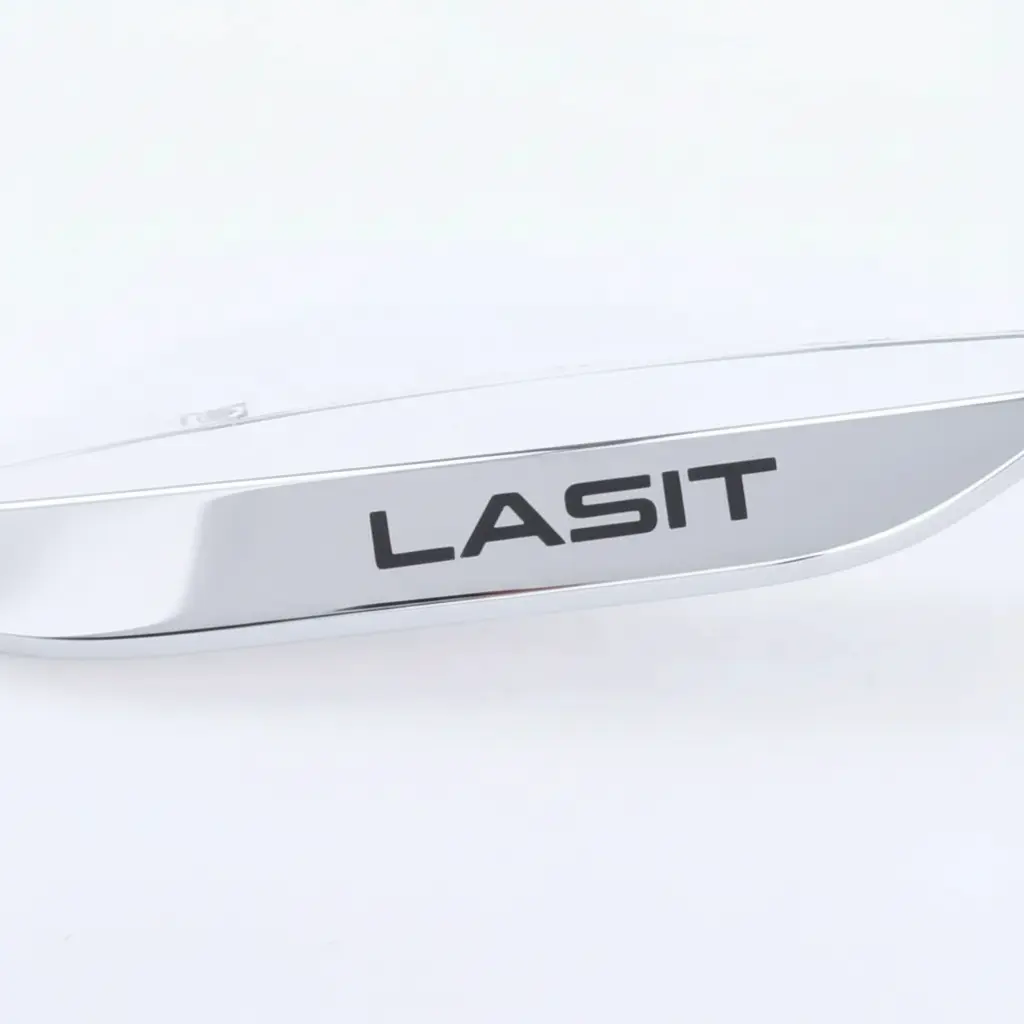

Demetalizing is the selective removal of metallic layers from polymeric component surfaces, typically from reflectors and light guides made of polycarbonate or PMMA. Unlike decoating-which removes paints, organic coatings, or protective lacquers-demetalizing acts on true metal depositions, usually vacuum-evaporated aluminum with thicknesses typically between 80 and 150 nanometers, although in some automotive PVD processes they can reach over 200 nanometers. This distinction is not just terminological: the metallic nature of the layer requires completely different laser parameters, wavelengths, and process strategies than the removal of organic coatings.
The technical reasons behind demetalizing
The application of demetalizing in automotive lighting meets specific functional needs. Headlight assembly reflectors are metallized to maximize light reflection, but there are specific areas where the presence of metal is counterproductive or technically incompatible with the final optical design.
Mechanical mating surfaces between components represent the first use case: during assembly, the metalized reflector must be ultrasonically welded or bonded to other elements of the optical assembly. The presence of the metallic layer in these areas compromises structural adhesion and generates weak points in the final assembly. Demetalizing allows aluminum to be selectively removed from the joint areas, ensuring a clean polymer-on-polymer interface.
A second scenario concerns optical masking zones: some designs include deliberately nonreflective areas to control light distribution, avoid unwanted reflections, or create specific aesthetic effects. In these cases, demetalizing allows the boundaries between reflective and nonreflective areas to be defined with micrometric precision, with tolerances impossible to achieve with physical masking during the metallization phase.
Finally, there are applications related to electrical functionalization: in some advanced optical assemblies, certain metal areas must be electrically isolated to prevent interference with sensors, LED drivers or other electronic components integrated into the lighting system.
Laser technologies for demetalizing: MOPA and picosecond
The physics of the ablation process determines the choice of laser source. For demetalizing on automotive lighting components, the technologies of choice are MOPA (Master Oscillator Power Amplifier) fiber lasers and picosecond lasers.
MOPA lasers typically operate in the nanosecond regime (10-200 ns) and offer complete control over pulse duration, repetition rate, and pulse shape. This parametric flexibility allows the ablation process to be optimized according to metal thickness, polymer substrate type, and required surface quality. Energy is deposited in a controlled manner, vaporizing the aluminum layer without thermally damaging the underlying polymer. The ability to modulate the pulse shape reduces residual thermal effects and minimizes Heat Affected Zone (HAZ).
Picosecond (1-10 ps) lasers represent the evolution toward the “cold” ablation regime. With pulses on the order of trillionths of a second, laser-matter interaction occurs on time scales smaller than thermal scattering. The result is ablation with negligible thermal impact on the substrate: the metal is removed by photomechanics, with direct sublimation and virtually no heat transfer to the polymer. This approach is particularly advantageous when working on heat-sensitive polycarbonates or when dimensional tolerances are extremely tight.
The choice between MOPA and picosecond depends on the trade-off between required quality, process speed, and cost. Picosecond lasers provide the highest quality and absence of significant damage, but with lower ablation rates. Well-optimized MOPAs offer an excellent quality-to-productivity ratio for most automotive applications, reserving picoseconds for the most critical cases.
Large format handling: 3-axis heads and hybrid systems
One of the technical challenges of demetalizing on automotive components is to manage extensive machining surfaces while maintaining accuracy and trace continuity. Automotive headlight reflectors can have areas to be demetalized that extend over fields of up to several hundred millimeters, well beyond the scanning capabilities of a standard galvanometer head (typically 100×100 or 200×200 mm).
The traditional approach would involve mechanical movement of the component or laser head to cover the entire area, resulting in coupling issues between successive passes. Each interruption and restart of the path generates potential visual defects: overlaps, discontinuities or intensity variations in ablation.
To overcome this limitation, the industry mainly adopts two technological solutions. 3-axis heads use prescan optics with extended working ranges, keeping the laser head completely fixed. These systems employ movable optical elements that deflect the laser beam over significantly larger areas than conventional galvanometer scanners, without mechanical movement of the head, providing high positioning speeds and micrometric repeatability.
Alternatively, hybrid 3-axis/XY head systems are used, combining a scanning head with controlled motion on Cartesian axes. This configuration is particularly popular for larger format surfaces, where a purely optical system would reach limits in distortion or resolution. The combination of galvanometric scanning and high-precision mechanical motion allows the entire work area to be covered while maintaining uniform quality.
The critical advantage in demetalizing is the elimination or dramatic reduction of mating points between different scan zones. When the design requires metal removal along continuous geometries-for example, extended curved paths or free-form areas-these systems allow the entire process to be completed while minimizing interruptions. The result is a perfectly uniform path with no visible discontinuities or local variations in quality.
In addition, the high positioning accuracy ensures absolute accuracy even on complex three-dimensional geometries. This is especially relevant when demetalizing must follow curved surfaces or 3D contours typical of modern automotive reflectors.
Real-time power metering for process stability
The consistency of the ablation process over time is a fundamental requirement for automotive manufacturing. Variations in laser power, even small ones, result in process defects: incomplete ablation, substrate damage, or unacceptable cosmetic changes on finished components.
Continuous power metering systems integrate real-time power sensors into the optical path, constantly monitoring the energy actually delivered by the laser. These systems measure average power and, in more advanced systems, can go as far as single-pulse sampling, generating immediate feedback to the laser controller.
There are many causes of laser power variation: natural degradation of the source over time, thermal fluctuations, power supply variations, or contamination of the optics. Without active correction, these variations accumulate and compromise process quality.
An integrated power metering system enables automatic real-time compensation: the controller continuously compares the measured power with the desired setpoint and dynamically adjusts source parameters to keep ablation energy constant. This closed feedback ensures consistent results throughout the operating life of the machine, dramatically reducing waste and the need for manual recalibration.
In automotive demetalizing applications, where production batches can span hundreds of thousands of parts, continuous power metering is essential to ensure traceability and compliance with OEM quality standards. Power data are recorded for each component processed, generating a comprehensive history that facilitates analysis of any process drift and supports quality assurance procedures.
Operational differences between demetalizing and decoating
Although demetalizing and decoating share the goal of removing surface layers, the physical mechanisms and process parameters diverge significantly. In decoating, the laser removes paints, lacquers or organic coatings applied to the surface of the component. These materials typically have greater thicknesses (tens of micrometers), polymer composition and optical absorption than metals.
Organic coatings effectively absorb wavelengths in the visible and near-infrared, allowing ablation with standard fiber lasers. The removal process is by thermal decomposition of the coating, with progressive evaporation of the layers. The energies required are generally lower than with metallic demetalizing, and selectivity with respect to the substrate is less critical.
In demetalizing, however, the aluminum metal layer has nanometer thicknesses, high thermal conductivity, and high reflectivity at the laser wavelength (typically 1064 nm for fiber lasers). This requires higher energy densities and shorter pulses to overcome the ablation threshold before thermal conduction dissipates the energy into the substrate. The process window is narrower: insufficient energy leaves metal residue, excessive energy damages the polymer.
A further distinguishing feature is the final surface quality: in decoating, small roughness or surface variations are often tolerable. In demetalizing for automotive lighting, the treated area must exhibit controlled optical characteristics-in many cases it must remain transparent or otherwise not compromise the aesthetics of the final component. This imposes tighter tolerances and closer control of laser parameters.
Process integration and quality in the automotive industry
The implementation of laser demetalizing in automotive production lines requires integration with vision, automation and quality control systems. Components are precisely positioned using dedicated fixtures, often with optical references for automatic registration of the ablation pattern against the actual part geometry.
Pre-process vision systems verify the presence of the metallic coating and detect any metallization defects that could compromise demetalizing. Post-process vision systems check the completeness of the metal removal and the integrity of the polymer substrate, automatically discarding nonconforming components.
Complete process traceability-with records of laser parameters, effective power, cycle times and visual inspection results-ensures compliance with IATF 16949 standards and enables statistical analysis for continuous improvement. Process data are correlated with finished component performance, enabling predictive optimization and variability reduction.
Technology outlook and future developments
The evolution of demetalizing in automotive lighting is proceeding toward ever-higher process speeds and increasing operational flexibility. The adoption of
Integration with Digital Twin technologies will enable complete process simulation prior to physical processing, reducing setup time and minimizing waste during production start-up. The convergence of laser demetalizing and other finishing technologies (plasma, chemical assisted ablation) will open possibilities for optimized hybrid processes.
In the context of the transition to all-LED automotive lighting and, prospectively, to adaptive and communicative lighting systems, demetalizing will maintain a central role. Optical architectures will become increasingly complex, with segmented light guides, functionalized optical surfaces, and integration of electronic elements-all scenarios where selective metal removal with micrometer precision is an irreplaceable technological requirement.
