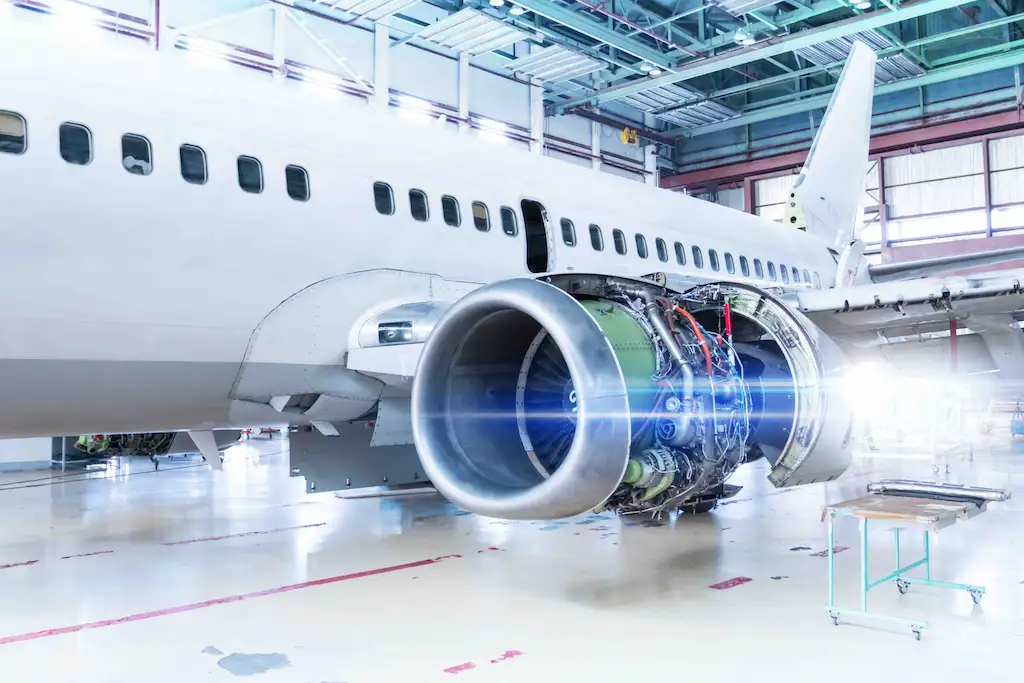

The aerospace industry operates under safety and quality standards that do not allow for compromise. Every component installed on an aircraft must be traceable throughout its entire lifecycle, from production to maintenance through any overhaul. In this scenario, laser marking represents much more than a simple identification operation-it is a key tool for ensuring regulatory compliance and operational safety.
The international aerospace-specific AS9100 standard and traceability requirements established by the U.S. Department of Defense through MIL-STD-130 define stringent parameters for the permanent identification of parts. The Federal Aviation Administration (FAA) enforces and verifies compliance with these standards through its aviation production and maintenance regulations, ensuring that every part intended for civil and commercial aviation is uniquely traceable. Laser technology has emerged as the most reliable solution to meet these requirements, offering permanent, legible markings that can withstand the harshest operating conditions.
Normative Standards: AS9100, MIL-STD-130 and Unique Identification

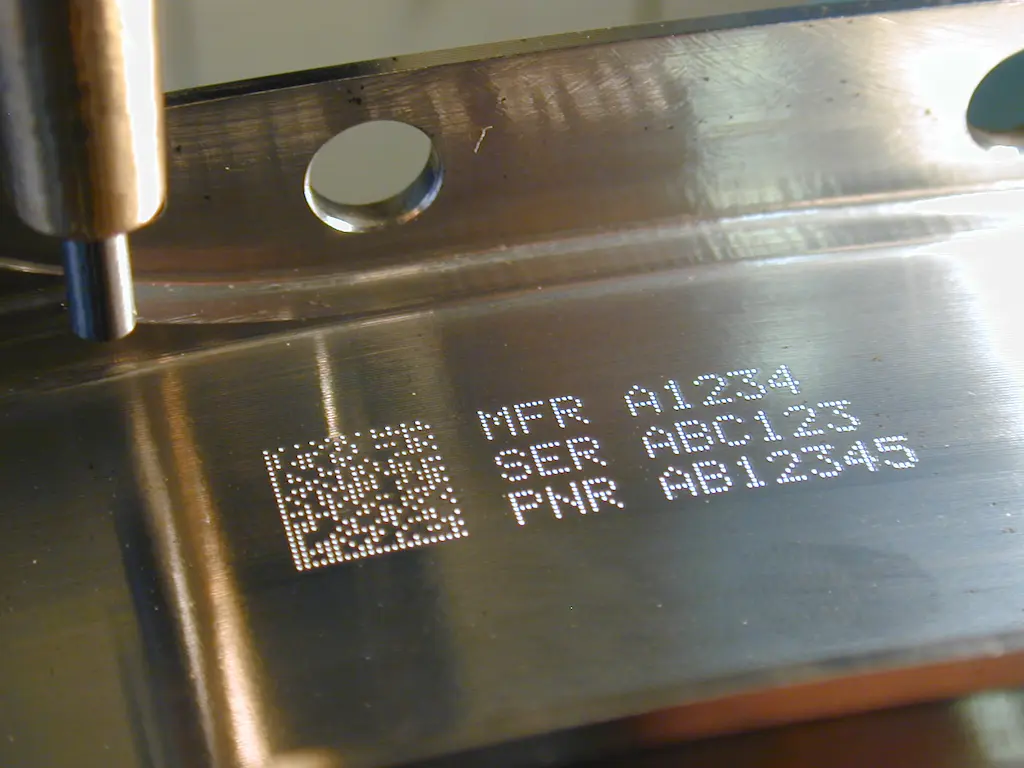

The AS9100 standard extends ISO 9001 requirements by introducing more stringent controls on quality management in aerospace. In the context of marking, AS9100 requires that identification processes ensure permanent legibility, resistance to extreme environmental conditions, and absence of alterations that could compromise the structural integrity of the component. These criteria exclude many traditional marking technologies, such as adhesive labels or mechanical stamping, which do not offer sufficient assurance of durability.

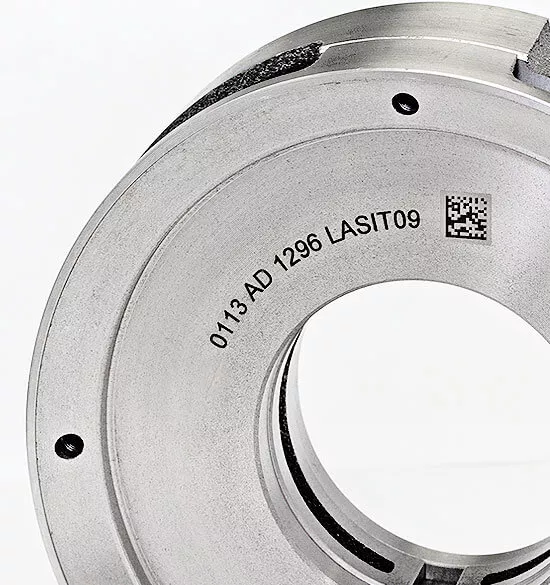

MIL-STD-130, a U.S. Department of Defense standard, introduces the concept of Unique Identification (UID), a unique identification system that accompanies each critical component throughout its operational life cycle. UID requires the marking of high-density two-dimensional codes, typically datamatrix conforming to Item Unique Identification (IUID) standards, that contain information structured according to defined formats. Laser marking is the prevailing technology for applying UID codes, ensuring the required permanence and readability even after decades of service under severe operating conditions.
The FAA, through its Part 21 and Part 145 regulations, verifies that manufacturing and maintenance processes meet these traceability standards. Permanent marking of identification codes, serial numbers and datamatrix is not an option, but a requirement that accompanies every part intended for civil aviation. Compliance is verified during inspections and audits, with a focus on the permanence of markings and the absence of process-induced structural alterations.
Lasers emerge as a preferred technology because they create markings embedded in the material itself, impossible to remove accidentally and able to withstand high temperatures, vibration, fluid exposure and repeated thermal cycling. Compliance with standards is therefore not a matter of simply affixing a code, but of choosing the correct technology and process parameters.
Laser Marking Technologies for Aerospace Materials
The aerospace industry uses a narrow but extremely demanding range of materials, selected for their mechanical, thermal and corrosion resistance properties. Titanium, aircraft aluminum alloys, high-strength stainless steels, and nickel-based superalloys make up most of the substrates to be marked. Each material requires a specific approach to achieve compliant markings without compromising its structural characteristics.
Annealing (laser annealing) represents the most conservative technique and is particularly suitable for components subjected to high mechanical stresses. The process involves localized and controlled heating of the material, which generates a permanent color change without removal of matter. This feature is critical for turbine blades, drive shafts, and parts subject to cyclic fatigue, where even microscopic surface alterations could trigger cracks or reduce long-term strength. Laser annealing creates optimal visual contrast while maintaining the original surface finish and preserving any protective treatments. Standards such as ASTM F3001 provide specific guidelines for evaluating the impact of markings on critical aerospace components.
Engraving (deep engraving) finds application when greater wear resistance is needed or when operating conditions involve abrasion or frequent mechanical contact. The laser removes material by creating a groove of controlled depth, generally between 20 and 100 microns depending on the application. This technique is commonly used on aluminum structural components, critical hardware, and landing gear parts. The depth of the engraving must be carefully evaluated according to SAE specification AMS-STD-2175, which defines requirements for permanent markings on aerospace parts: too shallow would compromise the durability of the marking, too deep could create stress concentration points.

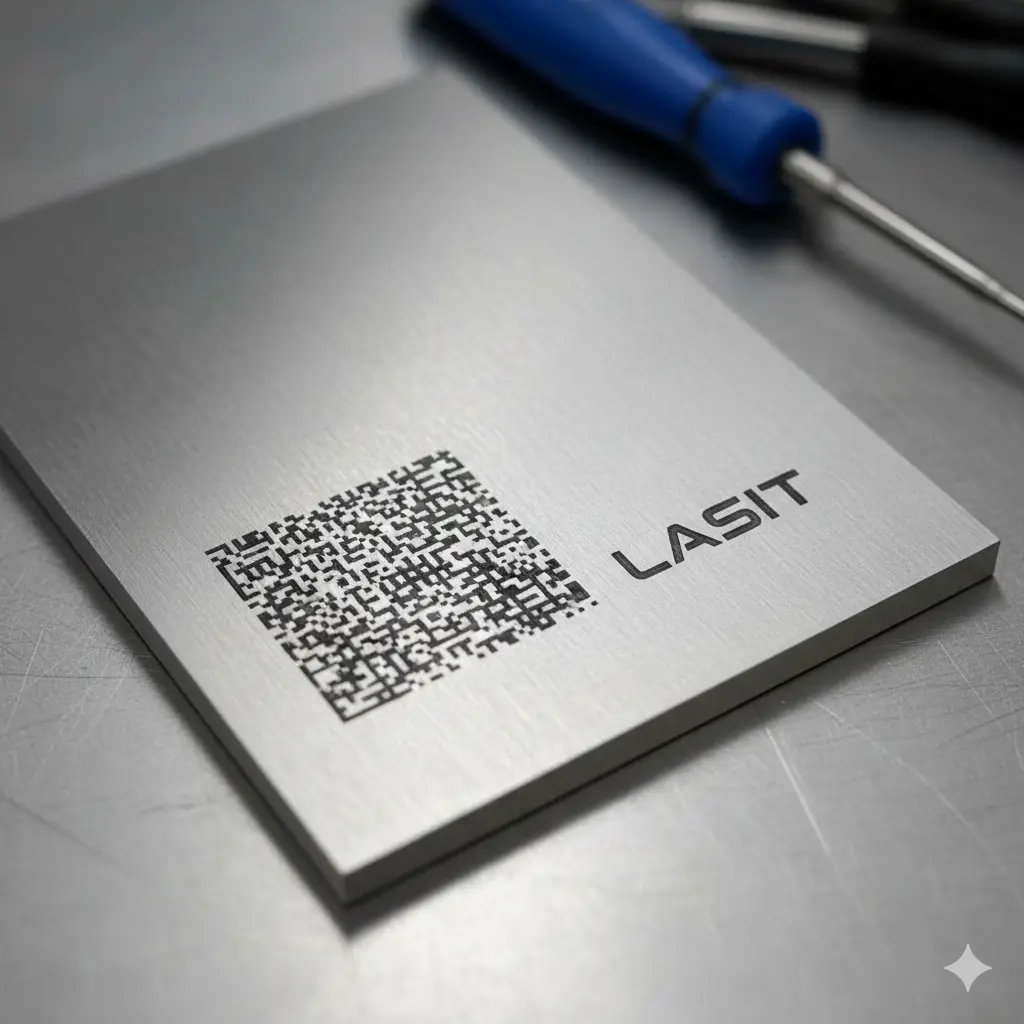

Etching (surface ablation) represents a compromise between annealing and engraving, removing a very thin layer of material to create visual contrast without significant alteration of surface geometry. This technique is particularly effective on surface-treated stainless steels and alloys, where controlled removal of a few microns generates high-contrast markings while maintaining the integrity of the underlying protective treatments.
Selection of the appropriate technique must consider not only the base material, but also the specific certification requirements of NADCAP (National Aerospace and Defense Contractors Accreditation Program), which establishes rigorous criteria for marking processes used on critical aerospace components.
Critical Applications: Turbine Blades and Structural Components

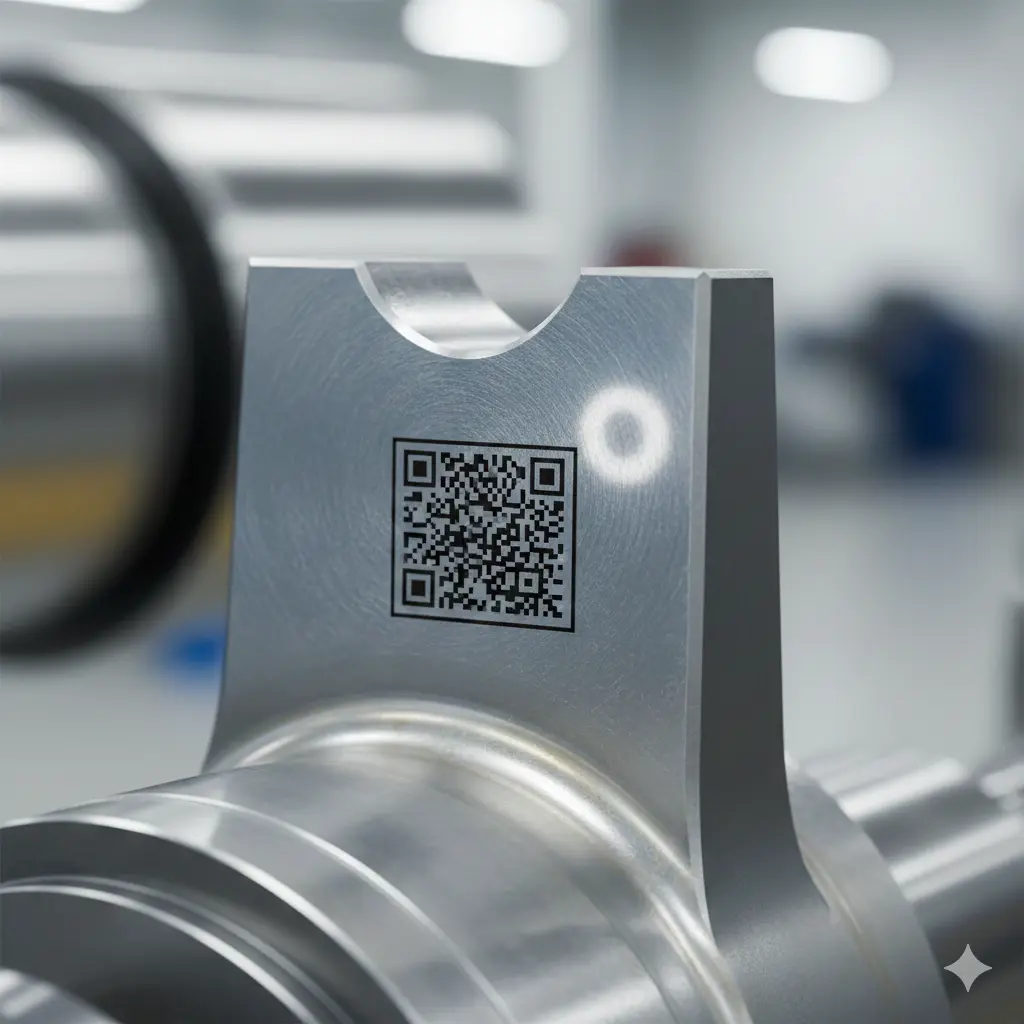

Turbine blades represent one of the most demanding examples of aerospace markings. These components operate at temperatures in excess of 1000°C, experience extreme centrifugal loads, and must ensure absolute reliability for tens of thousands of hours of operation. The marking must be placed in structurally non-critical areas, typically on the blade foot, and made with parameters that do not alter the metallurgy of the material. Annealing is the preferred technique, with process controls verifying the absence of microcracks, alterations in surface hardness or changes in roughness beyond acceptable limits defined by the engine manufacturer’s specifications.
Aircraft structural components, such as wing spars, ribs, and fuselage elements, present different challenges. The surfaces to be marked are often already treated with anodizing, protective paint, or anti-corrosion treatments. Laser marking must pass through these layers without compromising their effectiveness, creating a permanent identification that remains legible even after decades of service. In many cases, engraving with calibrated parameters is used to ensure sufficient depth without weakening critical sections, meeting MIL-STD-130 requirements for UID marking.
Avionic instrumentation requires an even different approach. Sensors, electronics, and on-board instrumentation use different materials, often with stringent thermal limitations. Picosecond UV lasers are gaining ground in this area, allowing very high resolution markings on small surfaces with minimal thermal inputs. The ability to mark QR codes or datamatrix codes smaller than one square millimeter, while maintaining the optical readability required for UID machine-reading systems, is particularly valued for identifying miniaturized components.
Quality Control and Compliance Validation
Simply performing the marking is not sufficient to ensure regulatory compliance. Aerospace standards require that every process be validated, documented and repeatable. This translates into strict quality control protocols that accompany each laser marking operation, often subject to NADCAP certification for suppliers of critical components.

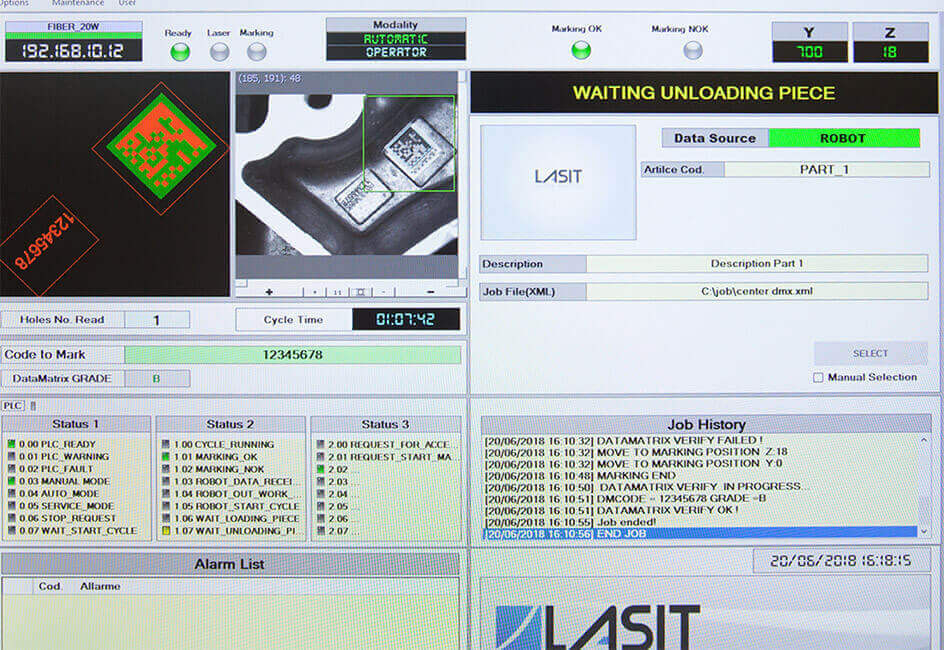

Process validation starts with defining the optimal laser parameters for each material and technique. Power, speed, frequency, number of passes, and focus position must be documented and maintained consistently according to procedures in accordance with SAE AS9102, the standard for first article inspection in aerospace. The marking systems used typically incorporate real-time monitoring capabilities that verify the proper execution of each marking, immediately reporting any deviations from the set parameters.
Post-marking quality control includes dimensional checks, optical readability tests according to ISO/IEC 15415 standards for datamatrix and two-dimensional codes, and metallographic inspections of process samples. For critical components, nondestructive testing such as liquid penetrant or magnetoscopy may be required to rule out laser process-induced microcracking. Complete documentation of each operation, with records of the parameters used and the checks performed, forms an integral part of the component’s technical file and is a basic requirement during AS9100 audits.
Integration with UID Tracking Systems.
Laser marking becomes truly effective when integrated into UID-compliant production and maintenance management information systems. Modern solutions combine physical marking with automatic code reading, allowing immediate entry of information into corporate databases and, when required, into government tracking systems such as the Department of Defense’s IUID Registry.
A laser-marked datamatrix on a turbine blade, when read by a machine vision system, can automatically trigger a record of installation, association with the target engine, and update of the maintenance log. The data format follows the specifications defined by MIL-STD-130, including information such as the Enterprise Identifier (EI), Serial Number (SN) and other unique identification elements.
This integration directly addresses AS9100 requirements on digital traceability, creating a conductive thread between the physical component and its documentary history. When recalls or investigations of field issues are needed, the ability to instantly trace back production lot, raw material suppliers, operators involved and controls performed is invaluable to safety management. The FAA, during compliance inspections, verifies precisely the effectiveness of these integrated traceability systems.
Future Perspectives and Regulatory Evolution
The aerospace industry is evolving toward increasingly stringent traceability requirements, with UID systems being extended to an increasing number of component categories. Laser marking will have to adapt to more complex codes containing greater amounts of information in ever smaller spaces. Ultrashort pulse laser technologies, such as picosecond and femtosecond, are emerging as a solution to mark codes with very high information density on minimal surfaces, while maintaining the optical readability required by ISO/IEC regulations and verification standards.
Integration with digital identification technologies, such as RFID and NFC, could complement but not replace visible laser marking, which retains the advantage of being readable without the need for electronic devices. The redundancy between permanent laser identification and electronic tags represents an additional layer of security in the management of critical components, which is particularly valued in the military and aerospace where the reliability of traceability systems is a priority.
The evolution of ASTM and SAE standards will continue to define acceptable parameters for new laser technologies, ensuring that technological innovation proceeds hand in hand with scientific validation and operational safety.
