Foggy Effect in Degating Laser for Automotive Lighting

Foggy effect in laser degating: how CFD design of intake systems solves opacities on transparent automotive lighting components.

In automotive lighting, where aesthetics and functionality come together in millimeter-precision optical components, every surface imperfection represents a potential quality defect. Among the most insidious challenges that process engineers face in the implementation of laser degating emerges the so-called “foggy effect”: an opaque halo, almost imperceptible to the naked eye in the initial stages, that can compromise the optical transparency and aesthetic appearance of transparent or translucent plastics. This seemingly marginal phenomenon actually hides a technical complexity that requires multidisciplinary expertise and advanced engineering solutions to be permanently resolved.

The Sneaky Nature of the Foggy Effect

The foggy effect manifests as a diffuse surface haze over the laser ablation zone, resulting from the recondensation of vapors and submicron particulates generated during the injection gate removal process. Unlike other more obvious process defects, this phenomenon exhibits characteristics that make it particularly problematic for quality departments:

foggy-effect-2 Foggy Effect in Degating Laser for Automotive Lighting
  • Temporal progressivity: the effect may intensify in the minutes after processing, when residual vapors continue to settle on surfaces that are still hot
  • Geometric variability: the intensity of opacification depends on the three-dimensional conformation of the component and the position of the gate relative to the optical cavities
  • Material dependence: polycarbonate, PMMA, and transparent polymer blends react differently to recondensation, with varying thresholds of criticality
  • Interference with subsequent treatments: any coating or painting may visually amplify the defect, making it evident only downstream in the production cycle

The main criticality lies in the fact that this halo compromises the very properties for which the components are produced: controlled light transmission and the premium aesthetic appearance demanded by the modern automotive industry.

Mechanisms of Formation: Physics of Ablation and Fluid Dynamics

Understanding the foggy effect requires an analysis of the physical phenomena that occur in the laser-matter interaction during degating. When the laser beam impinges on the polymeric gate material, energy is absorbed in a confined volume, generating a rapid phase transformation that produces:

cleaning-scheme-2 Foggy Effect in Degating Laser for Automotive Lighting
  1. High-temperature (300-600°C) polymeric vapors containing fragmented molecular chains
  2. Ultrafine particulate matter with typical size between 0.1 and 10 microns, consisting of carbonaceous residues and oligomers
  3. Convective shock waves propagating the ablated material in all directions

In the absence of an effective capture system, these ablation products follow trajectories determined by:

  • Natural convective flows generated by the thermal gradient between the processing area and the surrounding environment
  • Recoil pressure due to rapid expansion of vaporized material
  • Geometry of the component that can create areas of recirculation or stagnant airflow

The foggy effect occurs when particulates and vapors are transported to adjacent optical surfaces and settle there by thermal condensation or electrostatic deposition before the vacuum system can effectively capture them. The still-warm surfaces promote the formation of a thin but persistent molecular film, which alters the surface refractive index.

Traditional Approaches and Their Limitations

Early attempts to mitigate the foggy effect focused on empirical solutions that, while making partial improvements, did not solve the root of the problem:

Increasing the suction power: Simply increasing the volumetric flow rate of the aspirator generates turbulent flows that can paradoxically convey particulate matter toward critical areas, rather than away from them. The lack of controlled directionality makes this solution ineffective for complex geometries.

Nozzle-component spacing: moving the suction nozzle away from the processing area reduces the capture efficiency at the very point where the contaminant concentration is highest, displacing the problem without solving it.

Changes in laser parameters: reducing power or increasing scan speed to limit vapor generation compromises the efficiency of degating itself, with risks of incomplete gate removal or formation of molten polymer residue.

Post-processing surface treatments: subsequent chemical or mechanical cleaning processes introduce additional steps, increasing operational costs and risks of damage to sensitive optical surfaces.

These approaches reveal a fundamental limitation: they address the effects without addressing the fluid-dynamic causes that govern particulate transport in the processing zone.

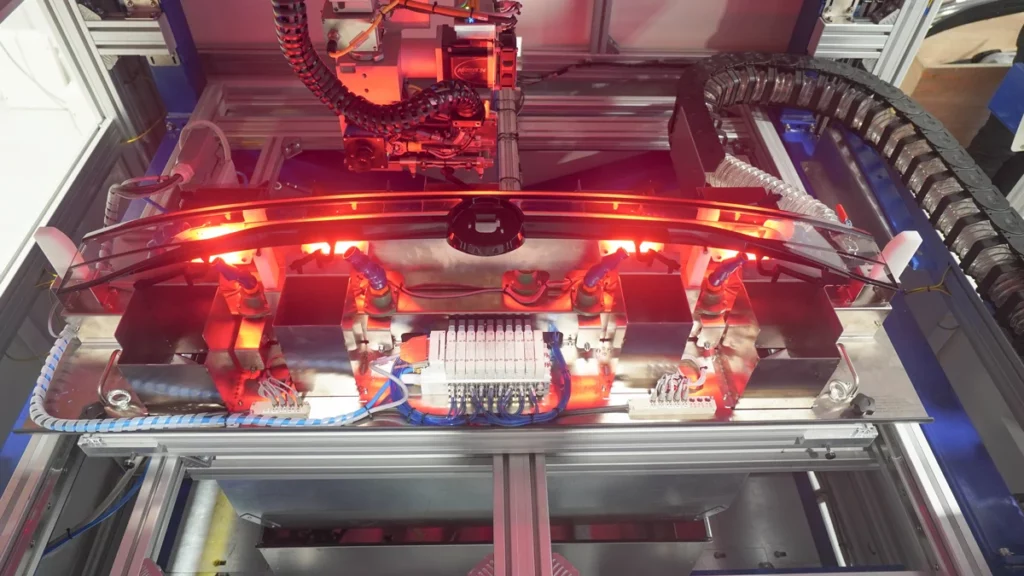

The Engineering Solution: CFD Design of Suction Systems

The most significant technological development in solving the foggy effect is the application of Computational Fluid Dynamics (CFD) to the design of suction systems integrated into laser degating stations. This approach transforms a problem traditionally addressed by empirical trial and error into a quantifiable and optimizable engineering process.

Fluid Dynamics Process Modeling

CFD simulation allows the air flows in the processing zone to be virtually represented, considering:

  • Actual component geometry imported from 3D CAD models, including all cavities, ribs, and undercuts that affect flow patterns
  • Suction nozzle characteristics: diameter, shape, angle and distance from the working surface
  • Position and orientation of the gate with respect to preferential airflow paths
  • Boundary conditions: intake flow rate, ambient temperature, presence of secondary air flows

CFD software numerically solves the Navier-Stokes equations governing fluid motion, producing three-dimensional maps of:

  • Flow velocity: identifying areas of stagnation where particulate matter tends to accumulate
  • Local pressure: highlighting gradients that can force vapors toward critical surfaces
  • Particle trajectories: simulating the actual path of contaminants from source to intake or component surfaces
Degating-Laser-Componenti-2-1024x576 Foggy Effect in Degating Laser for Automotive Lighting

Data-Driven Geometric Optimization

Simulation results enable the design of customized intake systems that provide efficient directional capture of particulate matter. Key elements of optimization include:

Nozzle configuration: simulation identifies optimal angles and distances to create a convergent laminar flow that intercepts ablation products before they can reach adjacent optical surfaces. In some cases, multi-nozzle configurations with coordinated flows are necessary for particularly complex geometries.

Intelligent articulated joints: for components with multiple degating zones at angularly different positions, controllable flexible joints allow dynamic reorientation of suction, always maintaining the optimal alignment identified by CFD.

Conveyance geometries: ducts and plenums with a studied shape reduce pressure losses and maintain high flow velocity right where it is needed, avoiding recirculation phenomena that could reintroduce contaminants into the work zone.

Integration with process parameters: the suction flow rate is synchronized with the laser parameters (power, speed), increasing it in the phases of maximum ablation and modulating it to avoid excessive cooling that could alter the quality of the cut.

Degating-Laser-Componenti-7-1024x585 Foggy Effect in Degating Laser for Automotive Lighting

Experimental Validation and Iteration

The CFD approach is not limited to the theoretical design phase. The methodology involves:

  1. Rapid prototyping of optimized intake components by 3D printing or CNC machining
  2. Process testing of real samples with optical inspection and light transmittance measurements to quantify improvement
  3. Iterative refinement: experimental results feed new simulations to converge toward the final configuration

This design cycle dramatically reduces setup time compared to traditional empirical approaches, turning weeks of trial and error into days of data-driven engineering.

Future Perspectives: Toward Applied Artificial Intelligence

Technological evolution in the field of laser degating for automotive lighting is moving toward increasingly sophisticated solutions that integrate CFD modeling with machine learning algorithms. Systems under development use neural networks trained on fluid-dynamic simulation datasets to predict optimal intake configurations in real time as operating conditions change, dynamically adapting flow rates and nozzle placement.

In parallel, integration with machine vision systems enables in-line monitoring of any traces of foggy effect and implementation of feedback control loops that automatically correct suction parameters, ensuring consistent quality even in the presence of process drifts or variations in the polymeric materials used.
