In the automotive industry, production efficiency and quality of the final product are parameters that do not allow for compromise. Among the most critical operations in the production of brake components, the cleaning of brake discs represents a crucial step that directly affects vehicle performance and safety. Traditionally entrusted to chemical or mechanical processes, this step is undergoing a radical transformation thanks to the introduction of high-power fiber laser technology.
Laser marking and engraving are well-established applications in the automotive industry, but the use of lasers for cleaning represents a significant evolution. It is not simply a matter of removing contaminants from the surface: laser cleaning of brake discs is a precision process that must ensure the complete removal of machining residues, protective oils and oxidation, without compromising the integrity of the underlying material.
Why brake discs require such thorough cleaning
Brake discs are components subjected to extreme mechanical and thermal stress during their life cycle. Their contact surface with the pads must have specific characteristics to ensure the best braking performance, minimize vibration and prolong component life.
During the manufacturing process, brake discs are processed through several stages of turning, grinding and finishing. These operations inevitably leave metallic residues, cutting oils, protective greases and an oxidized surface layer on the surface. The presence of these contaminants can seriously affect disc performance: it reduces the coefficient of friction with the pads, causes abnormal vibrations (so-called “brake noise”), and can even generate localized overheating points that lead to deformation.
Traditional cleaning methods-which include chemical washing with solvents, sandblasting or mechanical brushing-have several critical issues. Chemical processes require the use of aggressive substances that must be disposed of under stringent environmental regulations, incurring significant costs. Blasting, while effective, can alter the surface micro-thickness of the disc in an uncontrolled manner. Mechanical techniques also can leave residues embedded in the material or damage critical areas of the component.
How laser cleaning of brake discs works

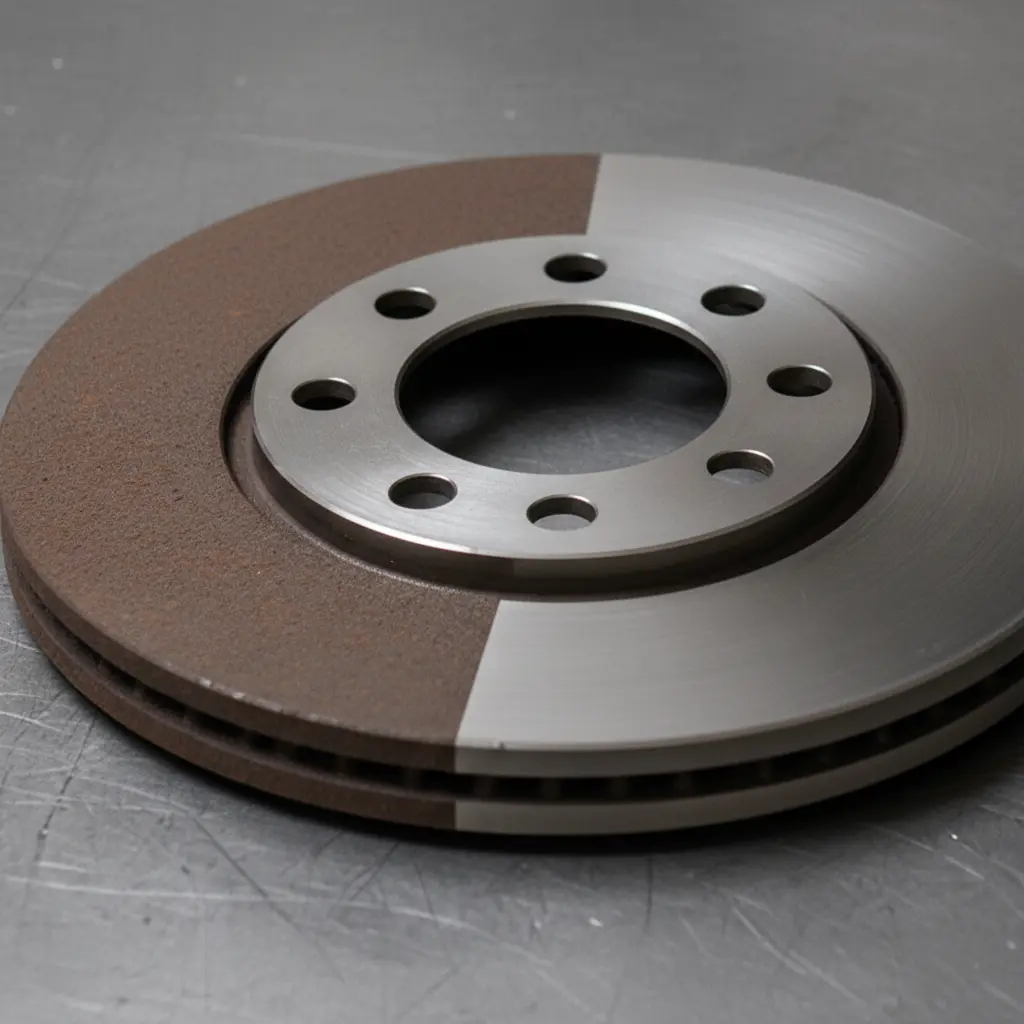

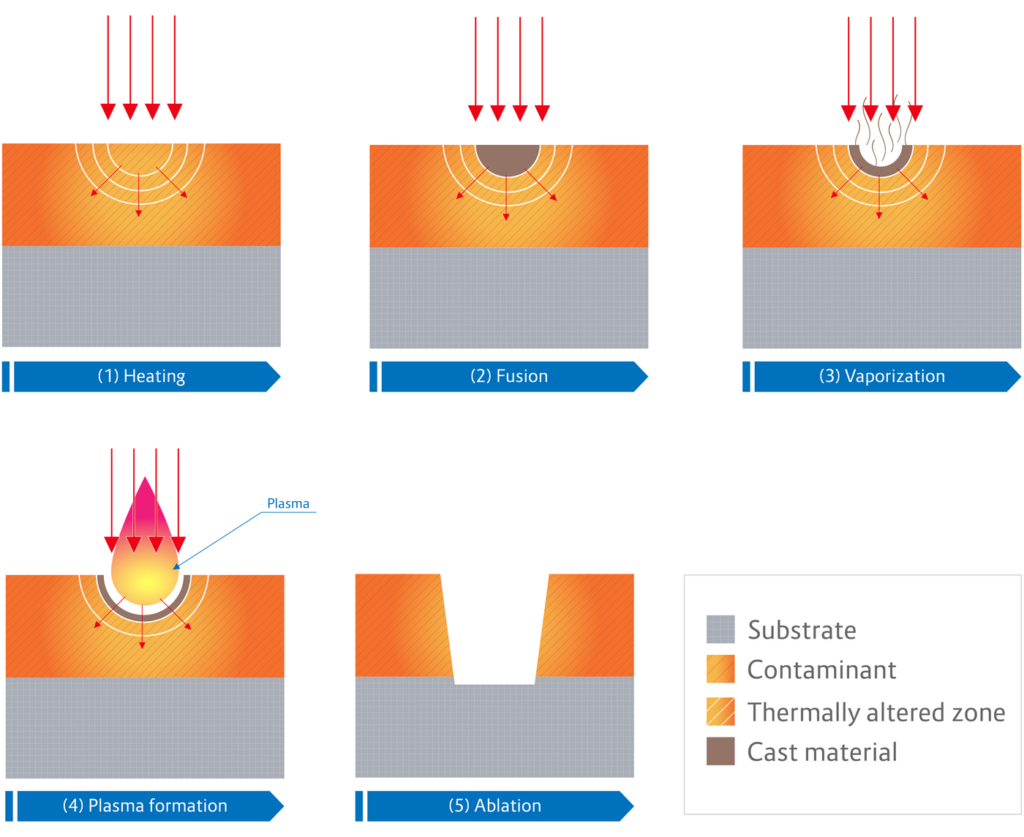

Laser cleaning technology uses high-power laser pulses to selectively remove contaminants from the metal surface through a controlled ablation process. When the laser beam strikes the surface of the disk, the energy is mainly absorbed by the contaminant layer-which has different optical characteristics than the underlying metal.
The contaminant rapidly heats up to temperatures that cause it to evaporate or sublimate instantaneously. This phenomenon, which occurs in fractions of a second, generates a micro-explosion that expels the material from the surface. The precision of the process is such that the metal substrate remains virtually unaffected: the laser can be calibrated to remove layers on the order of a few micrometers without affecting the base material.
Fiber lasers with powers ranging from 100W to 1000W are typically used to clean brake discs. The choice of power depends on several factors: the type of contaminant to be removed, the thickness of the layer, the required process speed and the material of the disc itself. Fiber lasers are the ideal solution for this application because of their high energy efficiency, beam quality and ability to work in pulse regimes optimized for cleaning.
Technical advantages over traditional methods
The adoption of laser cleaning in the manufacturing process of brake discs brings with it a number of significant technical advantages that go far beyond the simple removal of contaminants.
The selectivity of the process is perhaps the most significant benefit. The laser can be configured to act only on unwanted surface layers, completely preserving the metallurgical characteristics of the disk. This level of control is impossible to achieve with conventional chemical or mechanical methods. The resulting surface has a controlled and repeatable roughness, a key feature for ensuring consistent braking performance.
From a productivity point of view, laser systems offer competitive process speeds compared with conventional technologies, with the advantage that they can be integrated directly into the production line. No waiting time is required for drying or cooling, and the part can proceed immediately to the next step. The ability to fully automate the operation, typically through robotization, eliminates the variability associated with manual intervention and ensures uniform results throughout production.
Environmental impact is another element of increasing importance. Laser cleaning is a completely dry process: no chemical solvents are used, no effluent is produced for disposal, and the only by-product is metal dust that can be easily vacuumed and filtered. This aspect results in a significant reduction in disposal-related operating costs and an improvement in the overall sustainability of the production process.
Practical implementation: configurations and technical considerations
Integration of a laser cleaning system into the production of brake discs requires careful analysis of application specifications and optimal system configuration.
Most installations involve the use of 6-axis anthropomorphic robots that move the laser head along the surface of the disk. This configuration provides maximum flexibility, allowing all areas of the component to be reached-including more complex areas such as ventilation holes and side surfaces-while always maintaining the optimal angle of incidence of the laser beam.
For standard-sized brake discs, a 500-1000W laser allows cycle times in the range of 20-40 seconds per part, depending on the extent of the surface area to be treated. The choice of power should not be guided by speed alone: excessive power could cause excessive localized heating, while insufficient power would require multiple passes resulting in reduced efficiency.
Extraction of fumes generated during the process is a critical aspect of the plant. The removed contaminants are vaporized and must be vacuumed immediately to prevent them from redepositing on the newly cleaned surface. Modern filtration systems allow particles to be effectively retained, making the work environment safe and compliant with health and safety regulations.
One element that is often underestimated is the need for integrated quality control systems. Many modern installations include machine vision cameras that inspect the disk surface after cleaning, verifying the absence of residual contaminants and that the result meets quality standards. This approach makes it possible to intercept any anomalies in real time and ensure 100 percent compliant parts.
Application areas and future prospects
Although the most established application involves automotive brake discs-where manufacturers such as Ferrari, Brembo and other major players have already adopted this technology-laser cleaning is also finding use in other areas of mechanical components.
In motorsport and high-performance vehicles, where tolerances are even tighter and braking performance is a competitive factor, laser cleaning has become practically standard. The ability to achieve perfectly clean surfaces with repeatable characteristics translates into measurable advantages in performance and reliability.
The world of commercial and industrial vehicles is also showing increasing interest in this technology. Large brake discs used on trucks and heavy vehicles require particularly demanding cleaning processes, and lasers are proving to be an effective solution for handling significant volumes of material while maintaining high quality standards.
Future prospects see further evolution of the technology toward even more intelligent and integrated systems. The development of adaptive control algorithms will enable the laser system to automatically adjust process parameters according to the specific characteristics of each individual component, optimizing the result and further reducing scrap margins. Integration with Industry 4.0 systems will also make it possible to fully track each process step and implement predictive maintenance strategies on plants.
Economic considerations and return on investment
The initial investment for a laser cleaning system is undoubtedly significant, typically in the range of several hundred thousand euros for a complete robotic installation. However, return-on-investment analysis must consider several factors beyond just the purchase cost.
The elimination of recurring operating costs associated with the purchase of chemical solvents and their disposal represents a first tangible savings. Added to this is the reduction in waste due to uneven or inadequate cleaning processes, and the improvement in the perceived quality of the end product by the customer.
Increased operational flexibility is another aspect to be carefully considered. A laser system can be reprogrammed in minutes to handle different models of brake discs, without the need for specific equipment or complex reconfigurations. This translates into a superior ability to respond quickly to changes in demand and to handle varied production mixes without efficiency penalties.
For production facilities with significant volumes-typically over 50,000-100,000 discs/year-the payback period is generally between 2 and 4 years, depending on the specific configuration and operating conditions. For lower volume productions or those characterized by high variability, partial integration solutions or the use of lower power lasers for targeted applications may be more appropriate.
