Surface treatment of mechanical components is a crucial step in the design of precision systems, particularly in the automotive sector where brake pads require extremely high quality standards. Technological advances have introduced new surface preparation methods that complement and, in some cases, improve upon traditional methods.
Laser Technology: A Scientific Approach to Treatment

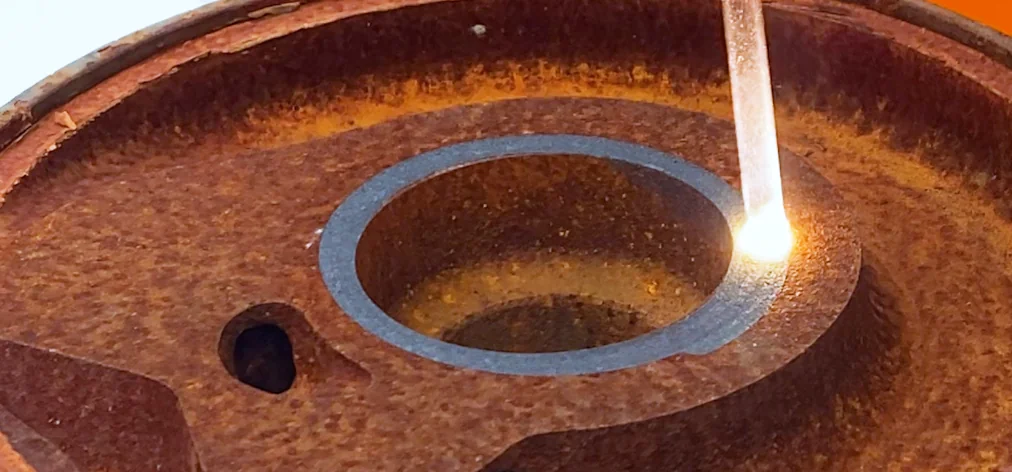

High-power laser systems (up to 500W) introduce a radically different paradigm in surface treatment. The process is based on physical principles of interaction between electromagnetic radiation and matter, allowing control of surface changes. The main innovation lies in the ability to precisely modulate the energy transferred to the material. The mechanism of operation exploits localized absorption and thermal transformation phenomena, allowing:
- Selective removal of contaminants
- Preservation of the metallurgical integrity of the substrate
- Highly precise control of treatment parameters
Thermo-Physical Dynamics of Laser Treatment
The effectiveness of laser treatment rests on complex physical mechanisms of radiation-matter interaction. The main phenomenon is the modulation of heat transfer through critical parameters. Energy density represents the core of the process, with an optimal range between 10-50 J/cm². At this threshold, selective ablation phenomena are triggered that differ substantially from the traditional thermal approach. The pulse duration, which varies from nanoseconds to picoseconds, determines the mode of interaction: shorter pulses allow localized thermal action with minimal thermo-mechanical effects on the underlying metal structure.
Critical Aspects of Laser-Material Interaction:
- Specific ablation threshold for each metal alloy
- Spectral absorption coefficient of the material
- Post-pulse cooling rate
- Treatment-induced microstructural changes
Optimized wavelengths (typically in the near or mid-infrared) are selected according to the specific optical properties of the substrate, ensuring controlled and selective energy interaction.
Applications in the Braking Sector

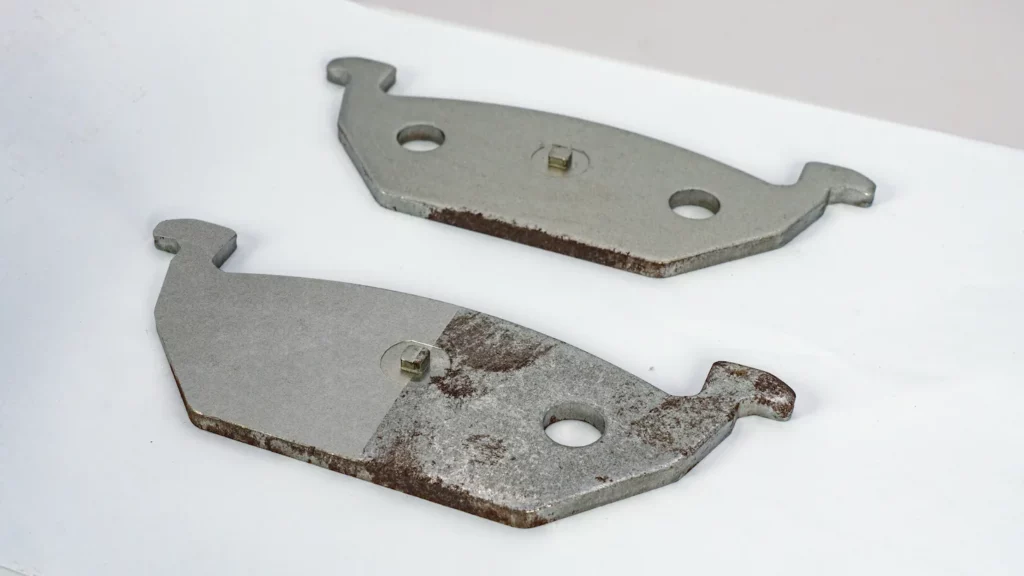

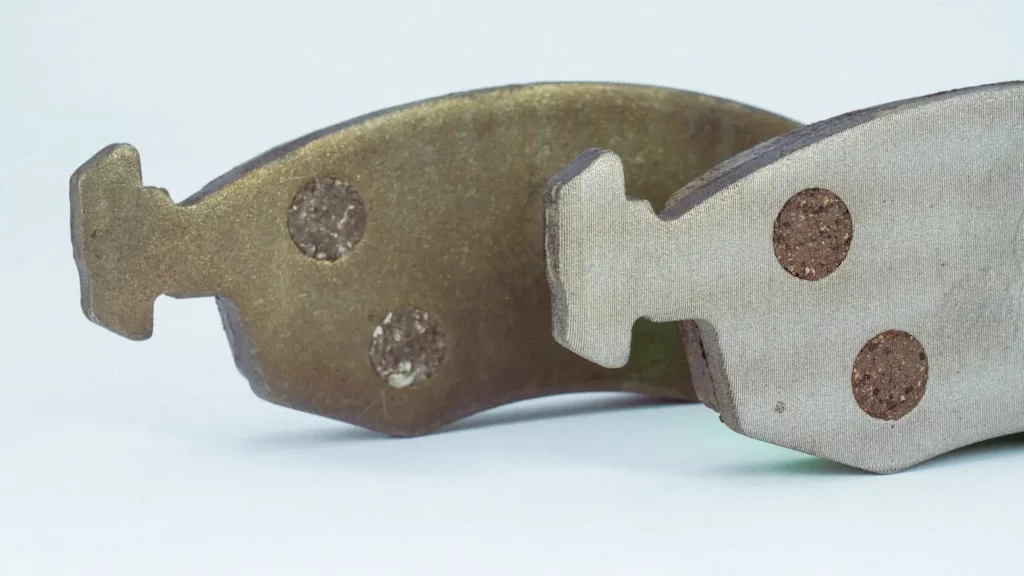

In the field of brake pads, laser treatment proves particularly effective in the preparation of surfaces intended for:
- Improving the adhesion of protective coatings
- Uniform surface characteristics
- Optimize resistance to thermal and mechanical stresses
Comparison of Methodologies
While traditional sandblasting operates with an established mechanical action, laser introduces a more selective approach. Both methodologies retain specific peculiarities: blasting remains effective for large-scale treatments, while laser offers precision and control for applications requiring extreme accuracy.
Laser treatment is distinguished by:
- Millimeter control of energy
- Absence of abrasive materials
- Minimal alteration of surface properties
- Reproducibility of the process
LASIT Solutions for Laser Treatment
LASIT has developed laser systems that represent the state of the art in surface treatment. Configurations, from 100W to 500W, integrated with technologies of:
- Precision numerical control
- Adaptability to various metal substrates
- Modularity for specific industrial applications
Critical Aspects and Limitations of Laser Treatment
Despite its high efficacy, laser treatment presents some not insignificant technical challenges. Treatment penetration and uniformity vary significantly depending on:
- Specific metallurgical composition
- Initial surface condition
- Complex geometries
- Variability of metal substrates
Operational Criticalities: Process repeatability becomes a crucial element. Even small variations in parameters can generate significant dissimilarities, requiring real-time control systems with immediate feedback. The most advanced systems implement:
- In-process spectroscopic monitoring
- Heat compensation systems
- Predictive deviation algorithms
Future Perspectives
Technological evolution is moving toward laser systems with:
- Greater energy control
- Integration of artificial intelligence for process optimization
- Ability to automatically adapt to substrate changes
Laser treatment represents an ever-evolving paradigm in the field of surface treatment, with as yet untapped potential for development.
Technical Note: The values described refer to standard configurations and always require application-specific validation.
