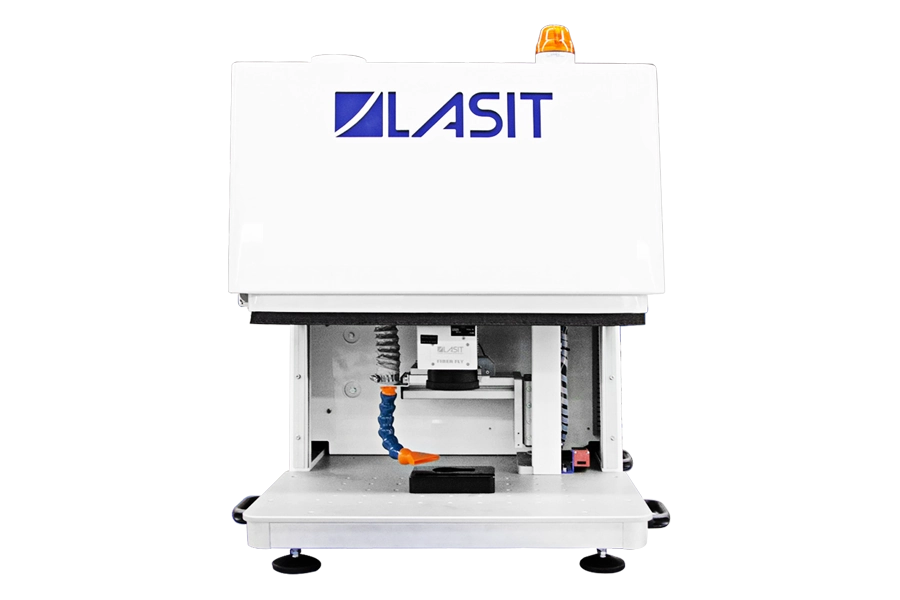

MicroMark G3

MicroMark G3 is a compact, functional bench laser marker that is able to meet the most varied production requirements while maintaining relatively low prices. The system is prepared to work with a robot. The presence of the electric door allows the door opening/closing times to be managed through the software and makes the machine capable of working autonomously (without an operator).

The marking machine can be integrated with vision systems, 3D head and rotary axis. The worktop is made of hard anodised aluminium drilled at 50 pitch to ensure easy, accurate part positioning. The system includes an HP PC 19″ monitor and FlyCAD/FlyControl software package. The system includes an HP PC 19″ monitor and FlyCAD/FlyControl software package.

Talk to an expert

Main features

Opening on three sides

The MicroMark G3 has a three-sided vertical opening door for convenient and easy access to the marking compartment.

Integrated system

On this laser marker, the electrical panel and laser source are fully integrated at the rear of the machine, avoiding any clutter on the workbench. For maximum efficiency, it has an optimal ratio between the worktop size (590mm) and the external layout (710mm).

Power-driven Z-axis

Positioning is facilitated by the use of the joystick which, together with the SmartFocus focusing system, allows the operator to quickly find the correct Z-axis position for marking both flat surfaces and complex geometries.

What you can mark

Talk to a LASIT expert

Let’s evaluate together how to improve the productivity and efficiency of your line. Fill out the form: one of our specialists will contact you back to analyze your need and define the best steps, with no obligation.

How we will help you

First Discussion: one of our experts will contact you back (via phone or email, as you prefer) for an initial chat and to fully understand your need.
Tailored analysis: Based on your need, we will decide together on the next step. We can arrange an in-house visit, analyze your process in videocall, or conduct free marking tests on your samples.
Your solution: We will study and present you with a customized solution designed to integrate seamlessly into your current production process.
In relation to the privacy policy notice (art.13 GDPR 2016/679), which I declare to have read, I consent to the processing of my data.
I wish to receive commercial and promotional communications regarding LASIT products and services.

Data sheet

Height

835mm

Width

710mm

Depth

855mm

Laser

Fiber Laser, MOPA Laser, Green Laser

Work plan

590x295 mm

Door type

Electric

Axle strokes

200mm

Available focal lengths

FFL160
FFL254

Maximum marking area

ø140 (FFL160)
ø220 (FFL254)

Maximum weight on table

40Kg
