Polaris

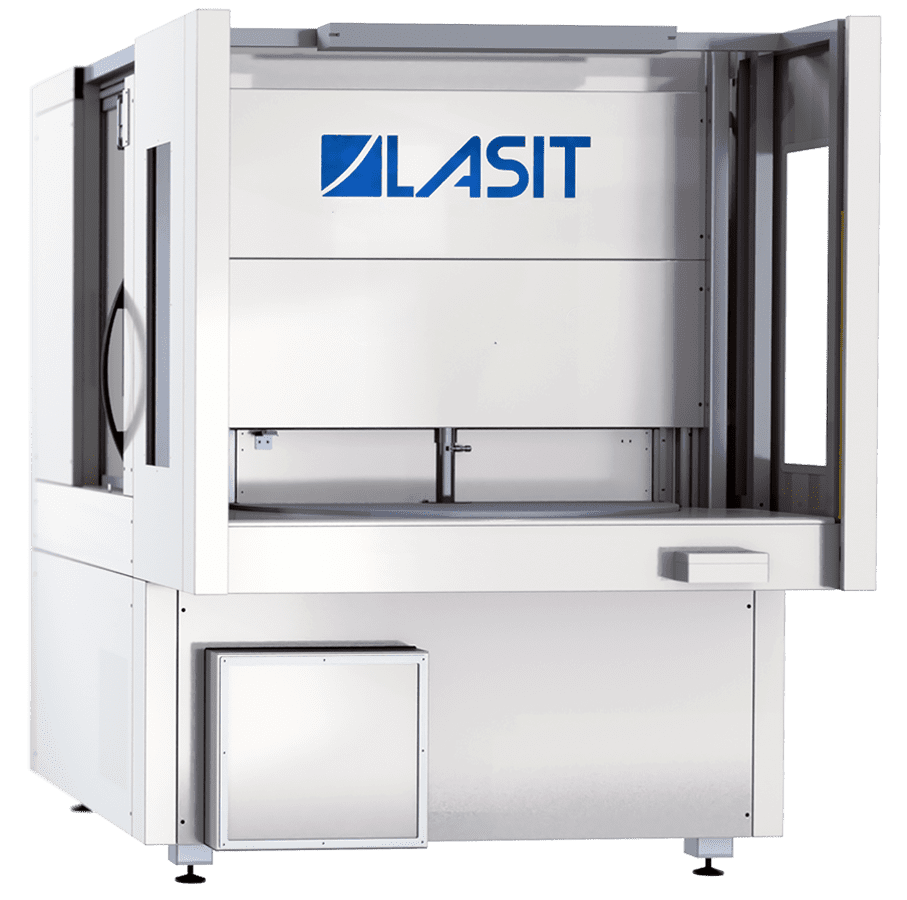

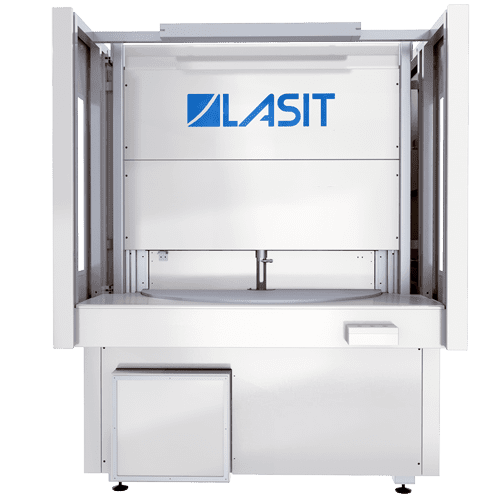

The POLARIS is a high-output laser marking system, equipped with a rotary table for continuous loading and unloading. It can be equipped with dual lasers and two independent XYZ axis systems. Its design facilitates operation with either an operator or a robot and loading of components weighing up to 20kg per table position.

The structure of the machine and axes are made entirely of steel to ensure maximum rigidity. Ensuring there is no vibration and offering maximum precision during marking. The machine can be equipped with many accessories (vision systems for marking centring and 3D scanning system for optimised marking on curved surfaces) and can have 2 to 4 stations for marking and reading or 3D scanning.

Talk to an expert

Main features

Productivity

The X(900mm) Y(280mm) axes allow the 1000*280mm marking area to be extended with the FFL160 focal length, thus making it possible to mark large components in several positions or several parts during the same work cycle. The table with a diameter of up to 1800 mm and two positions allows continuous marking, thus maximising productivity.

Stability and precision

The machine’s structure, designed using FEM techniques, is made entirely of welded, thermally stress-relieved and milled steel. This gives the machine added sturdiness and stability, ensuring maximum precision during marking operations.

Accessories

The machine can be equipped with
  • Vision system for marking centring
  • 3D scanning system for optimised marking on curved surfaces
  • Autofocus for marking components with tolerances
  • Z-dynamic for marking curved surfaces

What you can mark

Talk to a LASIT expert

Let’s evaluate together how to improve the productivity and efficiency of your line. Fill out the form: one of our specialists will contact you back to analyze your need and define the best steps, with no obligation.

How we will help you

First Discussion: one of our experts will contact you back (via phone or email, as you prefer) for an initial chat and to fully understand your need.
Tailored analysis: Based on your need, we will decide together on the next step. We can arrange an in-house visit, analyze your process in videocall, or conduct free marking tests on your samples.
Your solution: We will study and present you with a customized solution designed to integrate seamlessly into your current production process.
In relation to the privacy policy notice (art.13 GDPR 2016/679), which I declare to have read, I consent to the processing of my data.
I wish to receive commercial and promotional communications regarding LASIT products and services.

Data sheet

Height

2471mm

Width

1800mm

Depth

2700mm

Laser

Fiber Laser, MOPA Laser, Green Laser, UV Laser , CO2 Laser

Work plan

590x295 mm

Door type

Electric

Axle strokes

900mm x 280mm x 300mm

Available focal lengths

FFL160
FFL254
FFL330
FFL420

Maximum marking area

ø140(FFL160)
ø220(FFL254)
ø290(FFL330)
ø330(FFL420)

Maximum weight on table

40Kg
