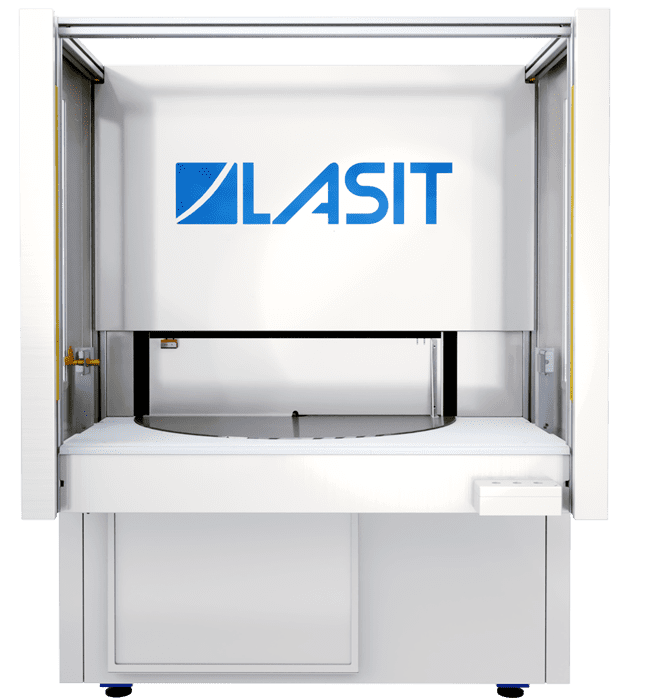

RotoMark X

RotoMark X is a laser marking system equipped with a rotary table that can have from 2 to 4 stations allowing marking in masked time: while the machine is marking a component, the operator is already loading the next component onto the table. The table mechanism ensures speed, precision and repeatability.

This laser marker is designed for both large production requirements and large parts. Its versatility also means it is extremely functional when a single part or a limited series needs to be produced

Talk to an expert

Main features

Productivity

The RotoMark X is equipped with a ø1000mm 2/4-position rotary table for marking in masked time and a combined X/Z axis system. The X-axis allows a larger marking area to be covered than the focal length alone. With the FFL160 focal length, the working area becomes 800x100mm, a size that can be further increased if a larger diameter lens is used. In fact, with an FFL254 focal length, the marking area becomes 850x150mm.

Stability

The structure, made entirely of stretched, welded and milled steel, allows higher axis accelerations without the risk of vibrations, with absolute stability and high resistance in the event of machine movement and/or accidental shocks. The rotary table mechanism, with a mechanical cam, guarantees: great stability thanks to a large diameter bearing, positioning accuracy and repeatability in the order of 100µm at the edge of the table and speed of rotation (thus greater productivity) thanks to inverter control.

Flexibility

The RotoMark X is very flexible and can be used in three modes: table in automatic where, when the optical barrier is released, the table rotates automatically; table in manual where, once the part is loaded, the operator starts the cycle; side door where the table is locked and the operator loads from the side door, closes the door and starts the cycle

What you can mark

Talk to a LASIT expert

Let’s evaluate together how to improve the productivity and efficiency of your line. Fill out the form: one of our specialists will contact you back to analyze your need and define the best steps, with no obligation.

How we will help you

First Discussion: one of our experts will contact you back (via phone or email, as you prefer) for an initial chat and to fully understand your need.
Tailored analysis: Based on your need, we will decide together on the next step. We can arrange an in-house visit, analyze your process in videocall, or conduct free marking tests on your samples.
Your solution: We will study and present you with a customized solution designed to integrate seamlessly into your current production process.
In relation to the privacy policy notice (art.13 GDPR 2016/679), which I declare to have read, I consent to the processing of my data.
I wish to receive commercial and promotional communications regarding LASIT products and services.

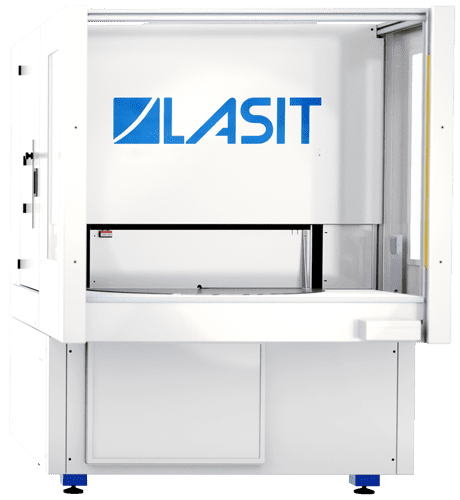

Data sheet

Height

1940mm

Width

1200mm

Depth

1700mm

Laser

Fiber Laser, MOPA Laser, UV Laser

Work plan

ø1000mm

Door type

Manual

Axle strokes

700x300 mm

Available focal lengths

FFL160
FFL254

Maximum marking area

ø140 (FFL160)
ø220 (FFL254)

Maximum weight on table

20Kg
