Rototag

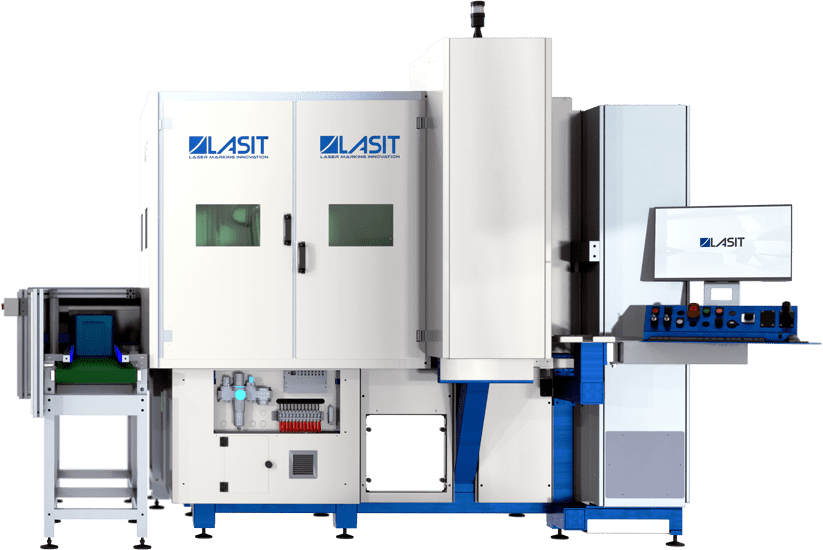

The Rototag is an automatic laser marker that collaborates with robots, designed for marking tags and unloading them onto a motorized conveyor belt. The automated marking process begins with the operator loading the tags into the accumulators of the 10 loading stations. A barcode reader at the unloading station sends information about the production order to the laser, identifying the magazines with the tags to be marked. The rotating table brings the selected magazine to the marking area. Here, a ball screw pushes the tags upwards, while a sensor verifies their positioning. Once the correct focal distance is reached, the tag is marked. A Pick & Place system then picks up the marked tag and deposits it in the basket on the side conveyor. The cycle repeats until all tags in the order are marked. At this point, the input and output conveyors advance synchronously, and a pneumatic system pushes the last basket from the input conveyor to the output conveyor, preparing the system for the next production order.

Main features

Productivity

The machine is equipped with a rotating table with 10 loading stations, an automatic Pick & Place system, and a motorized conveyor for unloading. This allows for a fully automated marking cycle, from tag feeding to the unloading of marked pieces, ensuring high productivity.

LASIT Software

The onboard software can be customized to dynamically retrieve data from the customer’s system. For example, it is possible to retrieve the layout for each tag associated with a product family and dynamically populate it with data related to the specific product directly through direct access to SQL SERVER, AS400, or in any other mode provided by the factory system.

Magazines

The magazines have a loading capacity of 200mm, allowing up to 400 tags of 0.5mm thickness to be inserted. The base of the loaders is fixed, while the upper part can be removed in a few seconds and replaced with the one corresponding to the matching tags, thus accommodating labels of different sizes.

What you can mark

Talk to a LASIT expert

Let’s evaluate together how to improve the productivity and efficiency of your line. Fill out the form: one of our specialists will contact you back to analyze your need and define the best steps, with no obligation.

How we will help you

First Discussion: one of our experts will contact you back (via phone or email, as you prefer) for an initial chat and to fully understand your need.
Tailored analysis: Based on your need, we will decide together on the next step. We can arrange an in-house visit, analyze your process in videocall, or conduct free marking tests on your samples.
Your solution: We will study and present you with a customized solution designed to integrate seamlessly into your current production process.
In relation to the privacy policy notice (art.13 GDPR 2016/679), which I declare to have read, I consent to the processing of my data.
I wish to receive commercial and promotional communications regarding LASIT products and services.

Data sheet

Height

2420mm

Width

3180mm

Depth

2400mm

Laser

Fiber Laser, MOPA Laser

Work plan

1000mm

Door type

Manual

Axle strokes

-

Available focal lengths

FFL160
FFL254

Maximum marking area

ø140 (100x100) (FFL160)
ø220 (160x160) (FFL254)

Maximum weight on table

20kg
