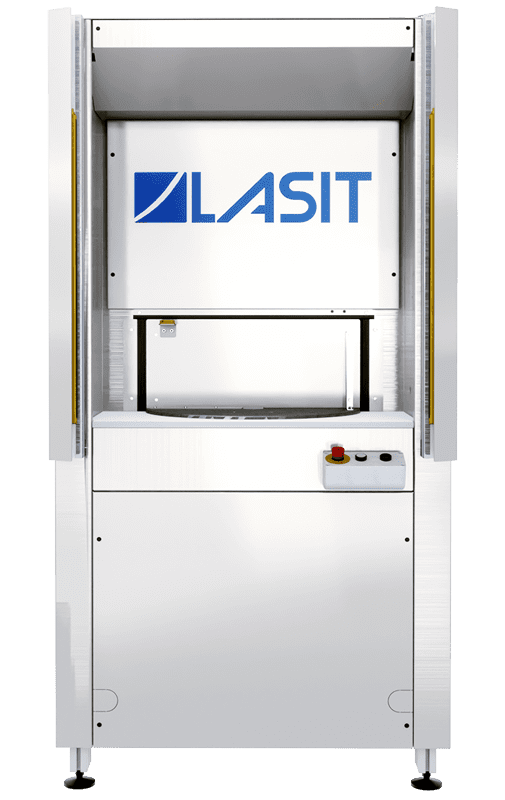

RotoTower X

RotoTower X is a rotary table laser that combines high productivity with compact dimensions and ergonomics.
The two-position rotary table allows marking in masked time, i.e. eliminating downtime by optimising component loading/unloading.

While the laser marks the component in the cabinet, the operator can load/unload the next part, without the machine stopping.
The laser marker is ready for robot integration if required. The work table has a diameter of 600 mm, which makes the system functional and very compact.

RotoTower X is extremely safe thanks to the optical barriers that protect the operator from potential collisions when rotating the table.

Talk to an expert

Main features

Productivity

In automatic working mode, the operator can load/unload the part processed/to be processed at the same time as the marking process as the table has two 2 positions. This maximises productivity by eliminating additional loading/unloading time.

Flexibility

This marker can be used with the table either in automatic or manual mode. In the first case, the operator loads the part, starts the cycle and the table moves to bring it into the marking cabinet. In the second case, the operator can load the component through the side inspection door and start the cycle.

XZ axis system

The RotoTower X is equipped with a Z-axis with 400mm travel for focusing and an X-axis with 500mm travel to extend the working range up to 420x100mm. It is therefore possible to mark pallets with several components or the same workpiece in several positions. Both axes are motorised with encoders and are managed directly by the FlyCAD software.

What you can mark

Talk to a LASIT expert

Let’s evaluate together how to improve the productivity and efficiency of your line. Fill out the form: one of our specialists will contact you back to analyze your need and define the best steps, with no obligation.

How we will help you

First Discussion: one of our experts will contact you back (via phone or email, as you prefer) for an initial chat and to fully understand your need.
Tailored analysis: Based on your need, we will decide together on the next step. We can arrange an in-house visit, analyze your process in videocall, or conduct free marking tests on your samples.
Your solution: We will study and present you with a customized solution designed to integrate seamlessly into your current production process.
In relation to the privacy policy notice (art.13 GDPR 2016/679), which I declare to have read, I consent to the processing of my data.
I wish to receive commercial and promotional communications regarding LASIT products and services.

Data sheet

Height

2300mm

Width

1500mm

Depth

1300mm

Laser

Fiber Laser, MOPA Laser, Green Laser

Work plan

Ø600mm

Door type

Manual

Axle strokes

400x500 mm

Available focal lengths

FFL160
FFL254

Maximum marking area

ø140 (FFL160)
ø220 (FFL254)

Maximum weight on table

10Kg
