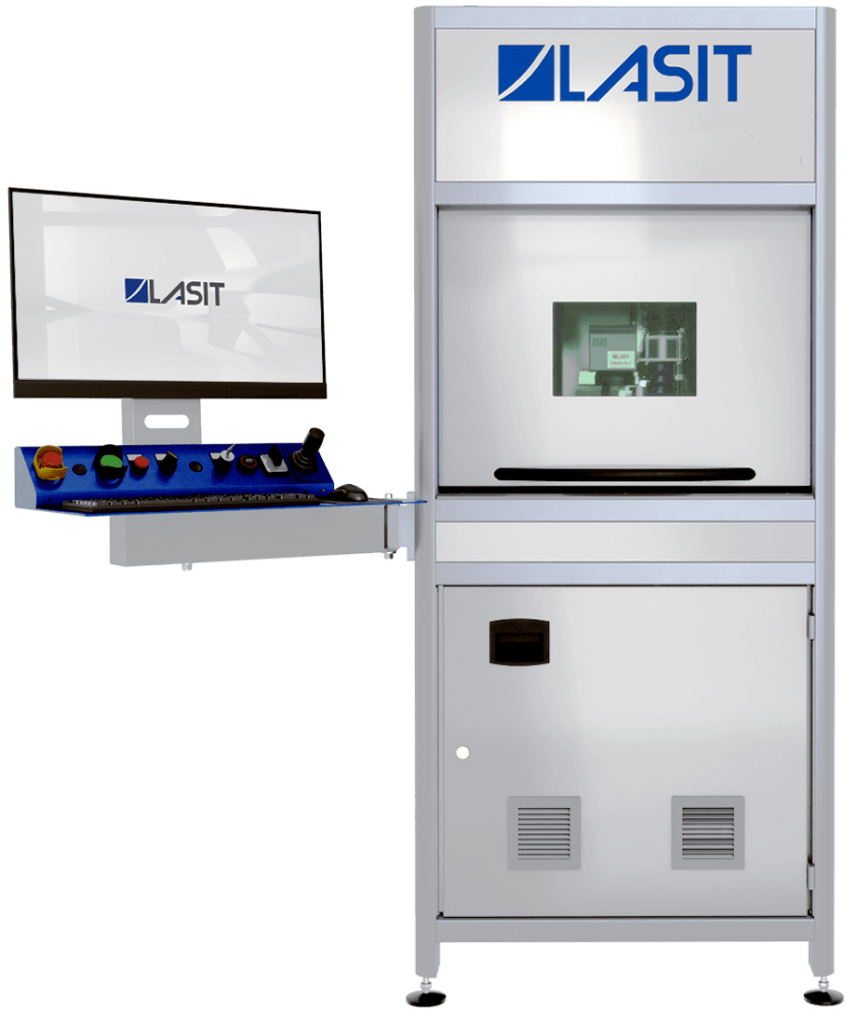

TowerMark X

The TowerMark X laser marker is extremely versatile and can be equipped with different laser sources depending on the material to be marked.

The main feature of this machine is an innovative X- and Z-handling system that increases the marking area to 600x100mm (with FFL160 focal length), so that large workpieces can be engraved, but especially jigs or pallets with hundreds of parts. The laser marker is compatible with various accessories such as vision systems, rotary axis, 3D head and side boxes for marking longer parts, available in 500mm or 1000mm per side.

Talk to an expert

Main features

High productivity

The X-axis stroke is 500 mm, which allows the marking area to be increased to 600×100 mm (with focal length FFL160) so that very long parts can be automatically marked without moving them, as well as pallets with hundreds of small objects.

Upgrade

Towermark X is upgradeable with the TTL vision system, ideal for laser marking on very small parts where extreme precision and high definition is required. A rotary axis can be installed inside the marking cabin for marking cylindrical parts.

Marks tall parts

The Z-axis of the TowerMark X allows marking of parts up to 400 mm high (with focal length FFL160). The slide rail is with recirculating ball bearing and ensures speed, precision and durability. The Z-axis is programmable from FlyCAD, while the joystick and SmartFocus allow manual movement and finding of the right focus distance even on complex workpieces.

What you can mark

Talk to a LASIT expert

Let’s evaluate together how to improve the productivity and efficiency of your line. Fill out the form: one of our specialists will contact you back to analyze your need and define the best steps, with no obligation.

How we will help you

First Discussion: one of our experts will contact you back (via phone or email, as you prefer) for an initial chat and to fully understand your need.
Tailored analysis: Based on your need, we will decide together on the next step. We can arrange an in-house visit, analyze your process in videocall, or conduct free marking tests on your samples.
Your solution: We will study and present you with a customized solution designed to integrate seamlessly into your current production process.
In relation to the privacy policy notice (art.13 GDPR 2016/679), which I declare to have read, I consent to the processing of my data.
I wish to receive commercial and promotional communications regarding LASIT products and services.

Data sheet

Height

2200mm

Width

840mm

Depth

870mm

Laser

Fiber Laser, MOPA Laser, Picosecond Laser, Green Laser, UV Laser , CO2 Laser

Work plan

750X470 mm

Door type

Manual, Pneumatic, Electric

Axle strokes

500x400 mm

Available focal lengths

FFL160
FFL254
FFL330

Maximum marking area

600x100 mm (FFL160)
655x155 mm (FFL254)
750x210 mm (FFL330)

Maximum weight on table

120 Kg
