Universal

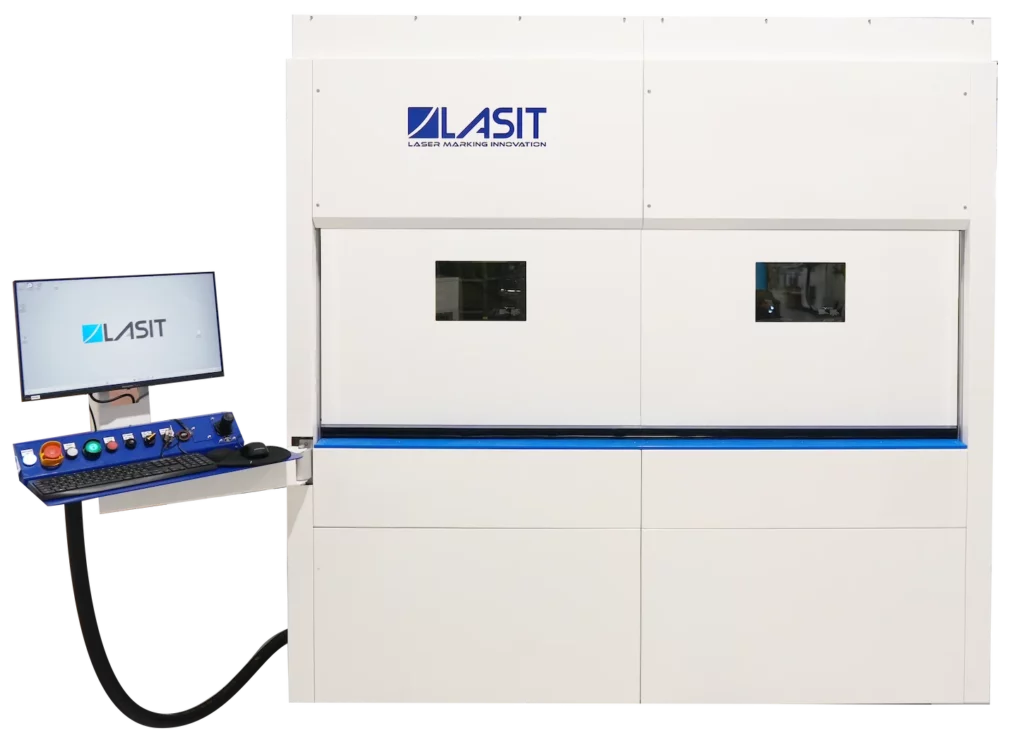

The Universal laser marking system is a three-axis machine ideal for marking large components or pallets with hundreds of small parts

The machine is made entirely of welded and precision machined steel. It can withstand heavy loads of up to 250 kg; the steel structure also guarantees fast and precise movement of the axes, which cover a large area without the need to move the table.

Talk to an expert

Main features

Marking area

The steel construction allows this marking system to cover an area of 1000x500x500 mm with precision and accuracy. A marking area of this type allows large components, such as die casts and automotive components of all kinds, to be engraved, as well as pallets with smaller components, such as tools and medical instruments.

Steel structure

At the heart of the machine is the XYZ axis system mounted on a steel base to ensure extreme rigidity. The geometry and stability of the machine are independent of the external structure. Universal is not a “commercial” 3-axis combination but a true laser machining centre designed with FEM techniques. This makes it compact, rigid and precise.

Versatility

This laser marker can be integrated with all laser sources and a wide variety of accessories, which can also be added at a later date. These accessories include: TTL or side vision systems, manual or motorised rotating head, 3-axis or W-axis head, barcode readers and LASIT vacuum system.

What you can mark

Talk to a LASIT expert

Let’s evaluate together how to improve the productivity and efficiency of your line. Fill out the form: one of our specialists will contact you back to analyze your need and define the best steps, with no obligation.

How we will help you

First Discussion: one of our experts will contact you back (via phone or email, as you prefer) for an initial chat and to fully understand your need.
Tailored analysis: Based on your need, we will decide together on the next step. We can arrange an in-house visit, analyze your process in videocall, or conduct free marking tests on your samples.
Your solution: We will study and present you with a customized solution designed to integrate seamlessly into your current production process.
In relation to the privacy policy notice (art.13 GDPR 2016/679), which I declare to have read, I consent to the processing of my data.
I wish to receive commercial and promotional communications regarding LASIT products and services.

Data sheet

Height

2740mm

Width

1830mm

Depth

2080mm

Laser

Fiber Laser, MOPA Laser, Green Laser, UV Laser , CO2 Laser

Work plan

1580x770 mm

Door type

Pneumatic, Electric

Axle strokes

1000x500x500 mm

Available focal lengths

FFL160
FFL254
FFL330
FFL420

Maximum marking area

1100x550x500 mm (FL160)
1200x550x500 mm (FFL254)
1300x550x500 mm (FFL 330)
1400x550x500 mm (FFL 420)

Maximum weight on table

250Kg
