In the modern faucet industry, product traceability and customization are key requirements that need state-of-the-art technological solutions. Laser marking has emerged as the most effective technology to meet these requirements, surpassing traditional techniques due to its accuracy, versatility and ability to integrate into automated production processes.
The PowerMark: designed for industrial integration
The PowerMark fiber-based system was developed specifically for integration into automated production lines, with features that make it ideal for the faucet industry and other industrial settings. Its extremely compact design and standardized rack format enable rapid installation even in tight spaces within existing lines, minimizing production downtime.
The marking area is configurable according to application needs, with working ranges from ø87mm (with FFL100 focal length) up to ø390mm (with FFL420 focal length), allowing the system to be adapted to the size of the components to be processed.
Advanced connectivity for Industry 4.0
The real strength of the PowerMark is its ability to integrate into enterprise control systems through multiple protocols. In addition to the standard RS232 and TCP/IP connection, the system natively supports PROFINET, the reference protocol for industrial automation, and can be configured to work with OPC-UA and Web Services. This flexibility allows the marker to integrate seamlessly into any existing control architecture, facilitating real-time data exchange with PLCs, SCADA systems and MES software.
The ability to dynamically receive the contents to be marked through these protocols allows each part to be customized on the line without slowing down the production cycle. The laser can thus become an intelligent node within the production network, contributing to complete product traceability and data collection for quality analysis.
MOPA technology: superior performance in marking
Unlike conventional fiber lasers with fixed pulses, MOPA (Master Oscillator Power Amplifier) technology allows precise control over pulse duration (0.5ns to 200ns) and frequency (up to 1MHz). This translates into superior performance in marking typical metal components of faucets, with the possibility of achieving markings with color contrast even without significant ablation of material, thus preserving the mechanical and corrosion resistance characteristics of the product.
For applications requiring deep engraving or extremely fast processing times, the PowerMark is available in versions up to 200W power, while still maintaining all-air cooling that simplifies installation and reduces operating costs.
Advanced vision and focusing systems
The integration of PowerMark into automated lines is further enhanced by complementary systems that extend its functionality, ensuring optimal results even under complex operating conditions:
Integrated autofocus system
The autofocus system is a crucial element of precision marking, especially when working on components with varying dimensional tolerances. Based on precision laser sensors, this system measures the distance between the marking head and the part surface in real time, automatically adjusting the focal position to ensure optimal results.
Adjustments are made with an accuracy of a few microns and in sub-second times, maintaining marking quality even in fast production runs where it is not possible to stop the line to make manual adjustments. This is especially important when marking mixed batches, where components of different sizes follow one another on the same line.
3-axis head for complex surfaces
The 3-axis head represents a key development for marking on complex surfaces such as faucets. This technology allows constant and high focus to be maintained even on curved or irregular surfaces, thanks to a linear motor system that allows the focus point to be varied without physically moving the laser along the Z axis.
Mechanically, it consists of a linear motor system: two rotating X and Y motors to move the laser beam along axes and a third axis for focusing. The laser beam passes through a lens equipped with a moving lens mounted on a linear translator, with operation automatically adjusted by software. This configuration allows:
- Maintaining focus on non-planar surfaces
- Compensate for height differences up to 45mm without mechanical movement
- Make markings on several misaligned planes in a single cycle
- Automatically adapt to complex geometries such as curves, chamfers, and fillets
Integrated vision system for centering and quality control
The PowerMark system can be equipped with advanced vision systems that operate in either TTL (Through The Lens) or coaxial, or lateral modes, offering complete inspection and control capabilities:
The side vision system, with a field of view of about 90x60mm, allows not only self-centering of marking on part references, but also quality verification according to AIM-DPM standards. This is especially important for marking DataMatrix and QR codes intended for traceability, where readability of the code is critical for the entire supply chain.
Optical character recognition (OCR) technology built into the system also enables verification of alphanumeric information such as serial numbers or production dates, ensuring the correct application of information required by regulations and corporate quality systems.
Integrated suction system
To ensure a clean working environment and protect optical components from dust and fumes generated during the marking process, the PowerMark can be supplied with a fully integrated vacuum system. Designed specifically for laser applications, this system features:
- High air flow rate (up to 500 m³/h) to effectively capture all particles
- Activated carbon filters for odor abatement
- Mechanical pre-filters for separation of larger particles
- Very dense mesh HEPA filters for capturing microparticles
- High efficiency and low noise side channel pumps
- Compact size for integration into production cells
- Automatic management through laser software
This comprehensive solution also allows for the operation of critical materials such as brass and copper alloys, ensuring the safety of operators and the cleanliness of the work environment, while fully complying with environmental regulations.
Flexible operating modes
The PowerMark can operate in different configurations to suit the specific needs of the production environment:
In Stand Alone mode, the laser operates without the need for a control PC, making it ideal for production lines where space is limited. Dynamic updating of the machining content can be done via TCP or RS232, with automatic loading when the last performed machining is turned on.
In PC configuration, the system can manage multiple lasers simultaneously through a single interface, optimizing resources and simplifying management in complex lines. FlyCAD software provides complete control over all marking parameters, allowing management of fonts, codes, serial numbers and movement axes in a single environment.
For particularly complex industrial environments, the interface can be customized for specific data input needs, including access to enterprise factory systems through databases, web services and proprietary protocols.
Applications in the faucet industry
In the faucet industry, PowerMark finds application in various stages of the production process:
Traceability code marking (DataMatrix, QR, alphanumeric) allows each component to be tracked throughout its life cycle, from production stages to after-sales maintenance. On materials such as brass, stainless steel, and copper alloys, the system provides permanent markings that are resistant to wear and chemicals, perfect for components exposed to water and cleaning products.

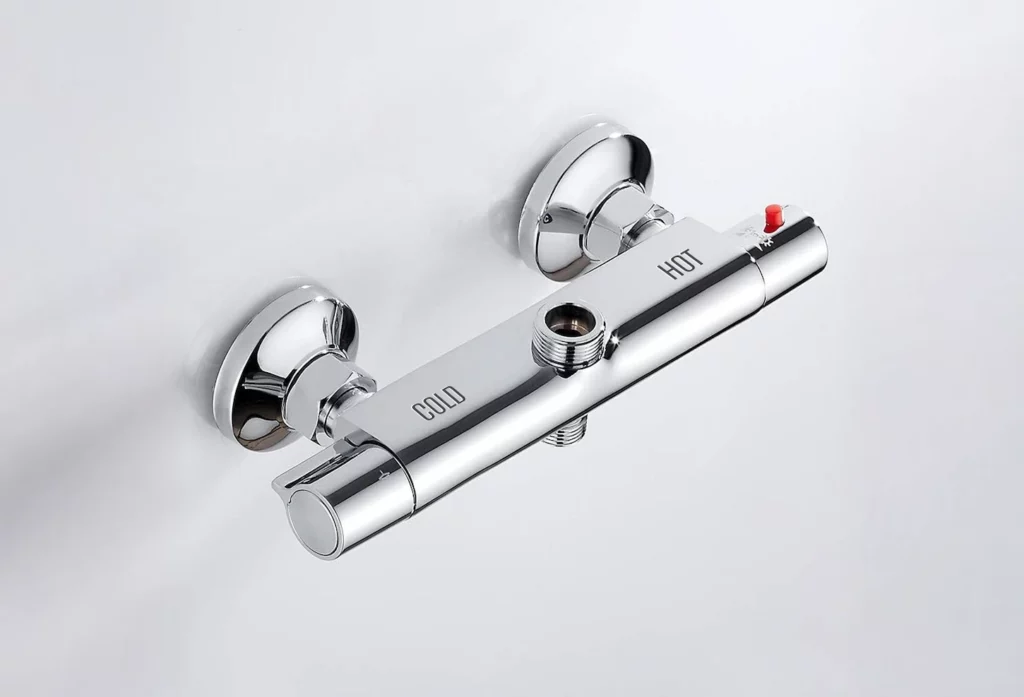

Aesthetic customization with logos and technical information allows manufacturers to differentiate their products, while the ability to mark on curved, multi-sided surfaces allows them to exploit even areas with complex geometries typical of modern faucets.
Economic and operational benefits
The integration of PowerMark into automated production lines leads to significant improvements in efficiency and cost. The need for consumables is completely eliminated, resulting in significant operating cost savings over traditional marking technologies. Maintenance is minimized due to the reliability of the laser source, with an operating life exceeding 100,000 hours.
Production flexibility is greatly increased, enabling rapid production changes without the need to change tools or physically reconfigure the line. This results in smaller, more economically sustainable batches, in line with modern customization-oriented manufacturing trends.
Powermark laser in the future of faucets
The integration of the PowerMark system with MOPA technology into automated production lines is now the most advanced solution for companies needing flexible, reliable marking systems that are fully integrated into the production flow.
The combination of compactness, advanced connectivity, vision systems, and the ability to adapt to complex surfaces makes the PowerMark the ideal tool to meet the challenges of modern industrial production, not only in the faucet industry but in all areas where traceability and customization are critical success factors.
