In the rifle manufacturing industry, traceability represents much more than a regulatory requirement. Each component must be uniquely, legibly and permanently identified, while ensuring pinpoint accuracy and adherence to strict quality standards. Laser marking has established itself as the technology of choice for this type of application, but not all solutions on the market can meet the specific requirements of such a demanding industry.
The challenges of marking in rifle production
The manufacture of rifles and their components has characteristics that make laser marking particularly complex. The parts to be marked are often large cylindrical components, such as barrels, drums and receivers, which require multiple markings on curved surfaces and in different positions. The geometry of the components themselves implies the need to move the part with extreme precision during the marking process, while maintaining consistent quality of the result across the entire surface.
Added to this is the need to ensure complete traceability through integration with business management systems. It is not simply a matter of engraving a code on the metal surface, but creating a direct link between the physical component and its digital twin within the ERP system. Every rifle must be traceable from raw material to finished product, passing through all stages of processing and assembly.
Immediate verification of marking quality is another critical aspect. In an industry where quality standards are defined by stringent regulations, it is not enough to mark-it must also be verified in real time that what is etched is actually legible and conforms to specifications. An illegible or partially compromised code is not acceptable and must be detected immediately, before the component continues in the production cycle.
TowerMark XYS: an integrated solution for complex needs

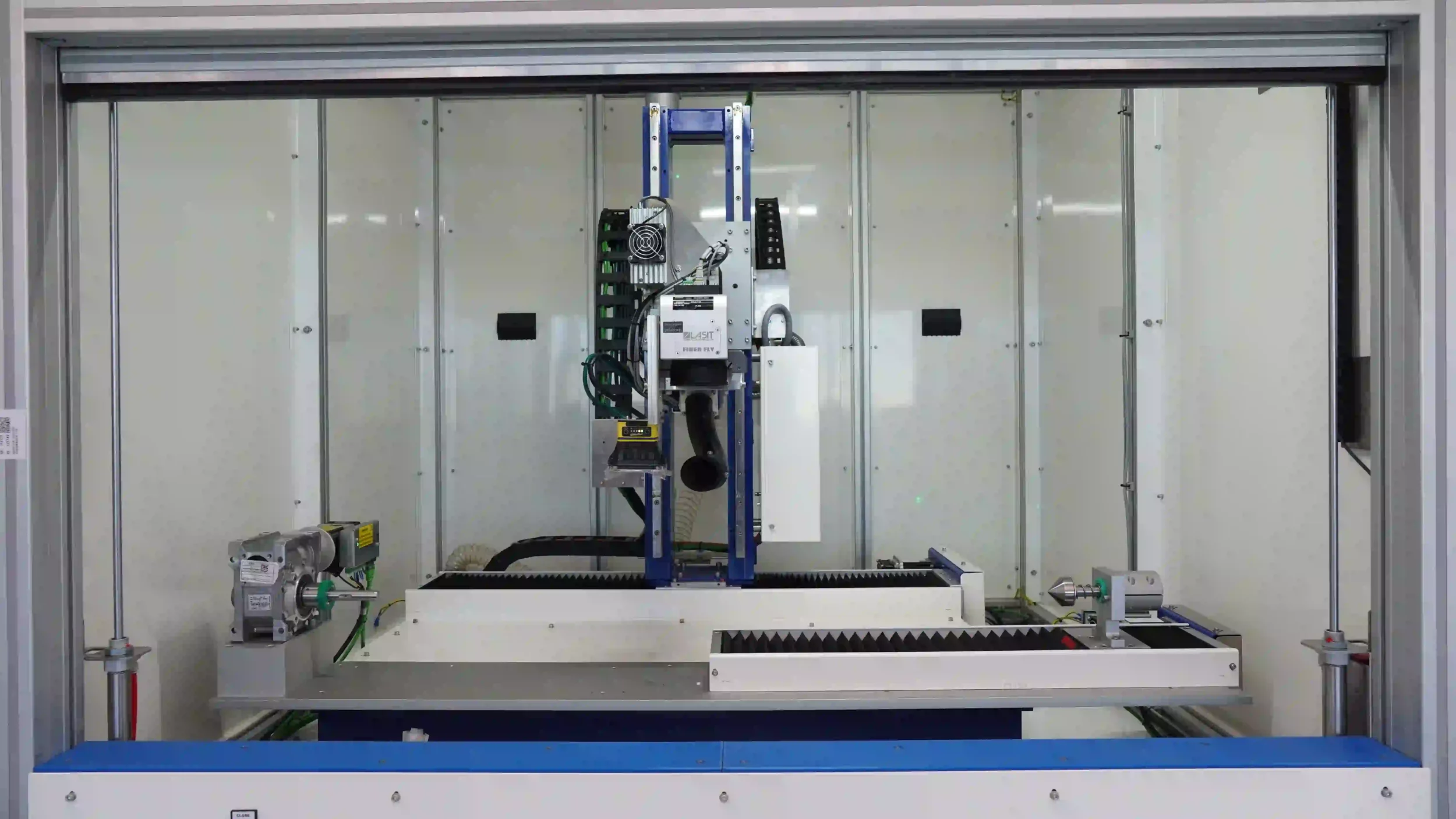

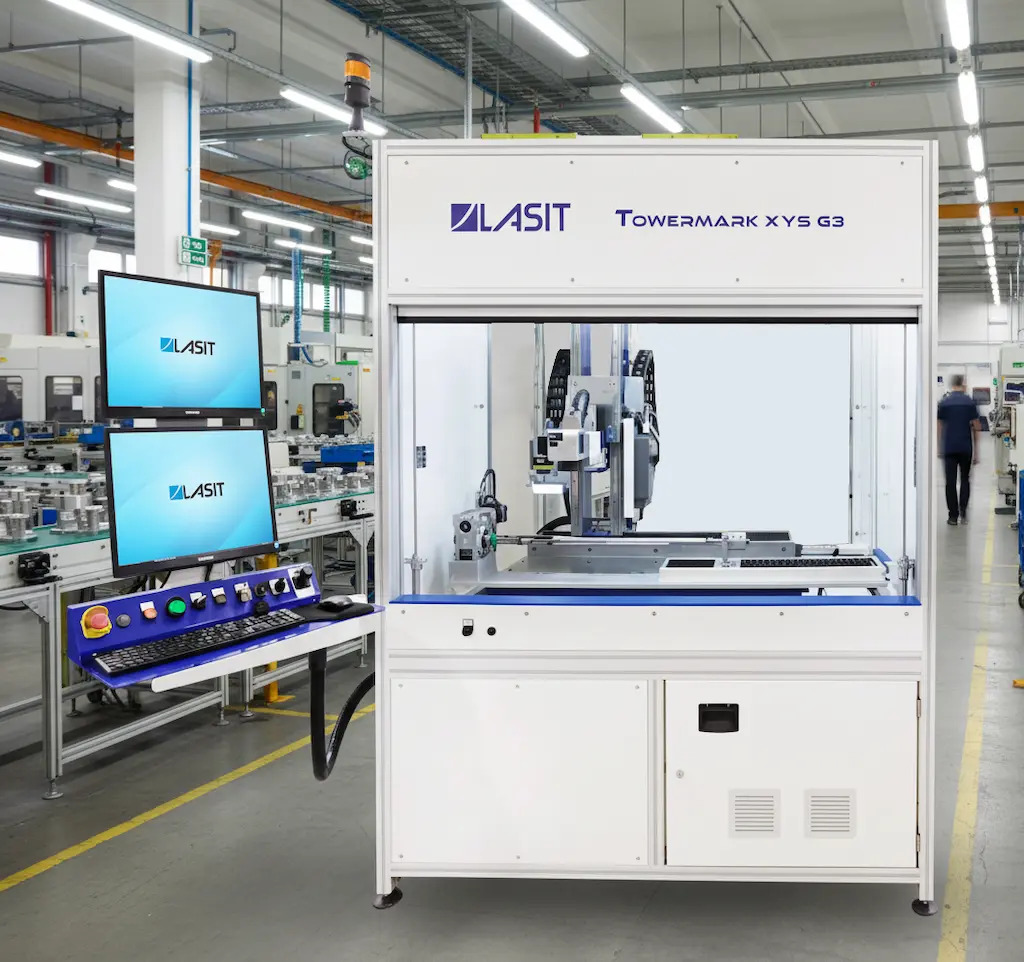

The TowerMark XYS system was created precisely to meet these specific challenges. It is a modular laser marking station designed to handle large components with complex geometric configurations. At the heart of the system is an extremely rigid three-axis structure, sized to cover a working area of 800x200x600 mm. This width makes it possible to position even the bulkiest components and reach them with the laser beam at multiple points, without the need for manual repositioning.

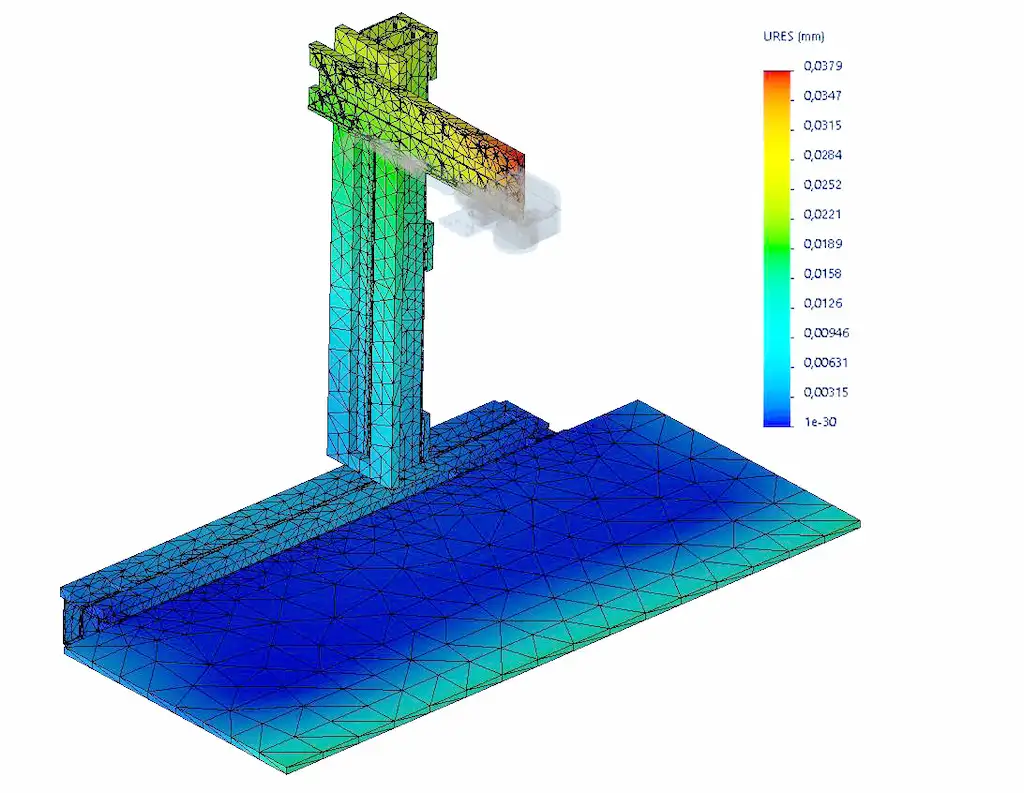

The mechanical structure of the TowerMark XYS was designed using Finite Element Method ( FEM) techniques to optimize rigidity and precision. It is not a simple assembly of commercial rails, but an integrated system where each element contributes to the overall stability. The structural stiffness is such that even with loads of 100 kg on the work surface, deformations are kept below 20 microns. This feature is critical when working on heavy components and requiring repeatable accuracy over time.
The work surface measures 1335×828 mm and is made of ground aluminum with a 30-micron hard anodized coating. The surface has a grid of holes with 70 mm pitch, each of which is bored to H7 tolerance at the top and threaded M6 at the bottom. This system allows equipment and clamping devices to be fixed with extreme precision and repeatability, quickly adapting the configuration to the different types of components to be marked.
A complete system for cylindrical components
When it comes to marking receivers and rifle barrels, the real challenge is not the single accessory, but theintegration of multiple elements into a coherent and reliable system. The TowerMark XYS configuration for this industry combines an extremely rigid mechanical structure, a rotary axis with motorized tailstock and pneumatic preload, an automatic OCR verification system, and customized software for ERP integration.
It is this combination of elements that makes the difference. The robust design ensures that no vibrations or oscillations occur while the part is rotating, which would compromise marking quality. The rotary axis with motorized tailstock ensures perfect centering and position retention throughout the process. The OCR system immediately verifies the legibility of what is engraved. Integration with ERP ensures that each part is uniquely identified and tracked in the management system.

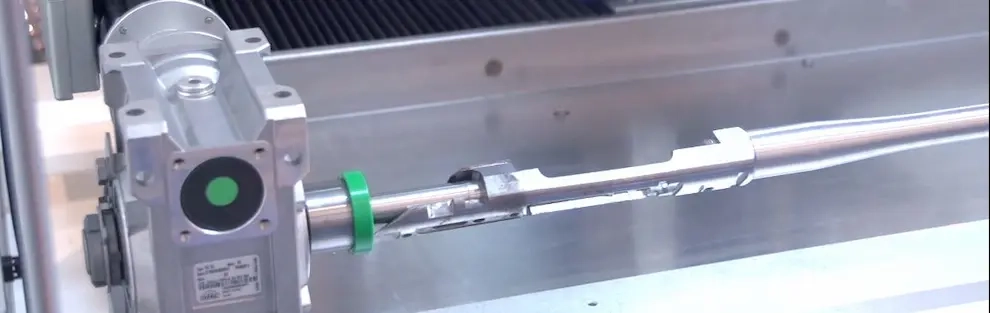

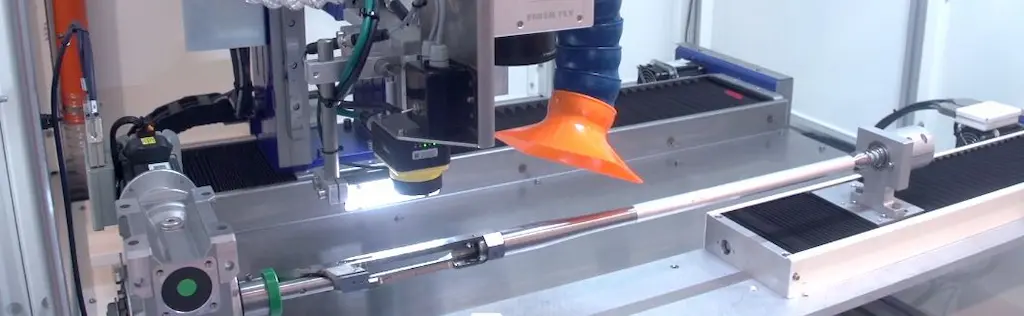

The component is clamped by parallel vice on the spindle side, while the motorized tailstock applies controlled pneumatic preload on the opposite end. This system ensures that even long and relatively thin components, such as gun barrels, are kept perfectly straight and centered during rotation, avoiding bending or misalignment that would compromise the quality of circumferential marking.
Controlled rotation of the workpiece allows continuous markings to be made across the entire cylindrical surface while maintaining a constant focal distance between the laser source and the engraving point. This is especially important when working with fiber lasers, where the depth of field is limited and small variations can significantly affect the contrast and depth of the marking.
ERP integration and custom software
In rifle manufacturing, information management is as important as the physical marking of components. The TowerMark XYS system for this type of application integrates custom software specifically developed to dialogue with enterprise ERP systems. This is not a generic interface, but a tailored solution that replicates the operational logic already established in production.

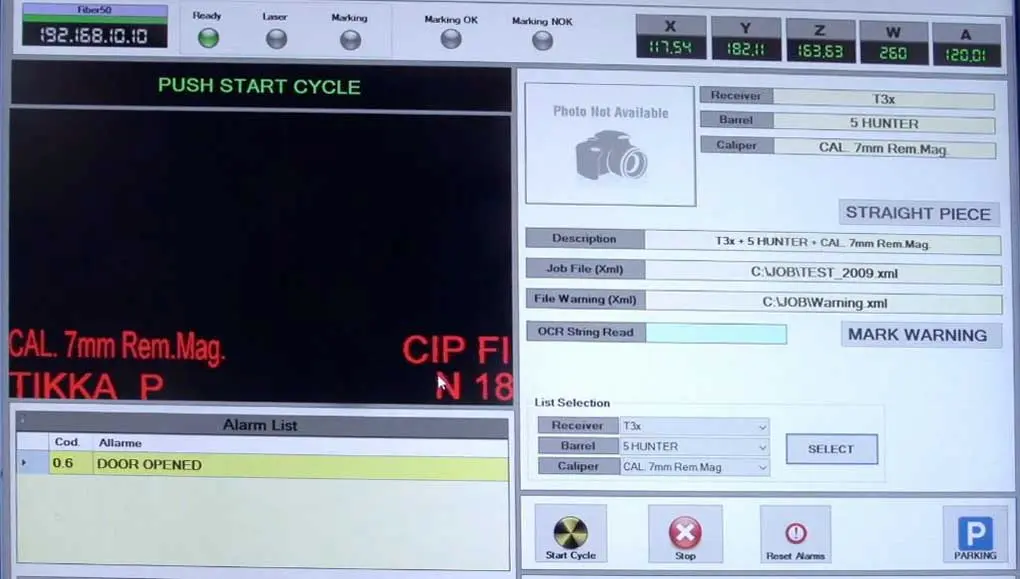

The operator interacts with a simplified interface that receives all the necessary information directly from the company management system: the code of the part to be marked, the progressive serial number, any additional data to be engraved. The system automatically generates the marking file, eliminates the risk of manual typing errors and ensures that each part is uniquely identified and traceable within the company database.
Bi-directional integration with ERP also makes it possible to automatically record the marking, creating an indissoluble link between the physical component and its digital production history. Each time a receiver is marked, the system updates the ERP by communicating the assigned serial number, the operator who performed the processing, and the date and time of the operation. This complete traceability is essential to comply with industry regulations and to manage any subsequent recalls or audits.
OCR verification: certified quality in real time
The presence of an integrated OCR (Optical Character Recognition) vision system completes the picture of the TowerMark XYS solution for applications in rifle manufacturing. After each marking, the system automatically captures an image of the engraved code and verifies its readability through optical character recognition algorithms.
This automatic check allows immediate detection of any problems in the marking: partially illegible characters, distortions due to variations in the material surface, contrast problems. If the OCR system fails to read the marked code correctly, the operator is alerted and can take action before the part leaves the marking station. This approach prevents nonconforming components from continuing through the production cycle, reducing scrap and rework.

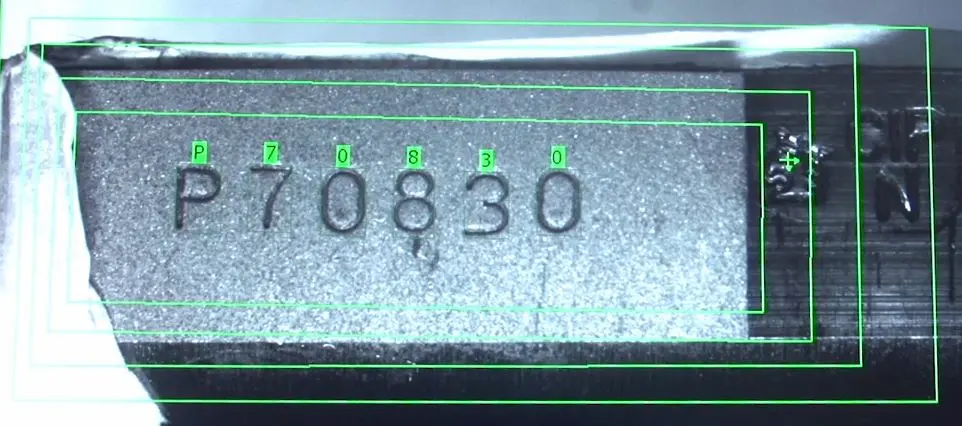

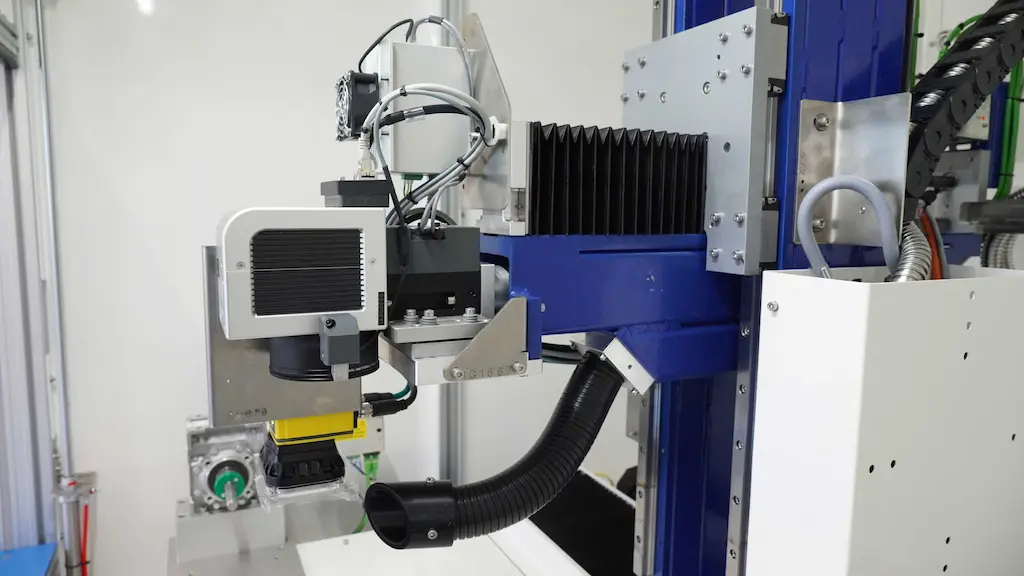

The vision system uses an industrial camera mounted integral with the laser head, which captures high-resolution images of the marked area. Processing software compares the recognized characters with those expected from the marking file, reporting any discrepancies. The verification takes place in seconds, without slowing down the production cycle, and the results are stored along with other process data, creating a complete and certifiable record of the quality of the work performed.
OCR verification becomes particularly relevant when marking alphanumeric codes in plain text, as is often required in the rifle manufacturing industry. Unlike Data Matrix or QR codes, where a single damaged element can compromise the reading of the entire code, alphanumeric characters can have partial degradations that make them difficult to read while maintaining some similarity to the correct character. The OCR system identifies these critical situations before they become a problem during subsequent verification or documentation steps.
Smoke and dust management: safe work environment
Laser marking on metallic materials inevitably generates fumes and particulates that must be captured and eliminated to ensure operator safety and preserve the integrity of the system’s optical components. The TowerMark XYS integrates a three-stage vacuum system specifically sized for intensive industrial applications.

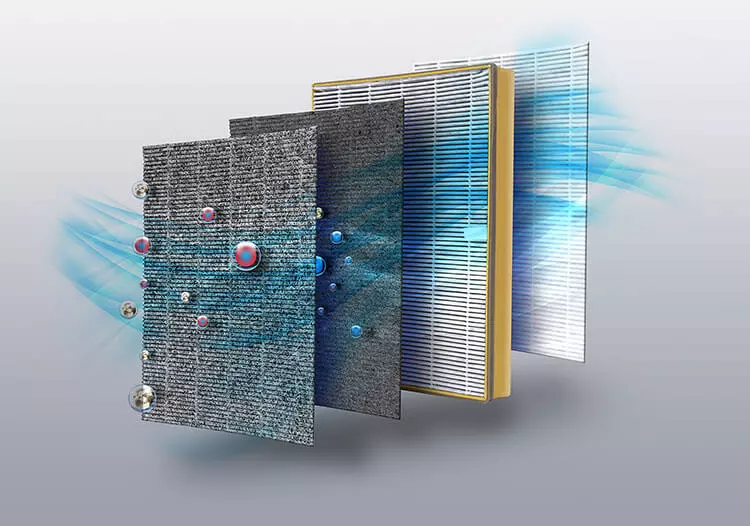

At the heart of the suction system is a side channel pump with a die-cast aluminum structure, which ensures high-speed air flow within the working chamber. The sucked air passes through a three-stage progressive filtration: a first stage of coarse filtration captures the largest particles, a HEPA H14 filter traps fine dust down to 0.3 microns, and an activated carbon element eliminates any residual odors. This system ensures that the air returned to the work environment is completely clean and safe.
A particularly popular feature is thecomplete integration of the vacuum system into the machine base. There is no need for bulky external devices or complex connections: everything is contained in a single compact structure. Electronic filter control constantly monitors the degree of saturation and alerts the operator when replacement is needed, preventing drops in efficiency and ensuring consistent performance over time.
In rifle manufacturing, where components are often marked after machining operations, the presence of residual cutting oils or other substances on the surface can increase the amount of fumes generated during laser marking. The integrated vacuum system is sized to handle even these more severe conditions, ensuring a clean and safe working environment at all times.
Safety and regulatory compliance
The TowerMark XYS system is designed as a Class I laser machine, the safest category according to European laser safety regulations. This means that all laser radiation is completely confined within the protective structure of the machine, and there is no risk of exposure to the operator during normal operation.
Access to the working chamber is protected by an automatic pneumatic door equipped with a safety sensitive edge. When the operator presses the close button, two pneumatic cylinders move the door in a controlled manner. The sensitive edge detects any obstacles during closing and, if contact is made, immediately stops the movement and reverses the stroke, reopening the door. This system prevents any risk of crushing or entrapment.
Regulatory compliance is ensured not only for laser safety aspects, but also for European machinery directives and ISO 9001 and ISO 14001 quality certifications. The technical documentation supplied with the system includes all certificates of conformity, language operating manuals and CE declarations required for use in regulated industrial environments.
Operational advantages in rifle production
The adoption of an integrated solution such as TowerMark XYS in rifle production brings concrete and measurable benefits. The first is the reduction of traceability errors: direct integration with ERP and automatic OCR verification virtually eliminate the possibility of assigning incorrect or illegible codes to components. This results in more reliable documentation and lower risks of noncompliance during audits and inspections.
Operational flexibility is another significant benefit. The same system can handle components of different shapes and sizes by simply changing the clamping fixtures and loading the appropriate marking program. This reduces the need for multiple investments in dedicated machines and simplifies the management of production changes.
From a process quality perspective, the combination of mechanical precision, automatic control and management integration ensures repeatable and documentable results. Each marked component has exactly the same characteristics as the previous one, regardless of the operator running the machine or the time of day when machining is performed. This consistency is critical when producing components for uses where reliability and traceability are prerequisites.
