Integration of Computer Vision with Laser Marking Systems in Aerospace

In the aerospace industry, marking complex components has always represented a significant technical challenge. Curved surfaces, articulated geometries and tight tolerances dictate solutions that go beyond traditional mechanical positioning systems. The need to ensure legibility and compliance with SAE AS9132 and MIL-STD-130N standards on components such as turbine blades, engine housings and structural parts has driven the industry toward integration between laser marking and advanced machine vision systems.

Compared to conventional methods that require dedicated fixtures for each geometry, machine vision-based technologies enable automatic adjustment of position, orientation and marking parameters to the actual surface of the component. This approach eliminates setup time, reduces scrap, and enables accurate markings even on small batches or custom production, where the implementation of dedicated fixtures would be economically unaffordable.

The limitation of traditional positioning systems

In most aerospace marking departments still operating with traditional methods, component placement is done by custom-designed mechanical fixtures. Each part family requires a specific fixture to ensure dimensional and angular repeatability within tolerances typically less than ±0.1 mm. For components with complex geometries or nonplanar surfaces, this approach has several critical operational issues.

In practice, the design and fabrication of a dedicated fixture requires development time ranging from 2 to 6 weeks, with costs that can exceed 5,000-15,000 euros for articulated geometries. Changing setups between different parts involves downtime of 15-30 minutes, significantly impacting OEE (Overall Equipment Effectiveness) in multi-product settings. It becomes clear that immediate verification of correct part placement becomes critical: even minor positioning errors can lead to out-of-specification markings, resulting in part rejection and the need for rework or replacement.

How much does code location affect maintenance and traceability performance? According to SAE AS9132 guidelines, the Data Matrix code should be placed in areas accessible for reading during inspections, avoiding areas subject to high mechanical stress or direct exposure to heat fluxes. Improper placement can compromise readability over the life cycle of the component, defeating the entire traceability system.

Machine vision technologies for adaptive marking

The integration of machine vision systems with laser markers has introduced a paradigm shift in the aerospace manufacturing process. State-of-the-art technologies enable automatic detection of component position, orientation and morphology, adapting marking parameters in real time without manual intervention. Three main approaches characterize the solutions currently available on the market.

Vision systems with multi-field dynamic calibration

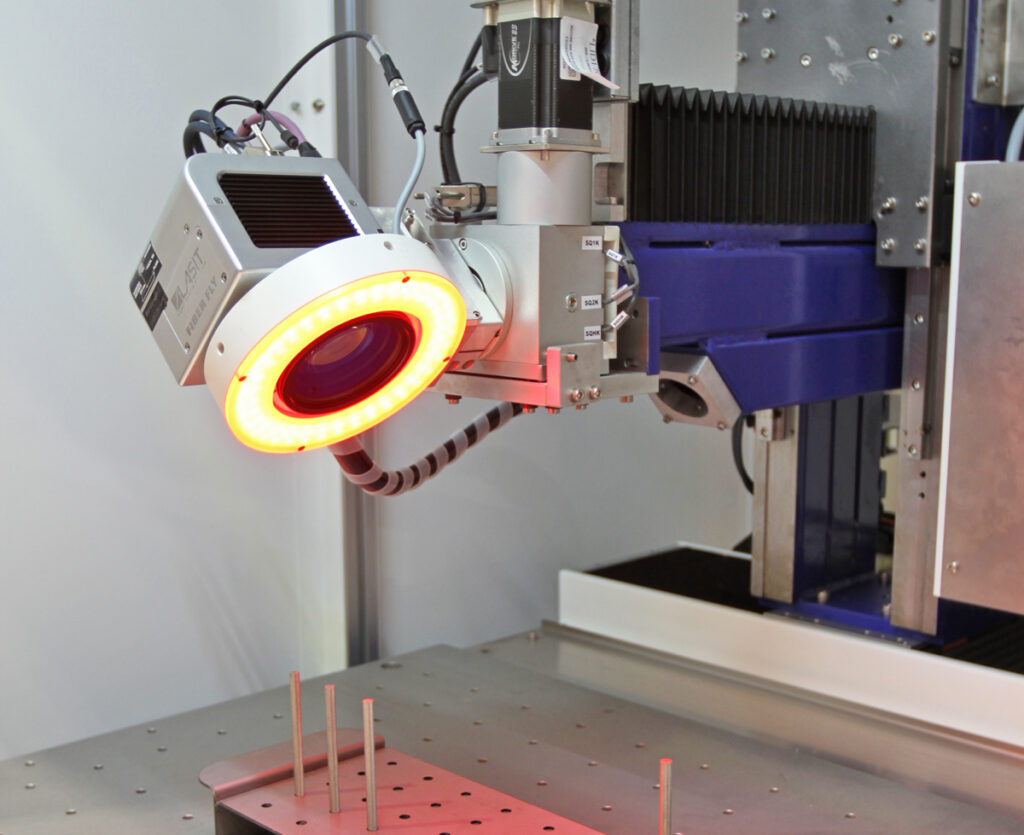

Integrated machine vision systems with dynamic calibration use high-resolution cameras (typically 5-12 megapixels) to capture the complete image of the part within the work area. Through pattern recognition and geometric correlation algorithms, the system identifies reference features (holes, edges, reference surfaces) and automatically calculates marking coordinates with respect to the actual geometry of the part.

Typically, the process involves an initial calibration phase in which the 3D CAD model of the component is loaded and nominal marking positions are defined. During production, the system compares the acquired image with the reference model, automatically compensating for dimensional variations, positioning errors and elastic deformations of the component. Repeatability accuracy reaches values of less than ±0.05 mm over working ranges up to 300×300 mm.

This technology is particularly effective on planar components with complex geometries, such as structural panels, brackets, and reinforcing plates, where the marking must be placed with millimeter accuracy with respect to critical mechanical features.

Intelligent positioning modules on curved surfaces

For components with curved or cylindrical surfaces, intelligent and adaptive positioning systems introduce three-dimensional analysis capabilities via stereoscopic vision or 3D laser scanning. The system captures the surface profile at the intended marking area and automatically calculates the necessary correction parameters: focal distance, beam angle, scanning speed and laser power.

In practice, automatic calibration reduces downtime and improves repeatability on successive batches of the same component. On turbine blades with complex airfoils, these modules allow Data Matrix codes to be marked on surfaces with varying curvatures while maintaining compliance with the readability requirements of MIL-STD-130N (grade A, with minimum 2.5/4.0 verification according to ISO/IEC 16022).

Dynamic focal distance compensation, a critical element for fiber lasers with limited depth-of-field (typically ±2-3 mm), is achieved by piezoelectric autofocus systems with response times of less than 100 ms. This ensures uniform contrast and depth of marking even on surfaces with elevation changes up to ±5 mm from the nominal plane.

Instant marking mode without manual setup

Instantaneous and interactive marking mode without manual setup represents the latest evolution of integrated vision-laser systems, geared toward maximum operational flexibility. The operator positions the part in the work area without precise orientation constraints, and the system automatically identifies the part via pre-loaded 3D model databases or via real-time geometric recognition.

Once the component is recognized, the software automatically proposes marking positions that conform to engineering specifications, allowing the operator to confirm or modify the selection via an intuitive graphical interface. The complete recognition-position-marking cycle takes less than 15 seconds for standard components, with 70-80% reduction compared to fixture methods.

This mode of operation is ideal for small batch production, MRO (Maintenance, Repair and Overhaul) and post-fabrication marking applications where the variety of parts handled makes the use of dedicated fixtures impractical. The system’s flexibility allows it to handle up to 200-300 different part numbers without the need for physical setup.

Operational advantages in the aerospace manufacturing environment

The adoption of integrated vision-laser systems results in measurable benefits on several production performance indicators. In most documented cases, departments that have transitioned from traditional systems to adaptive technologies have experienced significant improvements.

Reduced setup time is the most immediate benefit: by eliminating the need for fixtures and zeroing out manual alignment time, product changeovers are reduced from 15-30 minutes to less than 2 minutes, directly impacting hourly throughput. For multi-product departments with 8-12 setup changes daily, this translates into a recovery of 2-3 productive hours per day.

Quality compliance is improved by automatic verification of post-marking readability. The integrated systems scan and tag Data Matrix code immediately after marking, according to ISO/IEC 15415 parameters, allowing immediate rework in case of nonconformity. This eliminates the need for deferred quality control and dramatically reduces rejects for nonconforming markings detected later in the process.

On the traceability and documentation front, advanced systems automatically record marking parameters, code grading, pre/post-process images and positioning coordinates, generating reports that comply with AS9100 and NADCAP requirements. This automated documentation eliminates manual transcriptions, reduces data entry errors and ensures objective evidence for audits and noncompliance investigations.

Future prospects: artificial intelligence and machine learning

Recent developments integrate machine learning and deep learning algorithms into vision systems, enabling advanced recognition capabilities and adaptive optimization of marking parameters. Convolutional neural networks (CNNs) are trained on databases of thousands of marked components, learning complex correlations between geometric features, materials, and optimal laser parameters.

In industrial practice, these “smart” systems can automatically suggest corrections to process parameters according to deviations detected in real time, such as changes in surface reflectivity, presence of contaminants or localized material defects. Continuous self-learning progressively improves system performance, reducing manual interventions and stabilizing the process in the medium to long term.

The integration of machine vision and laser marking represents a necessary transformation for aerospace departments aiming for production efficiency, operational flexibility and strict quality compliance. Vision technologies with dynamic calibration, intelligent positioning on curved surfaces, and instant interactive marking eliminate constraints of traditional systems, enabling precise markings on complex geometries with dramatic reductions in time, cost, and scrap. In an industrial environment increasingly focused on agile manufacturing and total traceability, these systems are the new gold standard.
