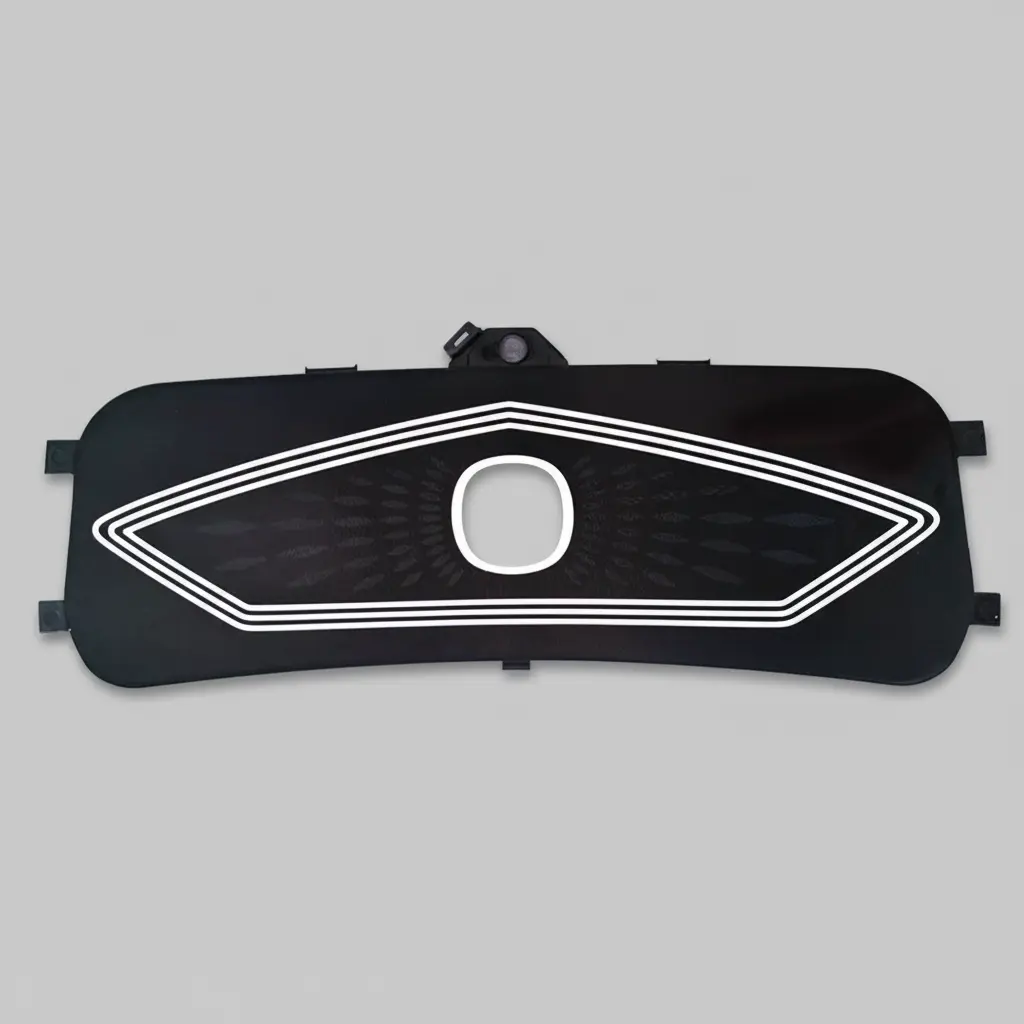

In theautomotive lighting industry, selective removal of protective coatings and functional coatings is a critical step in the manufacturing process. Laser decoating has established itself as the most reliable solution for ensuring precision, repeatability and quality in optical components destined for increasingly complex and high-performance optical assemblies.
Controlled laser ablation makes it possible to remove layers of paint, reflective coatings, or protective materials without compromising the underlying substrate, a key requirement when working on polycarbonate, PMMA, or composite materials used in modern automotive headlights. The technical challenge is to calibrate parameters such as fluence, repetition rate, and scan speed to achieve complete and uniform removal while avoiding thermal damage or micro-fractures that could compromise the optical performance of the finished component.
Why decoating is necessary in the automotive industry
Selective coating removal in automotive lighting components meets several technical and manufacturing needs. First, many
A second aspect concerns surface preparation for subsequent assemblies. In many cases, protective coatings applied during intermediate processing steps must be removed in areas intended for laser welding, bonding, or overprinting. The precision of laser decoating eliminates the need for complex masking and drastically reduces cycle times compared to traditional chemical or mechanical processes.
In addition, the evolution toward adaptive lighting systems and multifunctional optical assemblies has introduced increasingly complex geometries with sharp transition zones between coated and uncoated areas. Only a laser process can ensure defined edges with tolerances in the tenths of a millimeter range while maintaining the optical integrity of adjacent surfaces.
MOPA and picosecond laser technologies: which one to choose for coating ablation
The choice of laser source is the first critical parameter for an effective decoating process.
When working on reflective metal coatings or dielectric multilayers, however, picosecond sources become the preferred solution. With pulse durations on the order of 10-15 ps, the laser-matter interaction occurs in the nonthermal regime: energy is deposited so rapidly that the material is removed by direct sublimation before the heat can diffuse into the surrounding substrate. This approach virtually eliminates thermally altered zones (HAZs) and allows very thin coatings or heat-sensitive substrates to be worked on without any risk of damage.
The choice between MOPA and picoseconds thus depends on the type of coating, the thickness to be removed and the quality specifications required. Hybrid configurations are found in many automotive production plants, where the same machine can mount different sources used depending on the component to be processed, providing maximum production flexibility.
3-axis heads for extended working ranges: precision without compromise
One of the most complex challenges in decoating large automotive components concerns maintaining accuracy over extended working ranges in the order of one square meter. Conventional galvanometer heads reach fields of about 300-500 mm, forcing solutions with mechanical handling of the part or laser head. However, these configurations introduce coupling points between different machining zones, creating visible discontinuities on continuous patterns or irregularities in overlaps.
3-axis heads are the technological answer to this limitation. These systems use dynamic optics that pre-compensate for laser beam aberrations over very large fields, maintaining virtually constant spot size and quality over the entire working area. A 3-axis head can cover 1000×1000 mm fields with a fixed head, completely eliminating coupling problems and ensuring perfect continuity on patterns that cross the entire component.
The advantage becomes apparent when complex patterns or selective removals have to be made on large lights: the entire machining process takes place without interruption, with high scanning speeds and absolute repeatability. Positioning accuracy is maintained in the range of ±20 μm over the entire range, a level of accuracy impossible to achieve with multi-axis mechanical systems. In addition, the absence of moving parts drastically reduces maintenance costs and eliminates set-up times between different machining operations.
Continuous power metering systems: guaranteed process stability
An aspect often underestimated in laser ablation processes concerns the stability of the power delivered over time. Laser sources, no matter how reliable, can undergo power variations related to aging of the active medium, thermal fluctuations, or progressive degradation of the focusing optics. Even small variations, in the range of 3-5%, can result in visible defects: incompletely removed areas or, conversely, substrate damage due to overexposure.
Continuous power metering systems built into the processing head monitor laser beam power in real time and implement automatic corrections to keep process parameters constant. A beam splitter diverts a small percentage of the beam to a calibrated sensor, which measures the instantaneous power by comparing it with the set target value. When a deviation is detected, the control system automatically intervenes by adjusting the source current or pulse duty cycle.
This closed control strategy ensures that each machined component receives exactly the same energy dose, regardless of when it is processed during production. For high-volume automotive production, where traceability and repeatability are certification requirements, continuous power metering becomes an indispensable tool to keep process capability (Cpk) within the limits required by manufacturers.
In addition, these systems allow early detection of any abnormalities or degradation of optics, triggering preventive maintenance alerts before production rejects occur. The correlation between measured power and ablation quality can be used for continuous process optimizations, building validated process curves and progressively reducing the safety margins initially applied.
Process parameters and optimization for automotive coating
The optimization of a laser decoating process requires the calibration of several interdependent parameters. The
Repetition frequency directly influences throughput: high frequencies (in the range of 100-500 kHz for MOPA, up to 1 MHz for picoseconds) allow higher scanning speeds. However, frequencies that are too high can lead to local thermal buildup, especially on thermoplastic materials. The optimal choice therefore depends on the balance between process speed and required surface quality.
Scan pitch (distance between successive passes) determines the overlap between consecutive laser traces. An overlap of 50-70% ensures uniformity of removal, but values that are too high unnecessarily increase cycle time. For critical applications, where post-ablation surface roughness must remain under stringent specifications, multi-pass strategies with reduced pitch and moderate fluence are adopted.
Scanning speed completes the picture of key parameters, determining the interaction time between beam and material. Typical speeds for automotive decoating are between 500 and 3000 mm/s, with significant variations depending on the laser technology used and the coating thickness to be removed.
Quality control and process validation
In the automotive context, every process must be validated to rigorous standards. Laser decoating is no exception: manufacturers require objective evidence of process capability, complete documentation of parameters, and traceability systems that link each component to processing data.
Integration of post-process vision systems allows automatic verification of ablation completeness, identifying any residual coating or surface anomalies. Image processing algorithms analyze contrast, uniformity, and geometric correspondence with the reference CAD drawing, automatically discarding nonconforming components.
For transparent or semi-transparent coatings, where visual inspection is insufficient, laser-induced breakdown spectroscopy (LIBS) techniques or spectral reflectance measurements are adopted, capable of detecting material residues with thicknesses in the micrometer range. These systems are integrated into the production line for 100 percent inspections, ensuring zero defects in the output.
Process documentation includes qualification curves that correlate laser parameters to result characteristics (roughness, completeness of removal, absence of damage), allowing rapid corrective action in case of process drifts. Integration with Manufacturing Execution System (MES) systems ensures full traceability required by IATF 16949 regulations.
Competitive advantages of laser decoating over traditional methods
Compared with chemical coating removal processes, laser ablation eliminates the use of solvents, reducing environmental impact and special waste management costs. There are no limitations related to chemical compatibility between solvent and substrate, and process times are reduced from tens of minutes to a few seconds per component.
Compared with mechanical methods such as sandblasting or abrasion, the laser offers absolute selectivity: only programmed areas are processed, with no risk of accidental damage. The absence of contact eliminates tool wear and particle contamination, two critical issues for precision optical components.
Programming flexibility is another strategic advantage: drawing changes or customizations are implemented by simply modifying the CAD file, without investment in dedicated jigs, tools or fixtures. This aspect becomes crucial in an automotive market increasingly oriented toward diversified production and small batches.
Application laboratory: testing and validation before industrialization
Before implementing a laser decoating process in production, the testing and validation phase is crucial to identify optimal parameters and avoid costly errors during scale-up. The availability of a well-equipped application laboratory makes it possible to test different technology configurations, compare results and build a solid knowledge base for the industrial process.
Our application laboratory has more than 30 laser sources of different types (fiber, MOPA, picosecond, femtosecond, CO₂, UV), allowing us to evaluate which technology offers the best results for each specific coating-substrate combination. The presence of 3-axis heads with working ranges up to 1000×1000 mm makes it possible to replicate exactly the operating conditions that will be found in production, validating feasibility on actual full-size components.
For qualitative characterization of the results, the laboratory integrates a spectrophotometer that analyzes the optical properties of the treated surfaces, verifying that ablation has not altered transmittance or reflectance in adjacent areas. This instrument is particularly valuable when working on transparent or semi-transparent components, where even minor surface alterations can compromise the performance of the optical assembly.
The laboratory testing phase allows the construction of comprehensive design of experiments (DoE), mapping the influence of each parameter on final quality and identifying the optimal process window. Samples produced during these tests can be subjected to accelerated aging tests, adhesion tests and microscopic analysis, providing all the evidence needed for qualification with automotive manufacturers.
This early testing and validation capability drastically reduces the setup time of industrial plants and minimizes the risk of nonconformity during production ramp-up phases. Technology transfer from the laboratory to production thus takes place with parameters already optimized and validated, accelerating time-to-market and guaranteeing the required quality right away.
