The dental industry has extremely stringent marking requirements. The materials used-grade 4 and 5 titanium, chromium-cobalt alloys, and 316L stainless steels-require technologies that fully preserve their biomechanical characteristics and biocompatibility.
The main challenges include:
- Marking on micrometer surfaces of screws (diameters <3mm thick)
- Preservation of bioactive surfaces of osseointegrable implants
- Maintaining structural integrity of instruments subjected to high mechanical stress (torque >35Ncm)
- Compliance with MDR 2017/745 and UDI requirements
- Resistance to hundreds of sterilization cycles (134°C, 2.1 bar)
- Traceability of multi-platform implant system components
Picosecond laser technology: ultra-fast interaction for precision markings
Ultrashort pulse (picosecond) laser technology is the cutting edge for marking dental devices, offering substantial advantages for surgical instruments and implant components:
Technical parameters and interaction with dental materials
- Pulse duration: 3ps, with average power of 50W or 100W
- Photophysical interaction: “cold” ablation instead of thermal fusion
- Thermally altered zone (HAZ): <5μm, critical for preserving mechanical properties
These characteristics prove decisive when marking:
- Surgical burs with titanium nitride coatings
- Torque wrenches with calibrated tolerances
- Implants with microtextured bioactive surfaces
Advanced optical systems and integration with imaging technologies
3-axis scanning head with dynamic focus control
Marking dental components requires sophisticated optical systems. LASIT solutions integrate scanning heads with:
- Dynamic focal correction: maintains optimal focus on curved surfaces such as the coil of an implant
- Three-dimensional correction range: up to ±35mm in the Z axis, essential for complete surgical kits
- Minimized spot: diameter <20μm, critical for readable DataMatrix on miniaturized components
TTL (Through The Lens) Integrated Vision System
Accurate positioning is ensured by the TTL vision systems they provide:
- Resolution: up to 5μm/pixel for alignment on prosthetic components
- Shared optical path: the system uses the same laser beam path, ensuring zero parallax error
- Reduced process time: elimination of translation movements between vision and marking
- Pattern recognition algorithms: automatic implant platform identification
- Real-time dimensional verification: quality control according to AIM-DPM standards
Specific applications in the dental industry
Marking of complete implant systems
For implant system manufacturers, laser marking ensures traceability of the entire workflow:
- Implants: batch marking on the platform, without interfering with osseointegrable surfaces
- Abutment: marking of diameter, transgingival height and angle
- Tightening screws: marking the maximum allowable torque
- Dedicated tools: marking references for correct prosthetic orientation

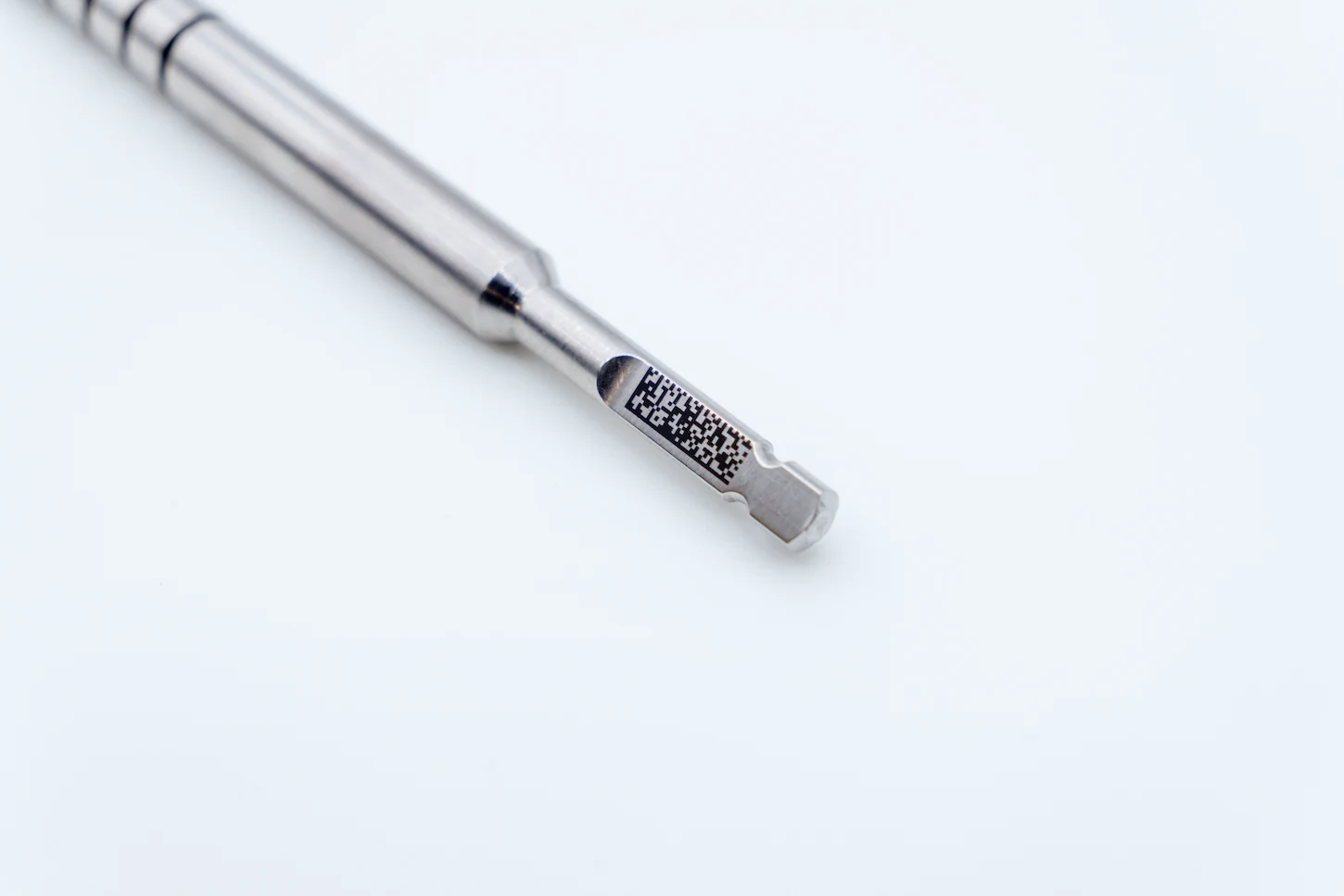

DataMatrix marking on these components requires extreme precision, with cell sizes down to 0.1mm and tolerances of less than 0.02mm.

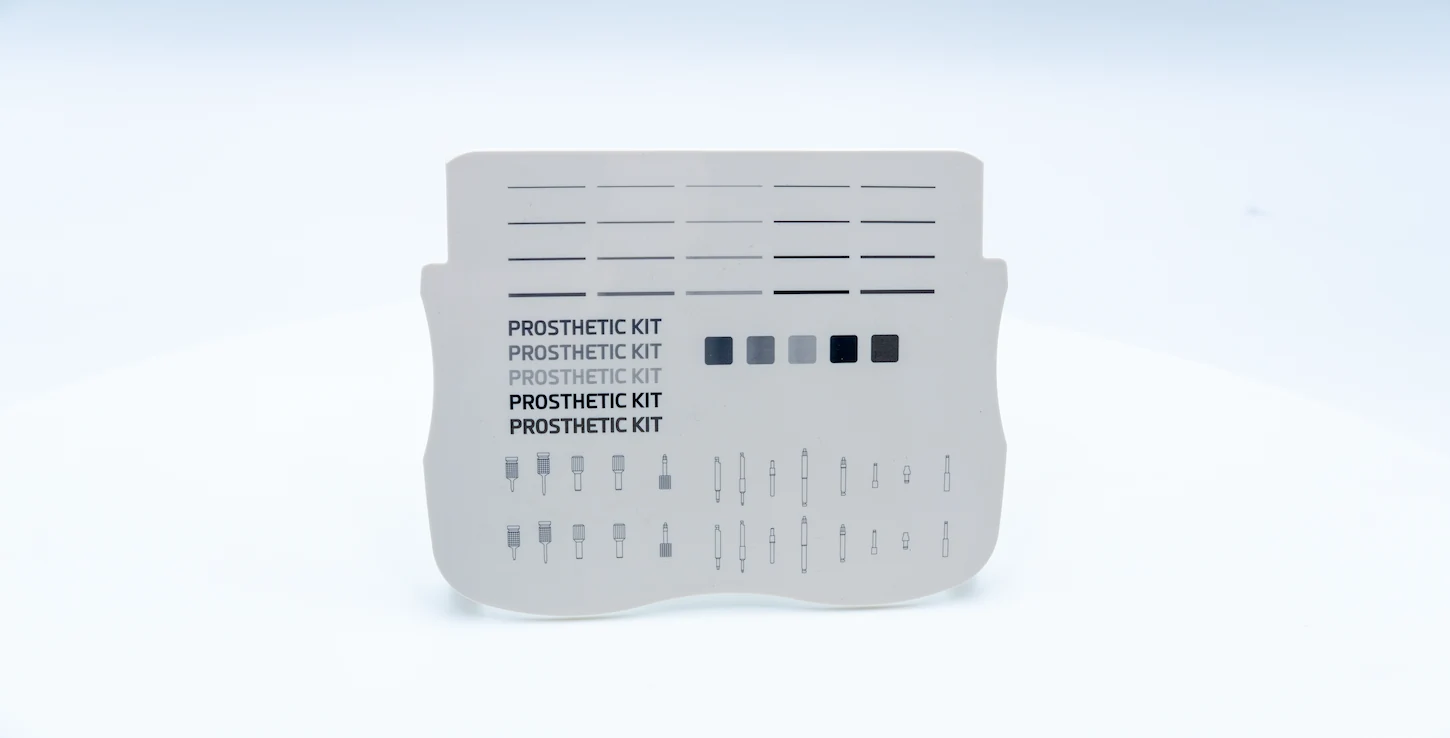

Marking of complete surgical kits
Implant surgical kits require the marking of instruments with different geometries:

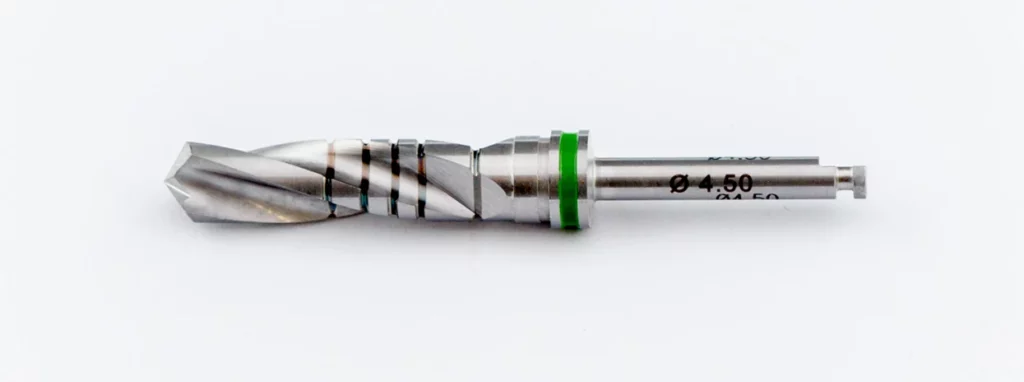

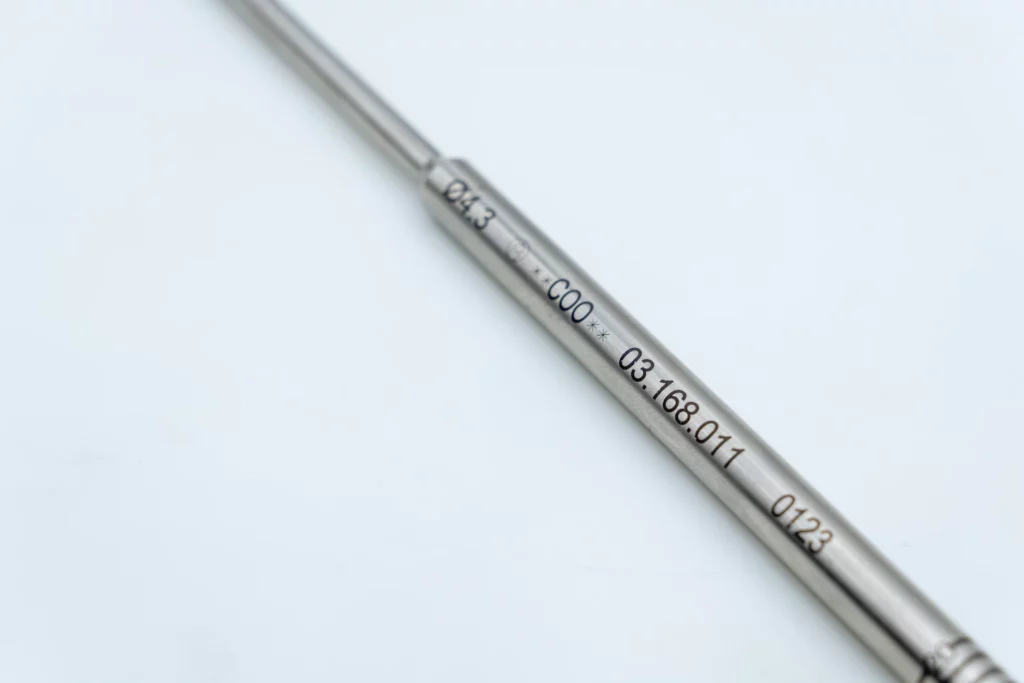

- Surgical burs: marking diameters (2.0-5.5mm) and working depths (6-15mm)
- Tapping: thread pitch marking and platform compatibility
- Screwdrivers: marking the type of connection (hex, torx, square)

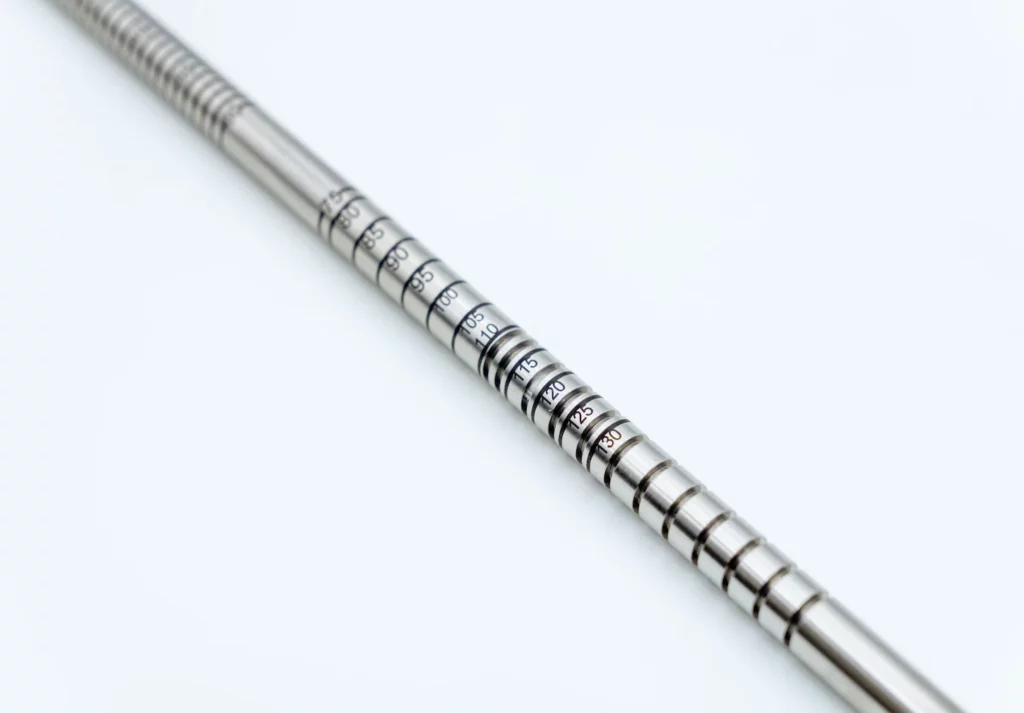

- Torque ratchets: graduated scales for torque control
UDI traceability on orthodontic instruments.

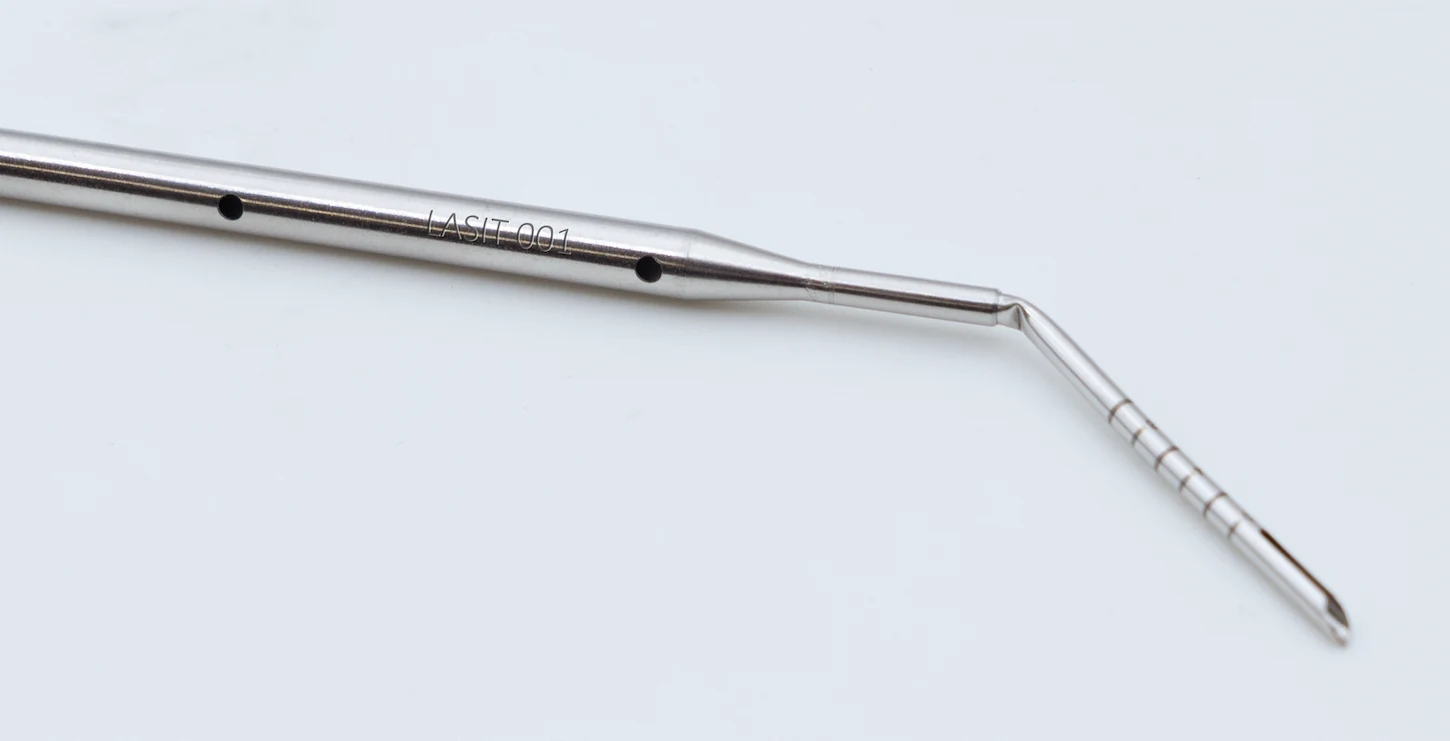

Multipurpose orthodontic instruments require permanent UDI markings with specific characteristics:
- Depth calibrated to 5-10μm to avoid structural compromise
- Controlled surface texture to prevent biofilm accumulation
- Resistance to enzymatic detergents in washer-disinfectors
- Compatibility with citric and nitric passivation tests
Technical performance of picosecond laser marking
Corrosion resistance and biocompatibility
Picosecond laser marking maintains biocompatibility parameters unchanged:
- Passes 400 hours of salt spray test (ISO 9227)
- Maintains crevice corrosion resistance (ASTM F746)
- Does not alter the cytotoxicity of materials (ISO 10993-5)
- Preserves biocompatibility characteristics (ISO 10993-1)
Readability verification according to ISO/IEC 15415 standard
Readability of DataMatrix codes is evaluated with specific requirements:
- Minimum grade “B” for overall quality
- Contrast >40% even after 200 sterilization cycles
- Decoding guaranteed with standard scanner
- Verified readability on curved surfaces up to 15° inclination
LASIT solutions optimized for the dental industry
LASIT has developed marking systems specifically for the dental industry:
- FlyRing: rotating spindle system for 360° marking of cylindrical instruments and implants
- CompactMark S: high precision system with 316L stainless steel top for clean room environments
- PowerMark Picosecond: integration laser for automated manufacturing cells
- FlyCAD software with dental module: implant and orthodontic database management
Future Perspectives
Picosecond laser marking represents the state of the art for permanent identification of dental devices, ensuring traceability, safety and regulatory compliance without compromising material properties.
Future trends include integration with blockchain systems to validate the authenticity of prosthetic components and the use of advanced recognition technologies for self-identification of instruments during surgical procedures.
