In the foundry and automotive industries, one of the most complex problems involves marking parts fresh from casting or high-temperature manufacturing processes. Parts can reach temperatures up to 600°C and above, and under these conditions many traditional marking technologies fail or produce inadequate results. In contrast, laser marking, when properly designed, offers a reliable solution even in these extreme situations.
The problem of marking on high-temperature components
When a metal component is pulled off the production line at high temperatures, its surface has special characteristics: active oxidation, dimensional changes due to thermal expansion, and a thermal conductivity that affects the interaction with the laser beam. In these contexts, traditional microdot or inkjet marking becomes impractical, while laser marking can be calibrated to work effectively even on hot materials.
The main advantage of laser marking on hot parts lies in the possibility of integrating this step directly into the production flow, eliminating the waiting time for component cooling. This translates into significant savings in cycle time and material handling, which is particularly relevant in high-volume production settings such as automotive foundries.
How laser marking on high-temperature surfaces works
Laser marking on hot components requires a specific technical approach. The process relies on the use of fiber-optic laser sources with appropriate powers, typically in the range of 50W, 100W, 200W, 300W or up to 500W for the most demanding applications. These high powers are needed not so much to “penetrate” the material as to ensure high enough marking speeds that the quality of the result is not compromised.
When the part is hot, its surface tends to oxidize rapidly. This oxide layer can adversely affect the readability of the marked code, especially if it is a Data Matrix Code (DMC) intended for automated traceability systems. For this reason, the marking must be deep enough to ensure high contrast even after any subsequent treatments such as sandblasting or shot peening.
The optimum depth of engraving generally varies between 0.1 and 0.3 millimeters, depending on the material and the type of heat or mechanical treatment envisaged in subsequent steps. Marking too shallow risks being erased, while marking too deep can compromise the structural integrity of the component or lengthen the cycle time excessively.
Laboratory test: laser marking on aluminum at 300°C
To demonstrate the effectiveness of laser marking on high-temperature components, LASIT conducted a series of documented and verifiable laboratory tests. In one of these tests, available in video format, an aluminum component is heated up to 300°C using a blowtorch. The temperature is continuously monitored by thermopile to ensure realistic and repeatable conditions.
During the test, the laser marker engraves a DMC code on the surface of the component maintained at elevated temperature. The result is a perfectly readable code with high contrast and adequate depth that withstands subsequent cooling cycles without significant alteration. This type of test not only validates the technology, but also demonstrates the LASIT laboratory’s ability to simulate real production conditions and develop customized solutions for specific needs.
The test represents a concrete example of how laser marking can be integrated into complex industrial processes, where high temperatures are a constant and not an exception. Although the documented test reaches 300°C, the methodological approach and equipment used demonstrate the LASIT laboratory’s preparedness to conduct tests even at higher temperatures, up to the 600°C required by the most extreme applications.
Technical advantages of marking on hot parts
Integrating laser marking directly into the production line, without waiting for parts to cool, offers several technical and operational advantages. The first is the reduction in overall cycle time: eliminating the waiting phase for cooling can mean savings of several minutes per part, with significant impacts on overall plant productivity.
The second advantage concerns the quality of the marking itself. Marking on a hot surface allows deeper engravings with optimized process parameters, since the material is more responsive to laser energy. This results in codes that are more resistant to subsequent treatments and greater long-term reliability.
An additional aspect to consider is the reduction of part handling. In many cases, parts are moved several times along the production line: from casting to cooling, from marking to quality control. Consolidating these steps reduces the risk of accidental damage, improves traceability, and simplifies internal logistics.
When to choose high-power lasers: from 100W up to 500W
The choice of laser power depends mainly on two factors: the required marking speed and the required engraving depth. In cases where very fast marking is required, such as for lines with high productivity, the use of 100W, 200W, 300W or even 500W lasers becomes almost mandatory. These powers make it possible to significantly reduce the marking time while still maintaining a high quality of the result.
It is important to clarify that the increase in power is not primarily to “burn” more material, but to distribute the energy more efficiently and quickly. A 200W laser, for example, can complete the marking of a DMC in seconds, where a 50W laser would take much longer. This becomes critical in applications such as VIN code marking on automotive chassis or traceability of die-cast components in foundries, where every second saved is multiplied by thousands of parts.
For the most demanding applications, where extreme speeds or particularly deep engravings on large components are required, LASIT also offers solutions with lasers up to 500W. This configuration represents the top of the range and allows even the most challenging production processes to be tackled, guaranteeing very short cycle times without compromising marking quality.
In addition, the high powers allow the use of longer pulses and higher repetition rates, optimizing the ablation process of the material. This results in more uniform markings with better defined edges and less risk of microfractures or localized thermal stress.
Industrial applications: foundry and automotive

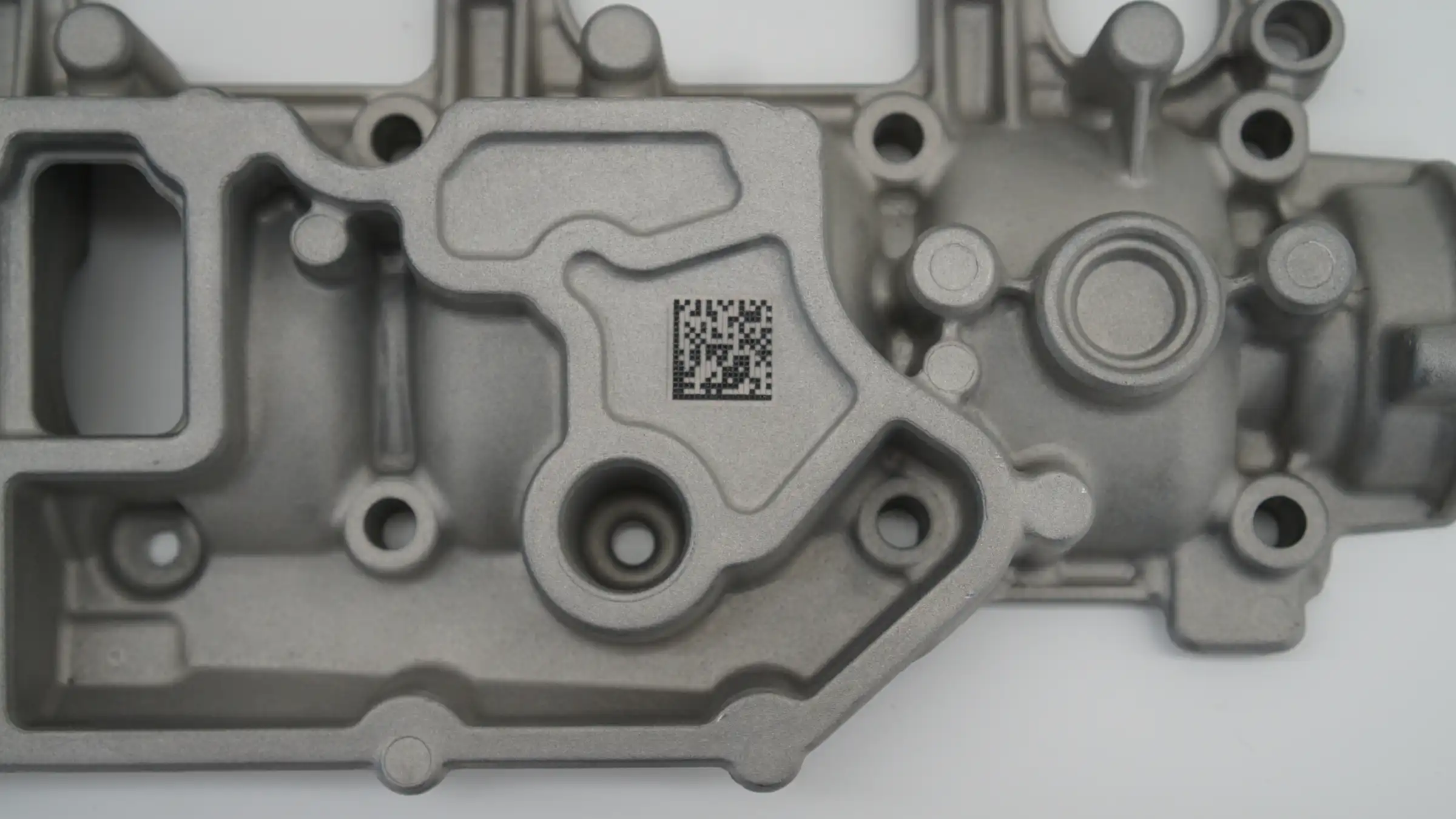

The main applications of marking on hot parts are found in the foundry and automotive industries. In foundries, aluminum or light alloy components are extracted from the casting at very high temperatures and must be marked quickly to ensure traceability throughout the production chain. The ability to mark directly on the hot part eliminates a waiting phase that, in high-volume plants, can result in significant production bottlenecks.
In the automotive industry, marking on hot components is mainly required for engine parts, chassis, brake systems and transmission components. In many cases, regulations require the marking of DMC codes complying with the AIM-DPM standard, with readability grades between A and B. Laser marking on hot parts allows these standards to be met without compromising production line speed.

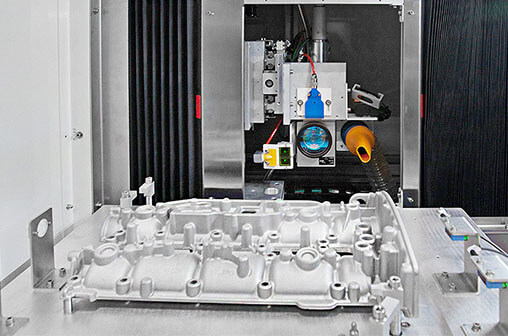

A concrete example is the marking of aluminum engine heads, which come off the casting line at temperatures above 400°C. By integrating a laser marking station immediately after casting, the overall process time can be reduced and component traceability can be improved from the earliest processing stages.
Quality verification and integrated control systems

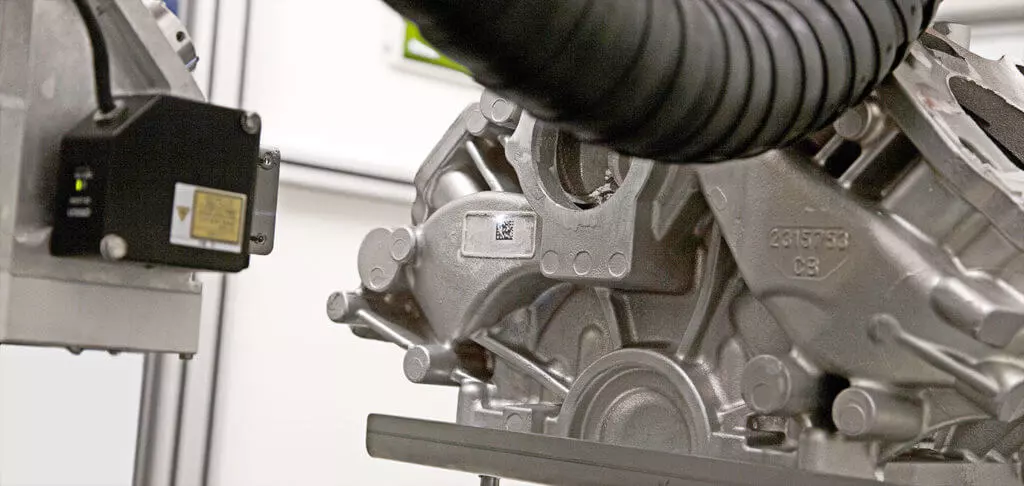

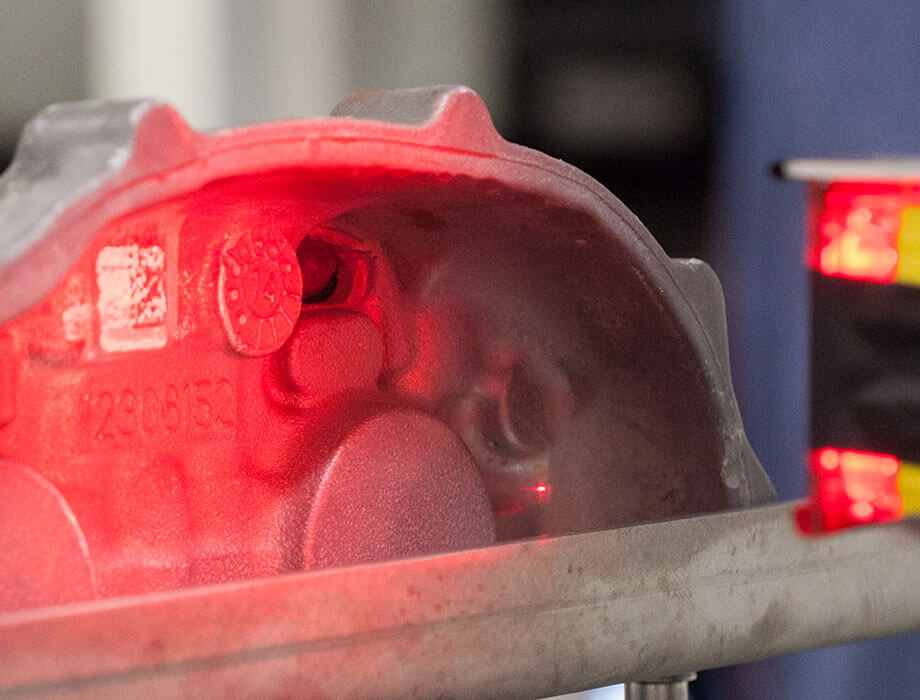

Marking on hot parts also poses additional challenges in terms of quality control. Verifying the readability of the DMC code must take place under less than ideal conditions, with the part still hot and potentially subject to vibration or movement. For this reason, many production lines integrate advanced vision systems, based on Cognex or Dalsa cameras, that verify marking quality in real time according to the AIM-DPM standard.
These systems make it possible to immediately intercept any anomalies, such as incomplete or low-contrast markings, allowing the part to be rejected or remarked before it continues down the line. Integration of these controls is critical to ensure compliance with the quality specifications required by end customers, particularly in the automotive industry where margins for error are very small.
Conclusion: a practical solution for complex industrial needs
Laser marking on hot parts represents an advanced technical solution that meets real and measurable production needs. The ability to integrate this technology directly into high-temperature production lines makes it possible to reduce cycle times, improve traceability and optimize internal logistics. The use of high-power lasers, with configurations up to 500W, combined with integrated quality control systems, ensures reliable results even under extreme conditions.
Laboratory tests conducted by LASIT show that marking on components up to 300°C is technically feasible and industrializable, with results that meet the most stringent quality standards. For applications requiring even higher temperatures, up to 600°C, customized solutions can be developed that take into account the specific characteristics of the material and the production process.
