In the promotional industry, laser marking is an established standard. Almost all manufacturers of mugs, water bottles, branded merchandise, and customized accessories work with active fiber-optic sources, in many cases MOPA, typically in powers between 20 and 50 W. On this basis, technology is no longer the point of discussion: instead, the average power of the source increasingly is.
The reason is simple. Market demands have shifted: deep etchings on ceramics, three-dimensional finishes perceptible to the touch, ablation of coatings on increasingly large batches, decorations that demand both aggressiveness and aesthetic finesse. All applications where a 30 or 50 W MOPA works, but with cycle times and depth of processing becoming a bottleneck. That’s where the 100 W and 200 W MOPA sources come in, built specifically to move up the perimeter of what can be done in an industrial cycle.
The real discriminator: the energy available per pulse
The most relevant technical fact about these sources is not “being MOPA”-a now widespread feature-but the energy per pulse actually available at the output. With the same basic technology, going up from 50 to 100 W and then to 200 W average power means, in practice, having significantly more energy per pulse, with all that that implies in terms of beam-material interaction.
This surplus energy is not an end in itself parameter. It translates into two operational capabilities that, in promotional, make all the difference. The first is processing materials and thicknesses that with lower powers remained out of reach: ceramic glazes to be deeply etched, thick coatings on metal substrates, multilayer coatings. The second is the ability, by exploiting fine modulation of speed, frequency, percent power and pulse width, to adjust downward the deposited energy whenever needed. In other words, a 100 or 200 W source does not force you to work at full power all the time: it allows you to choose whether to be aggressive or impalpable depending on the desired result. This is exactly the opposite of the typical problem of those working with undersized sources: there, simply, some effects remain unattainable.
Ceramics: power opens up previously inaccessible processing
The case of mugs and glazed ceramic cups is probably the one where the jump in power becomes most obvious to the end customer. With a 30 or 50 W MOPA, one acts essentially on the surface layer of the glaze, achieving whitening or color removal effects depending on the composition. The graphic result may be good, but the marking remains two-dimensional.
With 100 W, and even more so with 200 W, you enter a different regime: the density of energy concentrated on the working point is sufficient to remove the glaze in depth and affect the ceramic substrate, generating engravings with a relief perceptible to the touch and visible against the light. It becomes possible to create “hollowed-out” logos, textured backgrounds, contrasting matt/gloss decorations, and sculpted finishes. These are processes that until yesterday belonged to other technologies, slower or less flexible, and that today enter the perimeter of the industrial laser while maintaining the repeatability and speed of set-up typical of digital. It is not a matter of “doing better” what was already being done: it is a matter of doing new things, simply because the energy that is needed is now there.

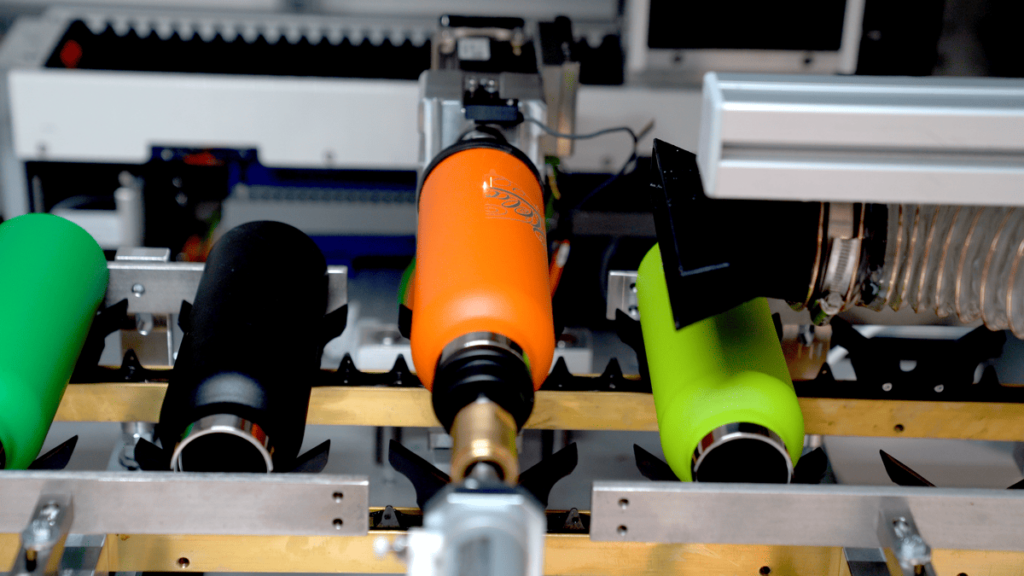

Water bottles: power as a productive factor
On water bottles, thermos flasks, and coated metal items, the effect of power is measured in a different but no less relevant way: in cycle time. Coating ablation is a process directly proportional to the energy that can be deposited in the unit of time. On industry-standard substrates, our laboratory tests show clear differences:
- a 100 W source completes the cycle in about half the time required by a 50 W;
- compared with a 30 W, the time is reduced to about one-third;
- with the 200 W, the machining window narrows further, modulating the advantage according to the machine kinematics and part geometry.
On typical batches of a seasonal promotional order, we are talking about hundreds or thousands of pieces: the difference in time per piece translates into a significantly different daily production capacity, without intervening on staffing or kinematics. It is worth pointing out an often overlooked point: having more power does not necessarily mean working faster. It also means being able to choose to work smoother, lowering the percentage of source usage to achieve cleaner logo edges, superior surface homogeneity, and no haloing on the coating. Excess power thus becomes an expendable reserve of quality when needed.
Other applications where power makes the leap
Beyond ceramics and flasks, the 100 W and 200 W find their way into several other areas of promotion:
- Relief engraving on key chains, medals, metal gadgets where the tactile effect is part of the perceived value of the product;
- Processing on multilayer painted surfaces for technological accessories and multi-material objects, where ablation requires handling non-trivial thicknesses;
- High-contrast markings on thick anodized aluminum and on steel treated with special finishes;
- Combined cycles of ablation and bleaching performed in a single machine pass, thanks to the ability to handle very different parameters between scans.
Three integration configurations, one power choice
Once it is established that power is the central element, the choice of system configuration becomes an operational consequence. The same 100 or 200 W source lends itself to three configurations of use: as an integration laser, to be installed in existing robotic cells or automatic lines; as a simple stand-alone machine, manual or semi-automatic, for those beginning a path of internalization or managing small to medium productions; or in combination with vertical machines dedicated to promotional, such as Polaris and TowerSlide, where the kinematics are optimized for rapid loading and for the treatment of cylindrical surfaces typical of mugs and flasks.
The latter combination is one in which power expresses its greatest potential: a machine built to feed the laser with a steady stream of parts, coupled with a source capable of processing them at the required rates, avoids the classic bottleneck that emerges when a high-performance machine is working with an undersized source.
In summary
In promotion, MOPA technology is now a given. What really discriminates marking solutions today is the average power of the source. Going up to 100 W or 200 W doesn’t just mean going faster: it means accessing processes-deep engraving on ceramics, ablation of thick coatings, three-dimensional decorations-that with lower powers are simply not slowed down, they are out of reach. If you work with heterogeneous catalogs and want to cover both refined aesthetic finishes and more scenic effects with a single machine, today it is the higher power range that sets the benchmark, regardless of the configuration – integrated, stand-alone or combined with vertical machines – with which you choose to install it.
