In the world of promotional branding, the visual result is the product. A badly engraved logo, an uneven color, a line that blurs at the corners of the field: for those managing a brand or a line of custom gadgets, each of these flaws becomes a problem of image, waste, and hidden costs. The challenge is to achieve consistent aesthetic performance on very different materials-glass, technical plastics, metals with coatings, wood-while at the same time maintaining productivity commensurate with typical industry volumes.
In this scenario, the combination of a 20W UV laser and a Falcon827 prescan scan head represents one of the most interesting technical leaps in recent years. These are not two new technologies by any means, but by the way they talk to each other: each element, taken individually, offers an advantage; combined, they make available an energy density and field quality that until recently have been difficult to achieve on compact industrial systems.
Why an average high-power UV laser
UV lasers operate at a wavelength of 355 nm, much shorter than the 1064 nm of conventional fiber lasers. This feature has two key practical consequences for promotional.
The first is that UV light is excellently absorbed by almost all materials, even those that infrared lasers handle poorly: clear plastics, transparent materials, decorative coatings, organic substances. The second is that, for the same optics, a UV laser produces a significantly smaller focused spot, thus a higher energy density per unit area.
Pushing the average power to 20W on a UV source does not mean “marking more,” but more importantly marking faster while keeping the quality of the process intact. On demanding materials such as glass or coatings on drinkware, where you need to ablate a thin layer without damaging the substrate, the available energy is the factor that separates a crisp marking from a smudged or incomplete one.
What changes with a Falcon827 prescan head
In a conventional scanning head, the laser beam passes through the two galvanometer mirrors and then an F-Theta lens, which is responsible for both focusing and coverage of the marking field. The wider the field, the more the quality of focus tends to degrade at the edges: the spot becomes distorted, the lines become less defined, and the marking loses uniformity.
A prescan head introduces active pre-focusing optics before galvanometers. Focus is managed dynamically as a function of position, point by point, during marking. The result is twofold: the useful field is enlarged-in the case of the Falcon827 up to 200×200 mm-without deteriorating optical quality in the center or at the edges, and it becomes possible to handle a virtual third axis, i.e., 3D marking on curved, sloping or different elevation surfaces without having to mechanically move the part.
For the promotional sector this means two very concrete things: you can mark larger objects in a single cycle, and you can deal with complex geometries-the side of a water bottle, the curvature of a goblet, the irregular shape of an accessory-with a quality that does not depend on where the marking falls in the field.
The effect of combination: fluency that makes a difference
When combining the two, the key point is fluence, that is, the amount of energy deposited per unit area in the single pulse. The 20W UV source provides medium power; the short wavelength reduces the spot diameter; the prescan optics keep this spot small and smooth even at the edges of a wide field. The result is a high and consistent energy density over the entire marking area.
It is this figure-not the single power rating-that opens up the most interesting applications for promotion.
Concrete applications
Glass. It is historically one of the most difficult materials to mark cleanly: with traditional sources there is a tendency to generate micro-fractures, uneven matting, and frayed edges. The 20W UV and prescan combination allows it to work with enough fluence to produce white, fine and uniform markings even on bottles, goblets, vases and decorative objects without compromising the structure of the material.
Promotional plastics. On materials such as PMMA, ABS, polycarbonate, and transparent plastics, the increase in power translates into a noticeable increase in speed with the same aesthetic quality. Complex logos, gray scales, color gradients remain sharp even on fast cycles.

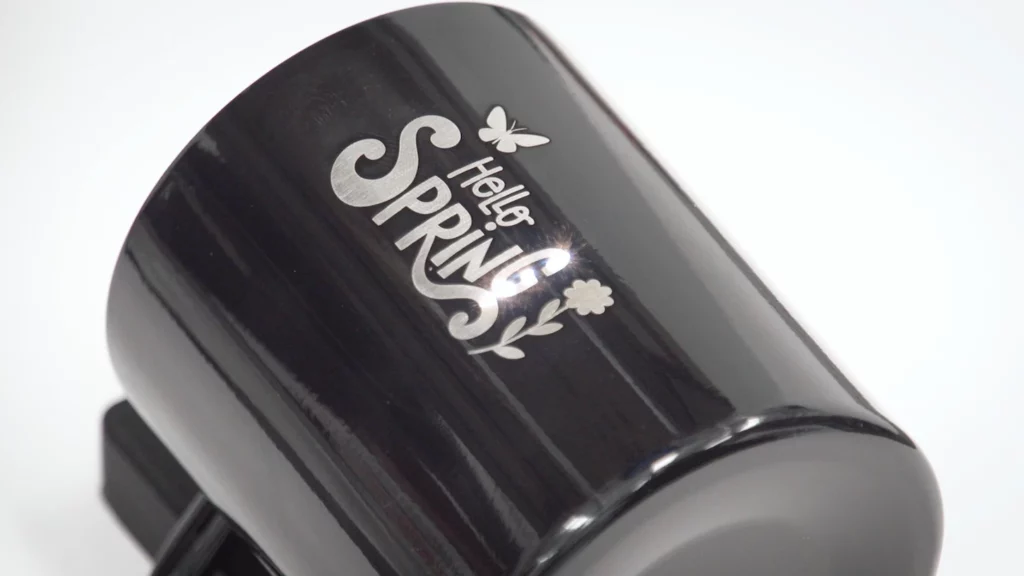

Drinkware with coating. Coated water bottles, thermal cups, tumblers, and thermos flasks represent one of the fastest-growing categories in promotional. Marking means selectively ablating the surface layer to bring out the underlying metal, achieving a clean contrast. The fluence available allows this to be done at high speeds, without edge burning and with uniform rendering even on curved surfaces thanks to 3D prescan management.
Wood. On wood, UV generates extremely defined markings , devoid of the classic burned effect of fiber lasers or COâ‚‚. Small logos, fine text, and graphic details remain legible and neat, even on light or machined woods.
Complex geometries. Thanks to the prescan head, the entire marking can be programmed to follow the shape of the part without using additional mechanical systems, reducing setup time and maintaining the same quality on different parts.
Integration into promotional systems
Modularity is the practical strength of this combination: the same UV 20W + Falcon827 package can be integrated into all LASIT architectures dedicated to promotional, from turntable systems for high-volume production, to dedicated markers for pens, drinkware and accessories, to semi-automatic stations with loaders. This allows the same technology-and thus the same process quality-to be adopted regardless of part format or line layout.
In summary
For those who produce or manage promotional items, the choice of marking technology has a direct impact on the perceived value of the final product. The combination of a 20W UV laser and Falcon827 prescan head offers a balance of aesthetic quality, speed, field width and handling of complex geometries that until recently required compromise. If production requires treating glass, technical plastics, drinkware with coatings, and wood with the same machine and a consistent aesthetic standard, it is one of the most technically sound configurations available today.
