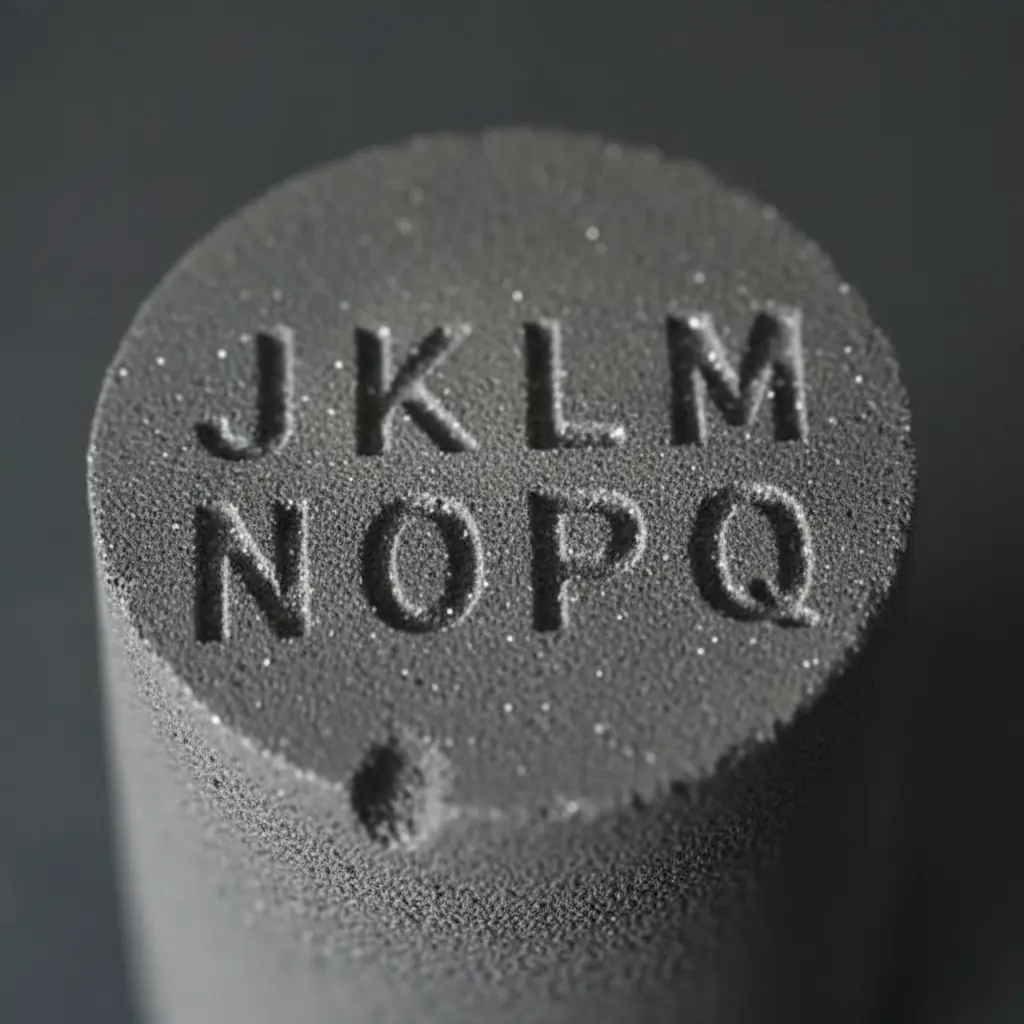

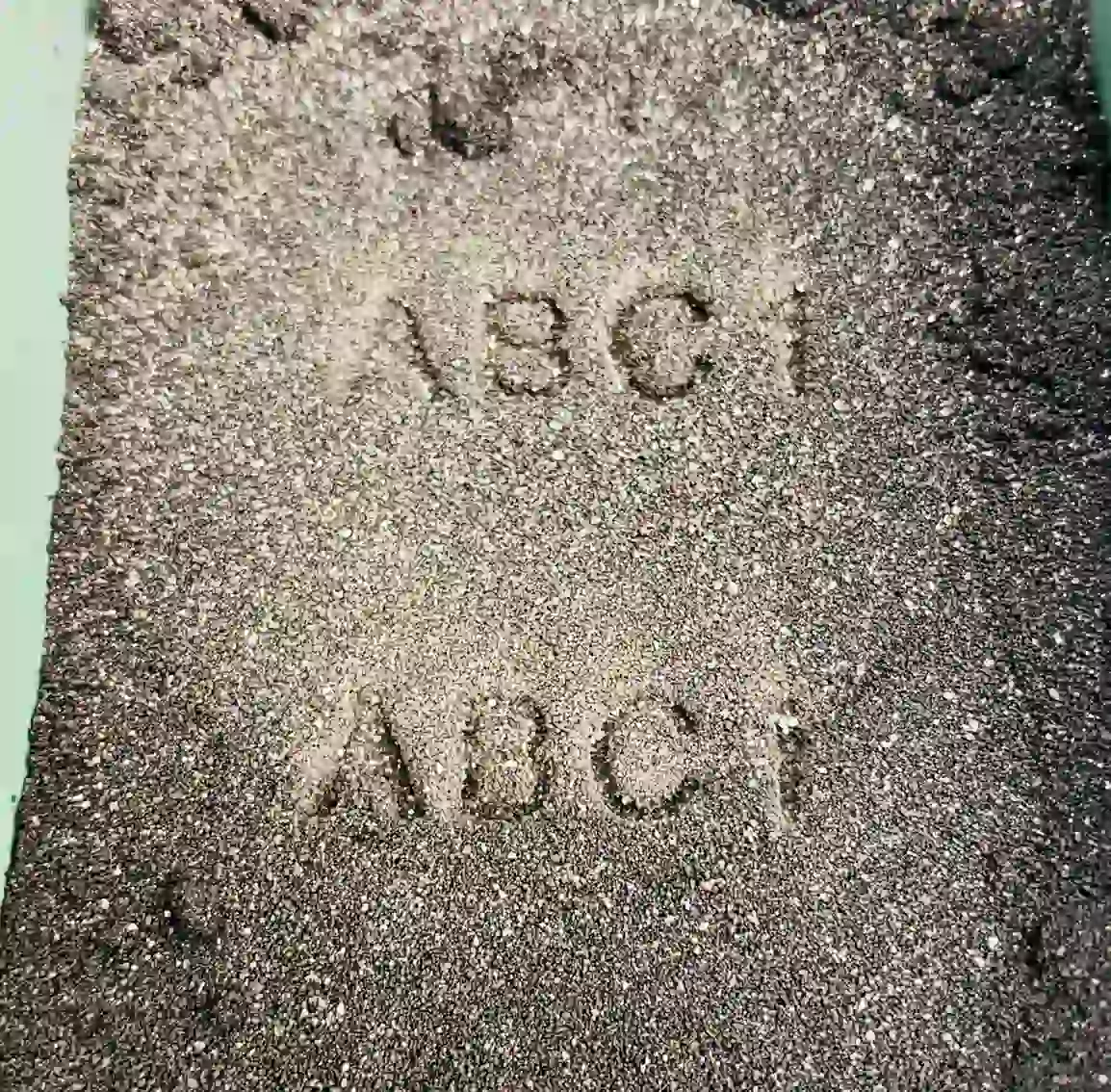

Laser marking on sand molds represents an advanced technological solution for permanent identification of die-cast components. Unlike traditional methods, this technique allows codes, logos and traceability information to be engraved directly on the sand mold, creating reliefs that are then replicated on the cast part during metal casting.

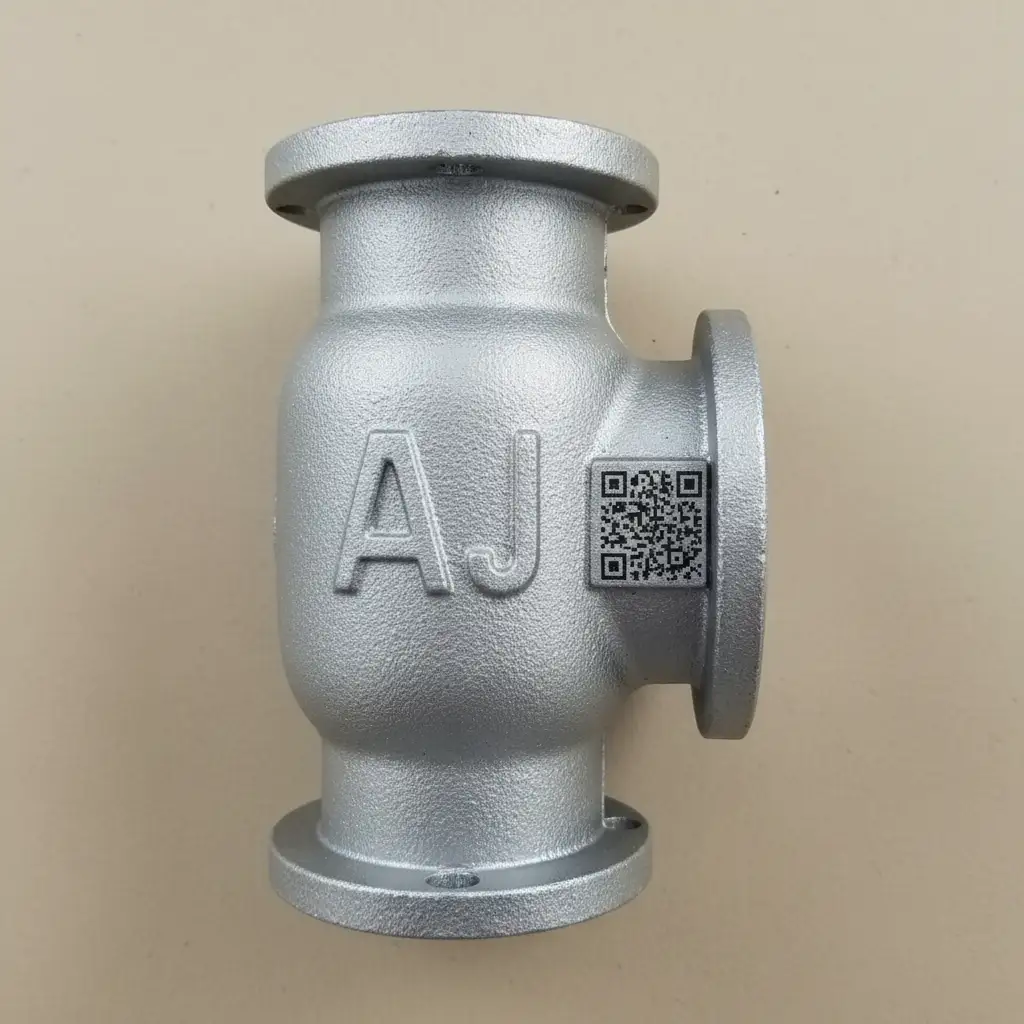

The process is based on a seemingly simple but technically sophisticated principle: the laser etches the mold in the negative, creating a controlled cavity in the sand. When molten metal is poured into the mold, it fills this cavity, forming a positive relief on the surface of the finished part. The result is a permanent, legible marking that meets industry standards for traceability.
The technical operation of sand marking
Laser engraving on sand molds requires the use of high-power laser sources, typically between 100W and 500W. In industrial practice, the most common configurations use lasers from 200W and up, which are necessary to ensure adequate engraving depths and cycle times compatible with the production rates of modern foundries.
The choice of laser power depends on several factors: the composition of the sand used, the depth of engraving required, the process speed needed, and the geometric complexity of the marking. Molds made with fine-grained sands and resin binders require different parameters than coarser sands or greens.

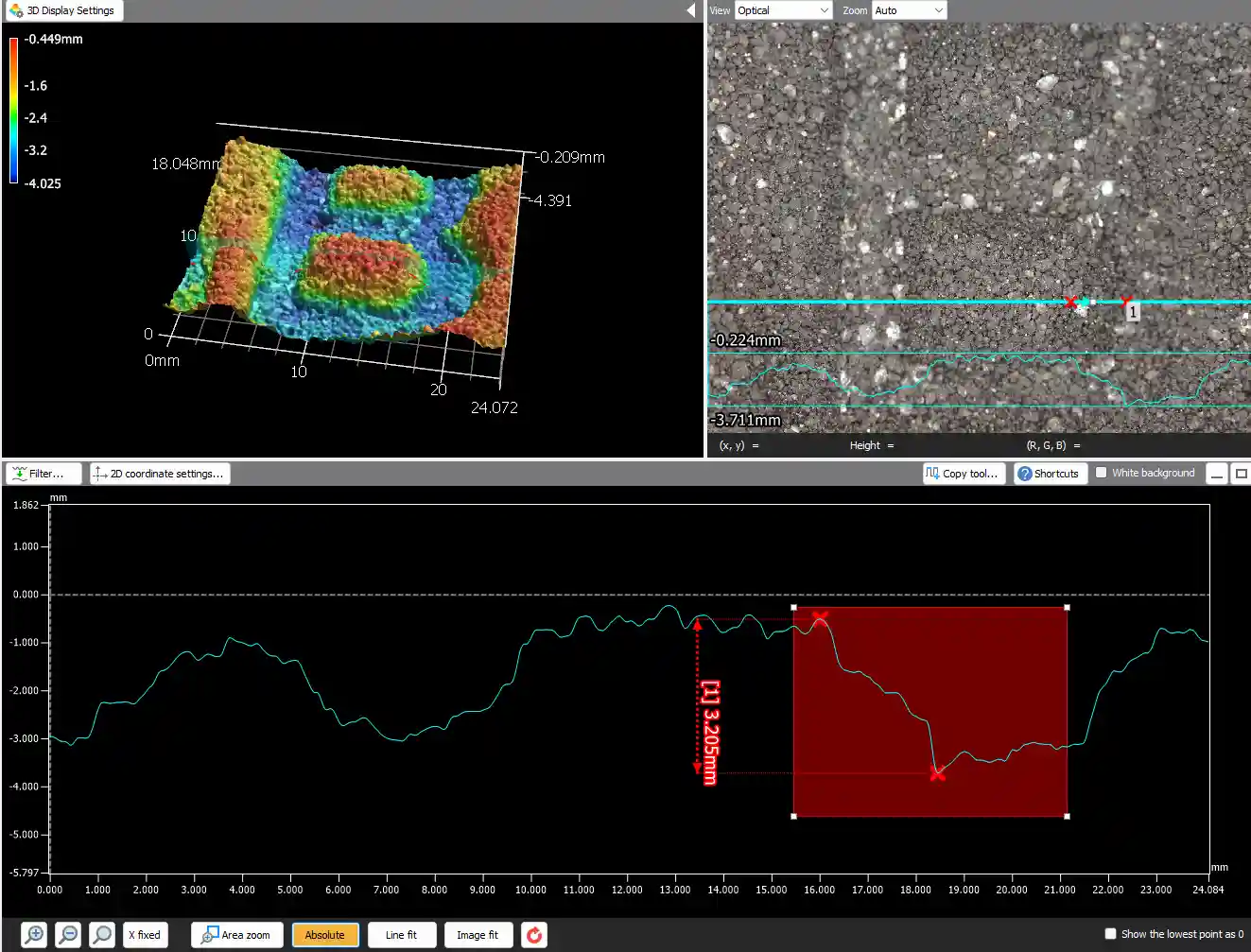

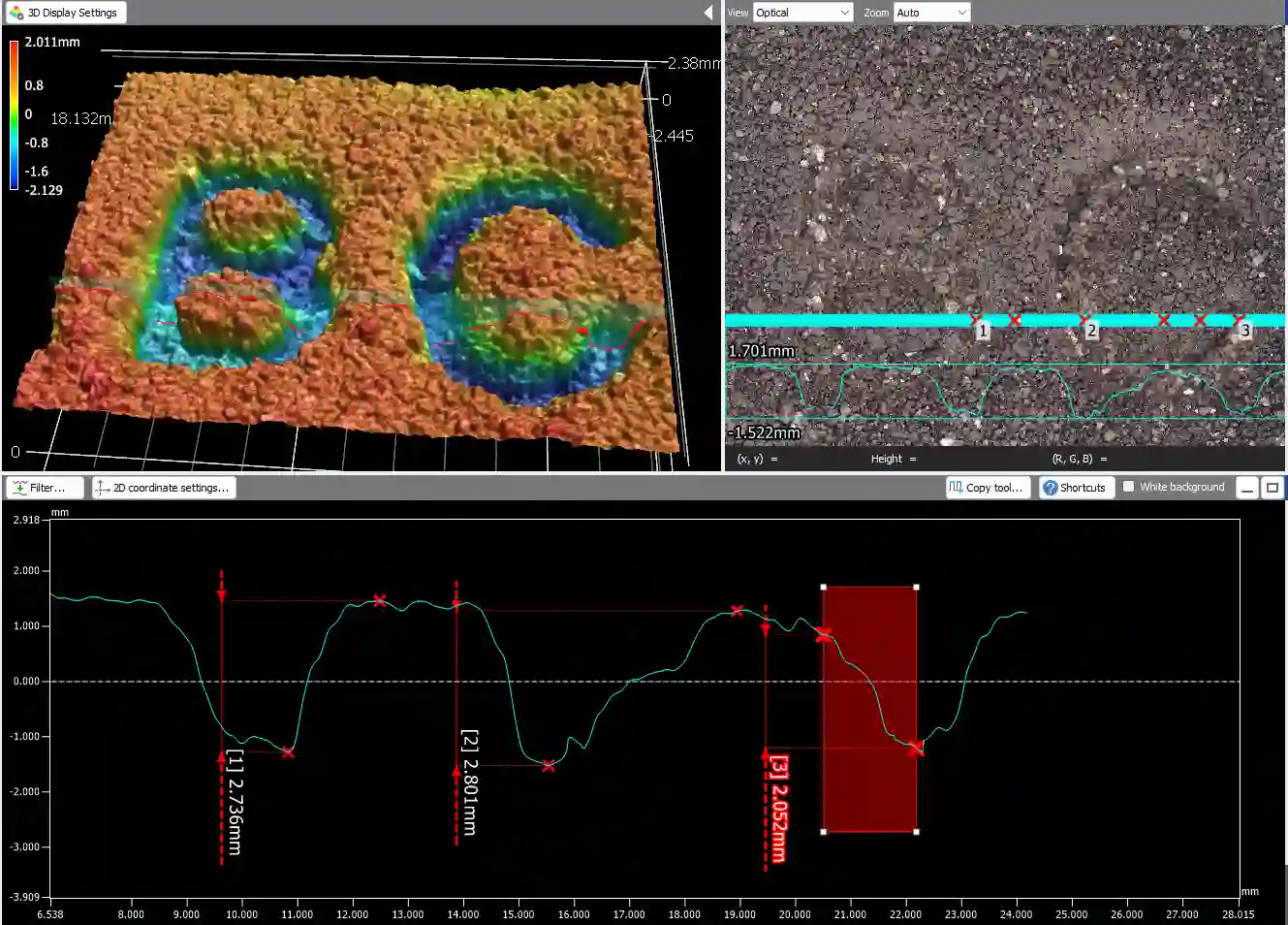

Controlling the depth and shape of the characters is critical. Insufficient depth compromises the readability of the code on the finished part, while excessive etching can locally weaken the mold or create defects in the casting. Modern laser systems allow precise adjustment of these parameters, ensuring repeatability and uniformity throughout production.
Advantages over traditional methods
The adoption of laser marking to replace mechanical inserts or manual engraving brings measurable operational and economic benefits. Metal inserts, still used in many foundries, require specific design, dedicated manufacturing and complex logistical management. Each change to the marking involves making new inserts, with costs and time impacting production flexibility.
Laser marking eliminates these limitations. Each mold can be uniquely marked, without the need to change the mold design or manage an insert stock. This feature is particularly advantageous in manufacturing contexts characterized by small batches, high variability or production to order.
From the perspective of maintenance and operating costs, the laser has significant advantages. It does not use consumables, require abrasive media, or generate processing residues that need to be disposed of. Maintenance is limited to periodic cleaning of the optics and verification of process parameters, with much longer intervals than with mechanical or chemical systems.
Inline integration and automation
One of the most relevant aspects of laser marking on sand molds is its compatibility with automated processes. In modern foundries, mold production takes place on continuous lines at high cadence, and the integration of laser marking stations must take place without slowing down the production flow.
LASIT systems designed for this application can be integrated directly into molding lines, operating in sync with other process steps. Marking typically occurs immediately after mold forming and before bracket assembly or loading into the casting department. Sensors and vision systems ensure correct positioning of the mold and verify the outcome of marking in real time.
Full process automation eliminates manual intervention, reducing the risk of error and improving traceability. Each mold can be marked with a unique code linked to the foundry’s management system, allowing it to be accurately traced back to process parameters, material batch and responsible operator.
Accuracy, repeatability and process quality
The quality of laser marking depends on multiple factors that must be carefully controlled. Sand consistency is one of the critical parameters: variations in grain size, moisture content, or compaction affect how the laser interacts with the material.
For this reason, the most advanced systems incorporate adaptive control algorithms that compensate for any variations in mold characteristics. Distance sensors, cameras and feedback systems help maintain consistent marking quality even in the presence of dimensional tolerances or variability in the forming process.
Repeatability is guaranteed by the very nature of the laser process, which involves no tool wear or mechanical degradation. Once the optimal parameters for a given mold type have been defined, they can be replicated indefinitely with micrometer precision.
Safety and environmental considerations
Laser marking on sand molds does not involve risks related to the use of aggressive chemicals or extensive thermal processes. The interaction between the laser beam and the sand is confined to a small area and does not generate toxic fumes or hazardous emissions, provided the facility is equipped with adequate extraction and filtration systems.
Environmentally, the absence of consumables and processing waste makes the process sustainable and aligned with circular economy principles. No waste is produced that needs to be disposed of separately, and the energy used is concentrated exclusively in the marking phase, with no significant heat loss.
Specific applications and target industries
Laser marking on sand molds finds application primarily in the cast iron and aluminum foundry industry, where traceability of components for automotive, hydraulics, and heavy engineering is required. Typical examples include engine blocks, cylinder heads, structural supports, and transmission components.
In these contexts, marking has not only an identification function, but also meets stringent regulatory requirements. The ability to mark each part with a unique code, readable even after surface treatments and machining, is a key requirement to ensure compliance with industry regulations.
Foundries that adopt laser marking benefit from greater flexibility in job management, being able to respond quickly to requests for customization or changes to traceability codes without significant impacts on setup times or tooling costs.
Conclusions
Laser marking on sand molds has established itself as a mature and reliable technology capable of replacing traditional methods with concrete advantages in terms of flexibility, accuracy and sustainability. Integration into automated lines and the ability to operate at high cadence make this solution particularly suited to the needs of modern foundries, where traceability and quality are essential parameters.
The evolution of laser systems, with increasing powers and increasingly sophisticated controls, continues to expand the application possibilities of this technology, confirming it as one of the most versatile tools for industrial marking in the foundry industry.
